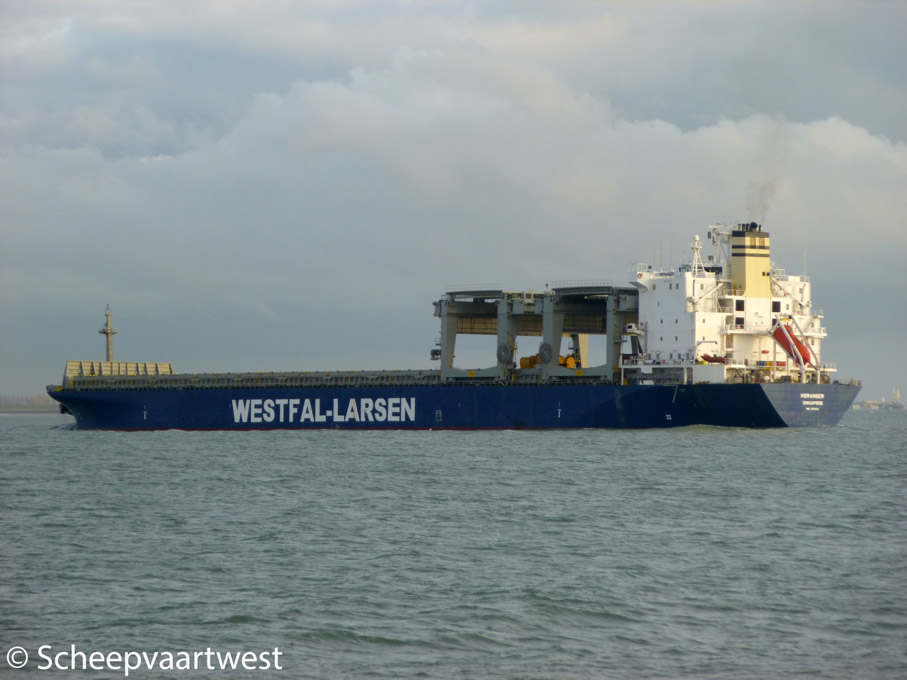

| Westerschelde 08 November 2012 |
|
Name |
HERANGER |
|
Previous names |
1995 - 2008 Star Heranger |
|
Type |
General cargo carrier - Open hatch gantry craned vessel |
|
IMO-number |
9079121 |
|
Call sign |
9VAW7 |
|
Flag |
Republic of Singapore |
|
Previous flags |
1995 - 2003 Norway |
|
Port of registry |
Singapore city |
|
GT |
37.150 t registered |
|
DWT |
Summer: 44.251 t |
|
NT |
14.888 t registered |
|
Number of 20ft containers |
1.928 |
|
Length |
213,40 m overall 203,50 m between perpendiculars |
|
Breadth |
31,03 m extreme |
|
Draught |
12,01 m |
|
Depth |
19,00 m |
|
Speed |
16,10 knots |
|
Built |
1995 |
|
Keel laid |
09.12.1994 |
|
Launch date |
08.03.1995 |
|
Date of completion |
07.06.1995 |
|
Builder |
Daewoo Heavy Industries Ltd. |
|
Yard number |
1086 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 8 |
|
Main engine |
1x B&W 6S60MC diesel engine - 15.600 hp |
|
Boilers |
1x Auxiliary boiler, vertical shell type AQ12 1x Auxiliary boiler, exhaust gas smoke tube AQ2 Builder: Aalborg |
|
Generators |
2x B&W 7L28/32H diesel generatorsets 1x B&W 6L23/30 diesel generatorset |
|
Emergency generator |
1x MAN D 2866 TE diesel generatorset |
|
Thruster |
Bow thruster: 2.000 bhp Stern thruster: 1.000 bhp |
|
Number of holds |
11 |
|
Hold capacity |
Hold 1: 3.958,3 m³ / 139.787 ft³ Hold 2: 5.397,8 m³ / 190.623 ft³ Hold 3 : 6.256,7 m³ / 220,955 ft³ Hold 4: 6.256,7 m³ / 220,955 ft³ Hold 5: 6.256,7 m³ / 220,955 ft³ Hold 6: 6.256,7 m³ / 220,955 ft³ Hold 7: 6.256,7 m³ / 220,955 ft³ Hold 8: 6.256,7 m³ / 220,955 ft³ Hold 9: 6.256,7 m³ / 220,955 ft³ Hold 10: 5.702,4 m³ / 201.380 ft³ Hold 11: 4.871,0 m³ / 172,019 ft³ Hold 12: 2.904,7 m³ / 102.579 ft³ Total: 66.631,1 m³ / 2.353.073 ft³ |
|
Hatchways |
1x Hatch with dimension 12,30 x 16,95 m |
|
Ballast capacity |
20.898 m³ |
|
Anchor equipment |
Length: 660 m Diameter: 78 mm |
|
Cargo gear |
2x Cranes - SWL each 40 t |
|
Manager |
Masterbulk Pte Ltd |
|
Previous manager |
1995 - 2002 Westfal-Larsen Management AS |
|
Operator |
Westfal-Larsen |
|
Registered owner |
Masterbulk Pte Ltd |
|
Last update |
29.04.2013 |
