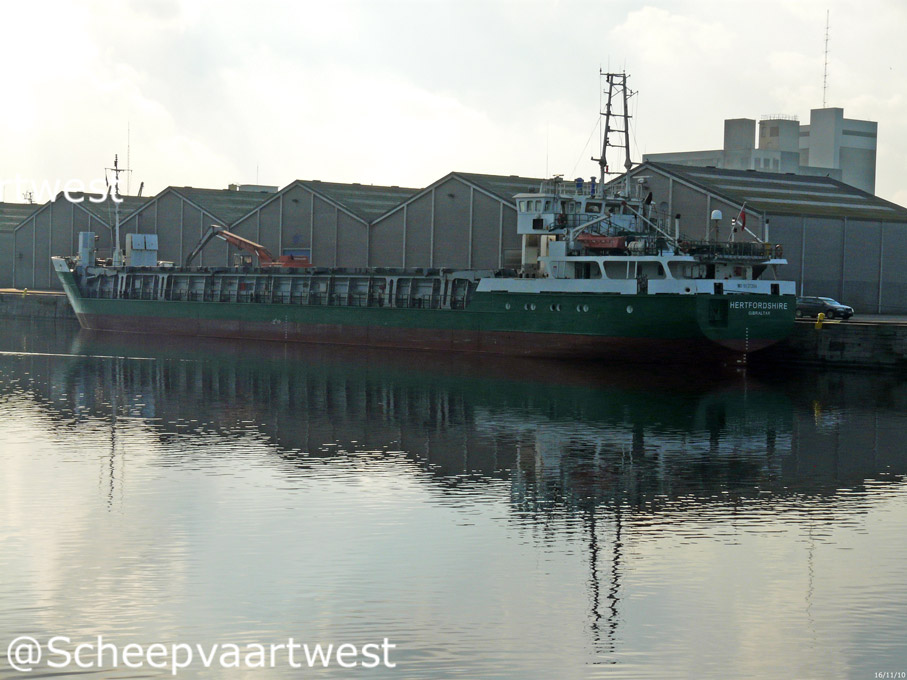

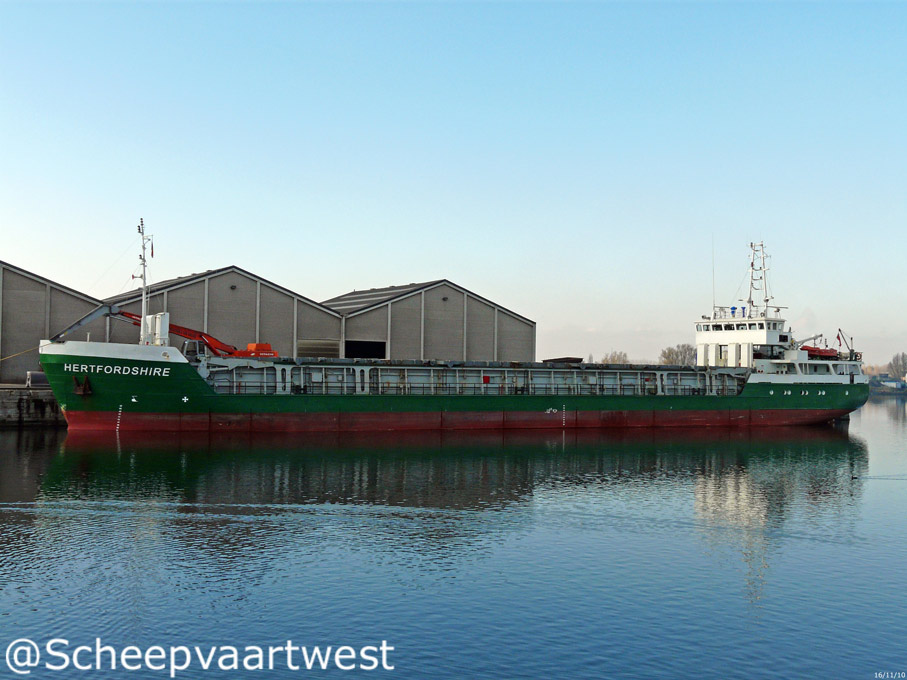

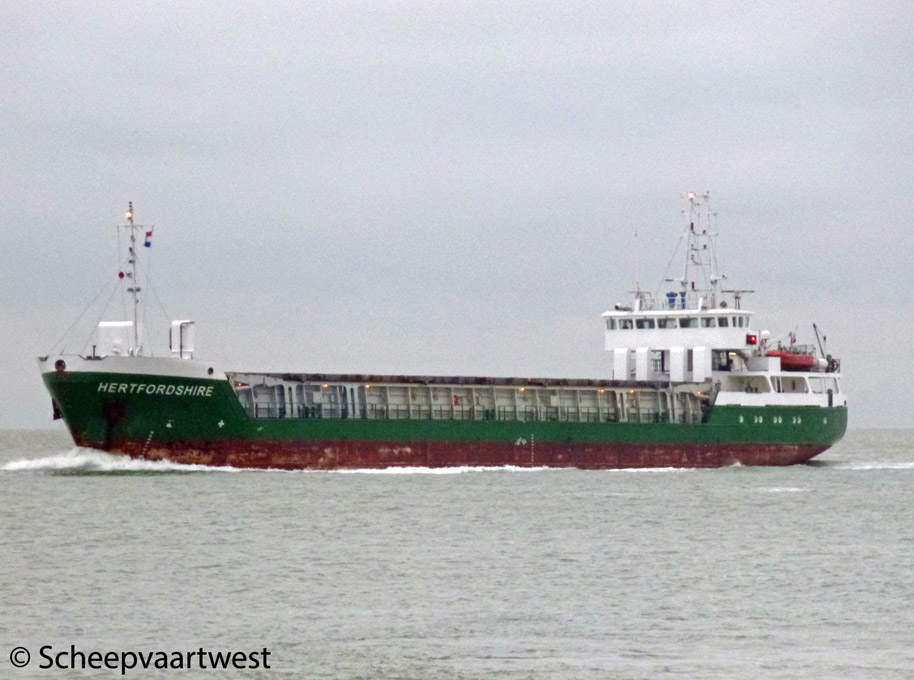

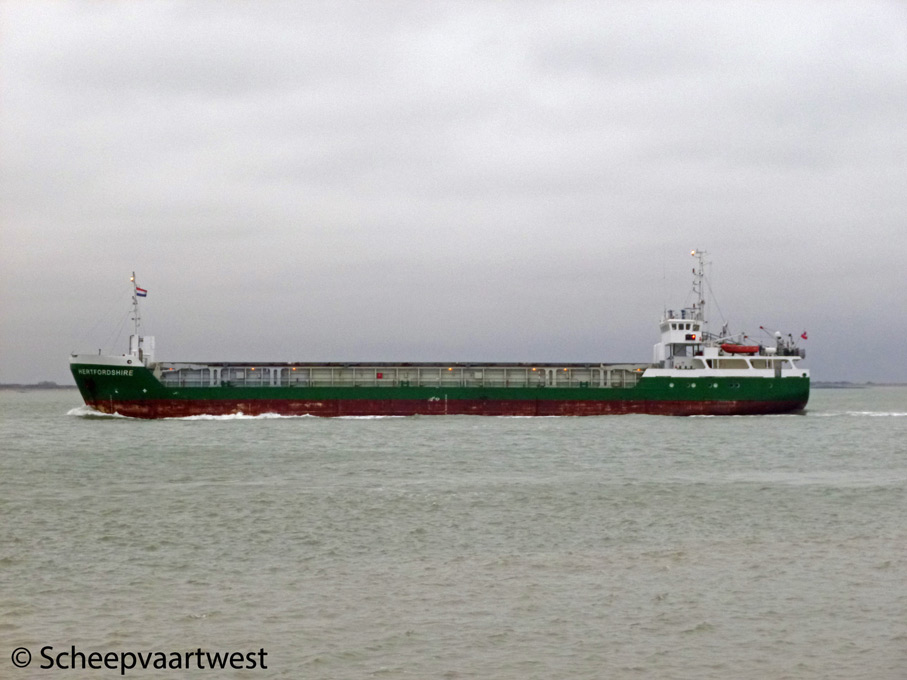

Hertfordshire - IMO 9137284

Name

HERTFORDSHIRE

Previous name

1995 Mira
1996 Atair
1998 RMS Atair
2006 Atair

Type

General cargo

IMO-number

9137284

Call sign

ZDJS5

Flag

Gibraltar

Port of registry

Gibraltar

GT

1.864 t

DWT

2.489 t

NT

938 t

Number of 20ft containers

105

Length

82,38 m overall

79,82 m registered

Breadth

11,35m registered

Draught

Summer: 4,798 m

Forecastle

6,62 m

Poop

15,60 m

Air draft

13,30 m / 23,40 m

Depth

Main deck: 6,10 m moulded

Speed

12,0 knots

Built

1995

Keel laid

22.12.1994

Launch date

25.08.1995

Date of completion

26.11.1995

Builder

Slovenske Lodenice a.s.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

1501

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Deutz SBV 8 M 628 - 4 stroke single acting 8 cylinder 240 x 280 mm diesel engine - 1.350 kW at 800 rpm

Year of manufacture: 1994

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propeller

1x Solid propeller - aft at 256 rpm

Boiler

1x Water heater, oil fired - 4,0 bar

Year of manufacture: 1995

Electric installations

1x Plant 380/220 V - 85 kVA

1x Plant 380/ 220 V - 85 kVA

1x Plant 380 V - 85 kVA

Generators

2x Main diesel generatorsets each 85 kVA

Emergency generator

1x Diesel generatorset 85 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x OMEGA jet K4 - 255 kW, forward

Hold

53,40 x 9,00 x 7,59 m

Hatch

53,40 x 9,00 m

Hatch covers

Kvaerner brug, folding type

Cargo capacity

3.485,5 m³ / 123.091,0 ft³

Tank capacities

Fuel oil: 172 m³

Water ballast: 1.059 m³

Anchor equipment

3x Anchors weight each 1.290 kg

Chain length: 385,00 m

Gear

Gearless

Crew

6

Manager

Vaage Ship Management AS
Fjoesangerveien 70a
5068 Bergen
Norway

Operator

Bibby Line
Liverpool
United Kingdom

Owner

Bibby Gas Carrier Ltd.
105 Duke Street
Liverpool, L1 5JQ
United Kingdom

Special annotation

Wheelhouse hydraulic lowering

Last update

04.02.2013
