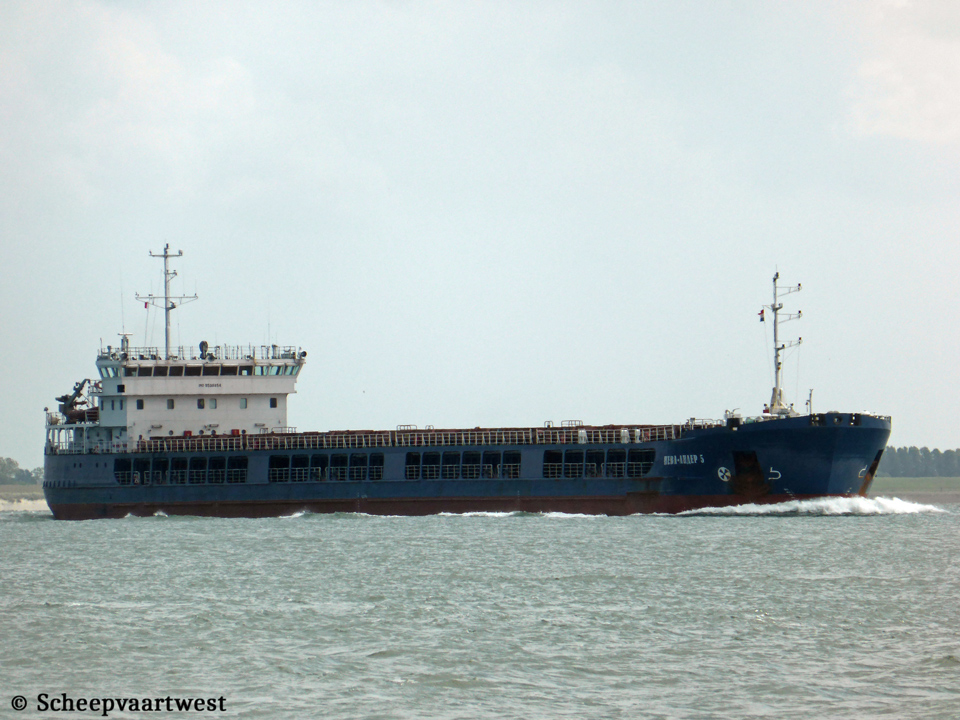

| Westerschelde 01 June 2015 |
|
Name |
NEVA-LEADER 5 |
|
Type |
General cargo vessel |
|
IMO-number |
9598854 |
|
Call sign |
UBFK7 |
|
Flag |
Russia |
|
Port of registry |
Bolshoy port of St.-Petersburg |
|
GT |
5.686 t |
|
DWT |
7.154 t |
|
NT |
3.321 t |
|
Displacement |
9.912 t |
|
Length |
139,95 m overall 135,74 m between perpendiculars |
|
Breadth |
16,70 m |
|
Draught |
Summer: 4,70 m |
|
Depth |
6,00 m |
|
Speed |
11,5 knots |
|
Built |
2012 |
|
Keel laid |
20/12/2011 |
|
Launch date |
02/07/2013 |
|
Date of completion |
17/09/2013 |
|
Builder |
Nevsky Shipbuilding & Shiprepair Plant Shlisselburg Russia |
|
Yard number |
405 |
|
Hull material |
Steel |
|
Bulkheads |
6 |
|
Number of decks |
2 |
|
Main engine |
2x Wärtsilä W6L20 - 6 cylinder combustion engines each 1.200 kW Build: 2011 Builder: Wärtsilä Finland Oy |
|
Propellers |
2x Controllabe pitched propeller 4 blades |
|
Generators |
2x Generatorsets each 292 kW 1x Generatorset 90 kW |
|
Bow thruster |
1x 200 kW |
|
Number of holds |
3 Hold 1: 26,0 х 12,7 х 8,37 m Hold 2: 52,0 х 12,7 х 8,37 m Hold 3: 27,3 х 12,7 х 8,37 m |
|
Cargo hold capacity |
Hold 1: 2.688 m³ Hold 2: 5.489 m³ Hold 3: 2.853 m³ |
|
Number of hatches |
3 Hatch 1: 21,40 x 12,70 m Hatch 2: 50,00 x 12,70 m Hatch 3: 23,40 x 12,70 m |
|
Tank capacities |
Ballast: 3.959 m³ Fuel: 384 m³ |
|
Crew |
12 |
|
Manager |
North-Western Fleet ul Bolshaya Morskaya 37 St Petersburg 190000, Russia |
|
Registered owner |
Volga Shipping Joint Stock 5A Markin square, Nizhny Novgorod Russia, 603001 |
|
Latest data adjustment |
10 October 2023 |
