| Westerschelde 13 May 2020 |
|
Name |

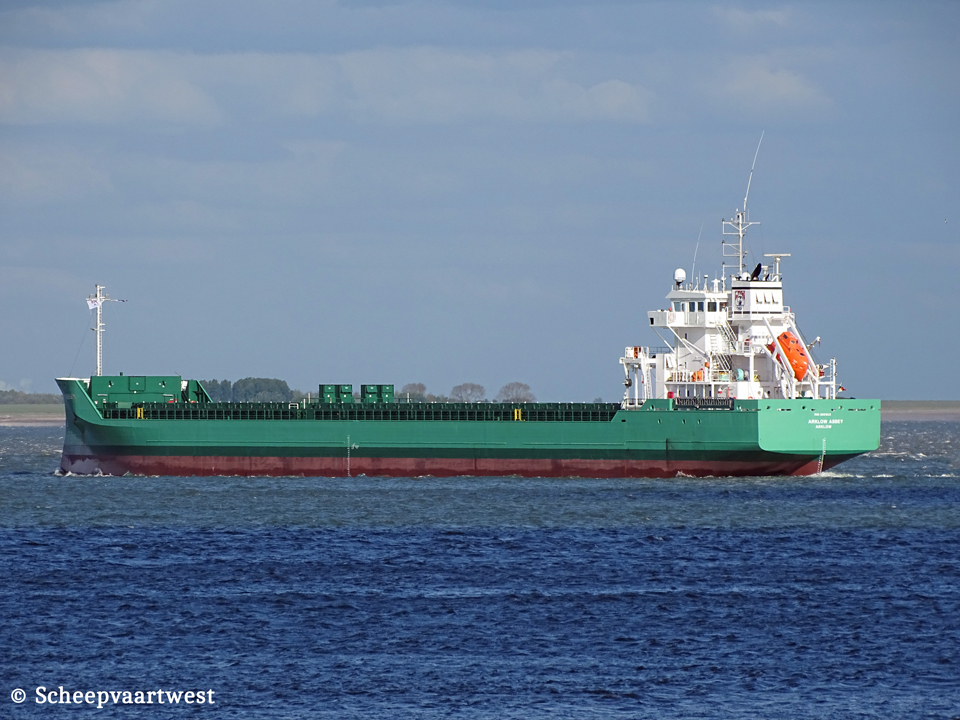

ARKLOW ABBEY |
|
Type |
Multi-purpose dry cargo vessel - Heavy cargo |
|
IMO-number |
9851933 |
|
Call sign |
EIVV4 |
|
Flag |
Ireland |
|
Port of registry |
Arklow |
|
GT |
5.078 t |
|
DWT |
Summer: 8.543 m Winter: 8.156 t |
|
NT |
2.704 t |
|
Length |
120,45 m overall 116,89 m between perpendiculars |
|
Breadth |
14,99 m moulded |
|
Draught |
Summer: 7,19 m Winter: 7,04 m Ballast: 4,30 m |
|
Air draft |
Min: 23,28 m |
|
Freeboard |
2.524 mm |
|
Depth |
9,70 m |
|
Speed |
Service: 12,0 konts Max: 15,4 knots |
|
Built |
2019 |
|
Launch date |
18/07/2019 |
|
Date of completion |
30/09/2019 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
437 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25C - 4 stroke 6 cylinder 255 x 400 mm combustion engine 2.000 kW / 2.717 hp at 750 rpm Build: 2019 Builder: Caterpillar Motoren Gmbh & Co. KG |
|
Propelling system |
1x Screw Propeller controllable pitch - aft at 135 rpm |
|
Generators |
2x Main diesel generatorsets each 250 kVA - 200 kW - 299 hp |
|
Emergency generator |
1x Diesel generatorset 113 kVA - 90 kW - 122 hp |
|
Number of holds |
2 Hold 1: 37,20 x 12,33 x 9,65 m Hold 2: 49;50 x 12,33 x 9,65 m |
|
Cargo hold capacity |
Bale / grain: Hold 1: 4.034,9 m³ / 142.494 ft³ Hold 2: 5.967,5 m³ / 207.222 ft³ Total: 9.902,4 m³ / 349.76 ft³ |
|
Hold ventilation |
6x Mechanical changes per hour in empty holds |
|
Hatch type |
Pontoon style |
|
Max permitted loads |
On hatches: 1,75 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Fuel: 271,1 m³ |
|
Manager |
Arklow Shipping Arklow Ireland |
|
Registered owner |
Abbey Shipping Ltd Ireland |
|
Latest data adjustment |
04 July 2023 |
