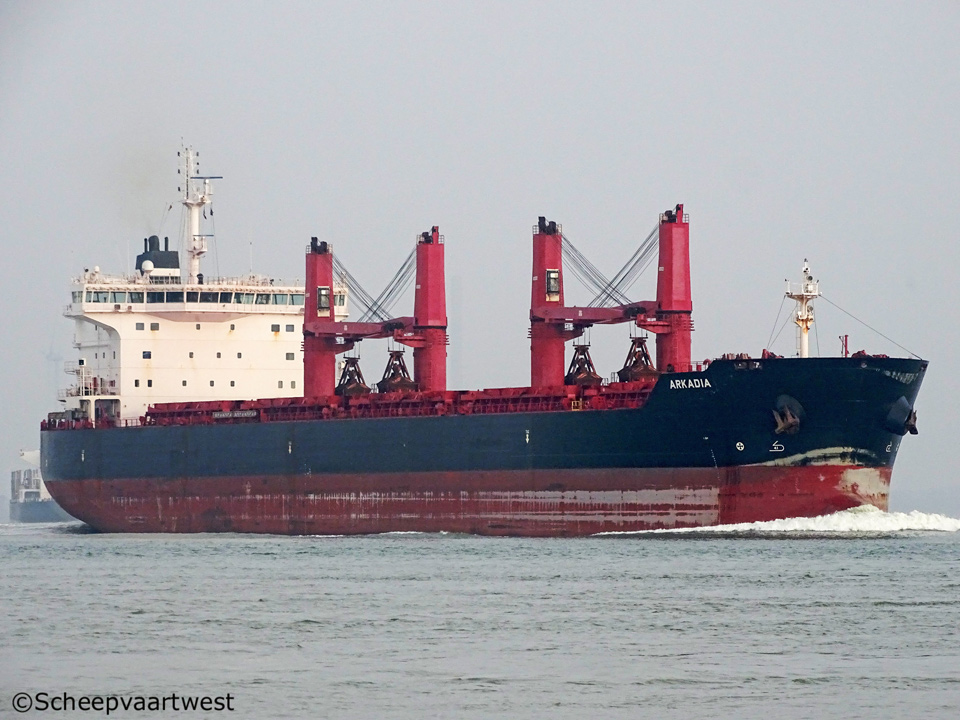

Arkadia 01

Westerschelde 08 November 2017



Name

ARKADIA

Type

Bulk carrier

IMO-number

9590797

Call sign

OJPB

Flag

Finland

Port of registry

Helsinki

GT

33.958 t

DWT

Summer: 56.348 t

NT

18.958 t

Length

197,08 m overall

189,04 m between perpendiculars

Breadth

32,60 m extreme

32,26 m moulded

Draft

Summer: 13,02 m

Air draft

52,50 m from keel

Depth

18,50 m moulded

Speed

14,0 knots

Built

2012

Keel laid

15/06/2011

Launch date

15/09/2011

Date of completion

05/01/2012

Builder

Hyundai Vinashin Shipyard Co., Ltd.
Ninh Phuoc
Vietham

Yard number

S042

Hull material

Steel

Hull type

Double side with top wing

Main engine

1x Hyundai/MAN- B&W 7S50MC-C - 2 stroke 7 cylinder combustion engine 11.620 kW at 127,0 rpm

Propellers

1x Controllable pitch propeller

Manufacturer: Rolls-Royce AB, Kristinehamn - Sweden

Boilers

1x Saacke auxiliary boiler, composite CMB-VS-1.3-1.2/7

Generators

3x Hyundai 5H21/32 main diesel generatorsets each 960 kW

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Bow thruster

1x 800 kW, forward

1x 800 kW, aft

Number of holds

5x Double skin cargo holds

Hold 1: 29,40 x 29,66 x 18,90 m

Hold 2: 30,24 x 29,66 x 18,90 m

Hold 3: 30,24 x 29,66 x 18,90 m

Hold 4: 30,24 x 29,66 x 18,90 m

Hold 5: 30,24 x 29,66 x 18,90 m

Hold capacity

Hold 1: 12.032 m³ / 424.895 ft³

Hold 2: 14.737 m³ / 520.435 ft³

Hold 3: 14.209 m³ / 501.793 ft³

Hold 4: 14.758 m³ / 521.159 ft³

Hold 5: 14/319 m³ / 505.681 ft³

Total: 70.054,90 m³ / 2.473.963 ft³

Number of hatches

5

Hatch type

Electro hydraulic hatches folding type

Tank capacities

Ballast: 33.437,7 m³

Anchor equipment

Length: 660,00 m

Diameter: 76 mm

Cargo gear

4x Electro-hydraulic MacGregor K 2530-4 cargo cranes - SWL 27,5 t and SWL 25,0 t with 12,5 m³ grab

Grab reach 30 meters, outreach 14 m

Self-discharging capacity of coal 2.000 t/h

Manager

ESL Shipping Oy
Lintulahdenkuja 10
00500 Helsinki
Finland

Registered owner

ESL Shipping Oy

Latest data adjustment

19 may 2018
