| Westerschelde 14 August 2016 |
 |
|
| Westerschelde 14/08/16 | |
|
Name |

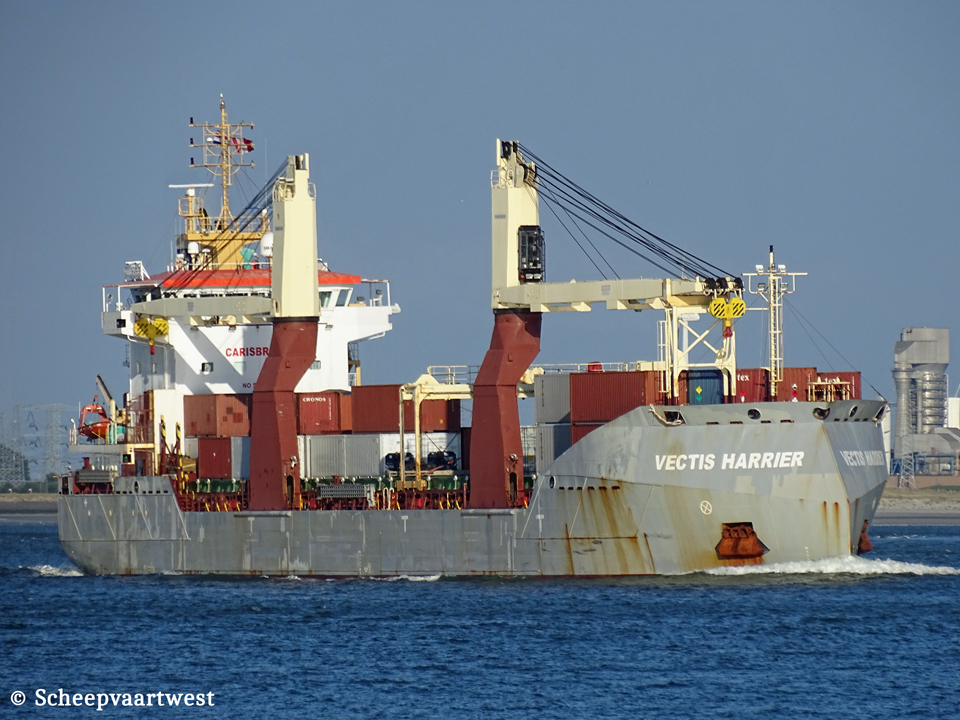

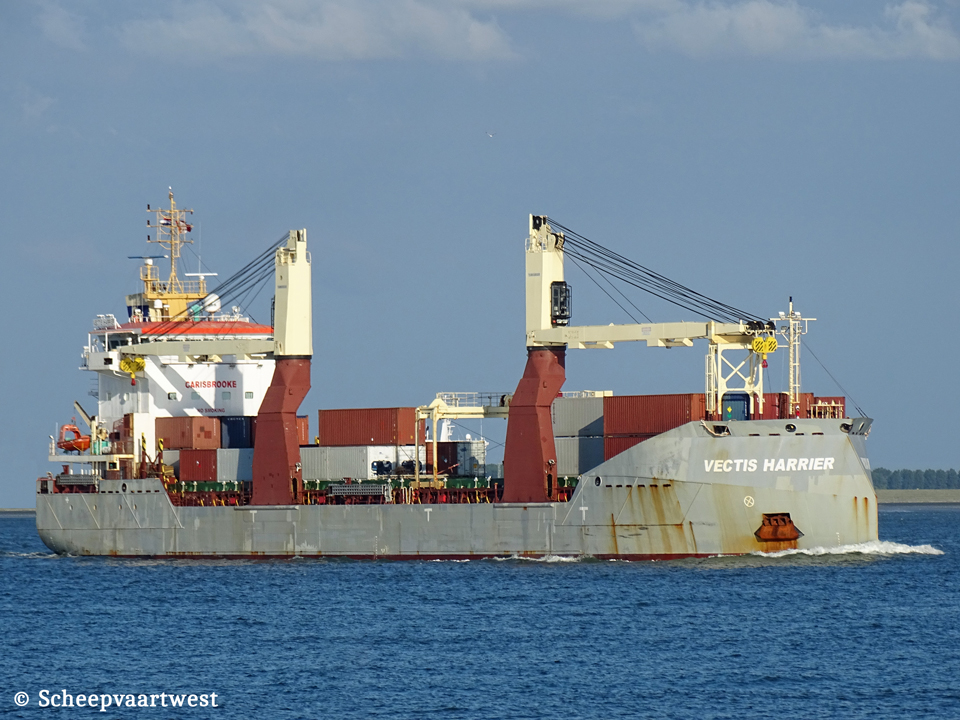

VECTIS HARRIER |
|
Type |
Multi-purpose low emission dry cargo ship - heavycargo - equipped for carriage of containers |
|
IMO-number |
9594303 |
|
Call sign |
2FBR6 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
6.190 t |
|
DWT |
8.589,69 t |
|
NT |
2.574 t Panama: 5.278 t Suez: 5.473 t |
|
Number of 20ft containers |
In hold: 204 On deck: 173 Total: 377 |
|
Length |
109,95 m overall 105,90 m between perpendiculars |
|
Breadth |
17,40 m moulded |
|
Draught |
7,93 m |
|
Air draft |
32,65 m in ballast |
|
Freeboard |
3.410 mm |
|
Depth |
11,40 m to main deck |
|
Speed |
Service: 12,4 knots |
|
Built |
2012 |
|
Keel laid |
12/12/2011 |
|
Launch date |
07/02/2012 |
|
Date of completion |
07/05/2012 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co Ltd. China |
|
Yard number |
YZJ2010-939 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
4x Grain bulkheads, consisting of 8 tweendeck panels |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32C - 4 stroke 6 cylinder 320 x 480 mm combustion engine 2.400 kW / 3.261 hp at 550 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller Diameter: 2.290 mm |
|
Boilers |
2x CHR 1393.002-01 - 86,30 m² / 10,0 bar 2x CHO E-00334-1-B - 17;50 m² / 10,0 bar |
|
Shaft generator |
1xAEM SE 400 S4 - 525 kVA at 1.500 rpm |
|
Generators |
2x CAT C-18 Acert DITA main diesel generatorsets each 500 kVA - 400 ekW - 595 hp at 1.500 rpm |
|
Emergency generator |
1x CAT C-18 Acert DITA diesel generatorset 344 kVA - 275 ekW - 409 hp at 1.500 rpm |
|
Bow thruster |
1x 400 kW Diameter: 1.300 mm |
|
Number of holds |
1 70,00 x 13,80 x 11,30 m |
|
Cargo hold capacity |
10.688 m³ / 376.630 ft³ |
|
Tweendeck |
12x Panels, covering complete hold 70,00 x 13,80/8,28 m |
|
Cargo hold ventilation |
12x Air changes per hour |
|
Max permitted loads |
Tanktop: 18,0 t/m² Weather deck hatches: 2,5 t/m² Tweeddeck load: 3,5 t/m² |
|
Tank capacities |
HFO: 277 m³ Gas oil: 227 m³ Ballast: 3.721 m³ Fresh water: 46 m³ |
|
Cargo gear |
2x Deck cranes - SWL 80,0 t each |
|
Crew size |
15 |
|
Manager |
Carisbrooke Shipping UK Cowes Isle Of Wight United Kingdom |
|
Registered owner |
Carisbrooke Shipping UK Cowes 38 Medina Road, Cowes Isle Of Wight United Kingdom |
|
Renamed |
2022 UAL Harrier United Kingdom, Isle of Man, Douglas - Call sign: 2FBR6 Owner: Super Greenship BV Manager: Carisbrooke Shipping Ltd. |
|
Latest data adjustment |
10 June 2023 |
