Vectis Pride 01

Antwerpen 27 January 2017



Name

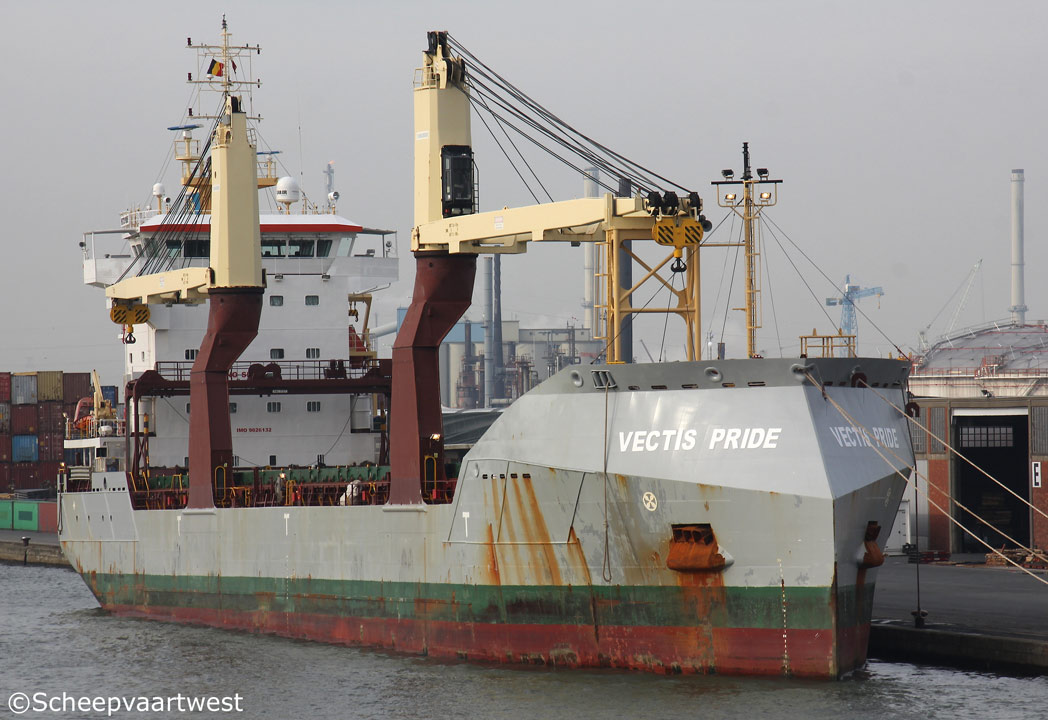

VECTIS PRIDE

Type

Multi-purpose low emission dry cargo ship - Heavycargo - Equipped for carriage of containers

IMO-number

9626132

Call sign

2FVR8

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

7.227 t

DWT

Summer: 10.252 t

NT

3.124 t

Panama: 6.145 t

Suez: 6.749 t

Number of 20ft containers

In hold: 244

On hatches: 250

Total 494

Length

123,96 m overall

121,70 m between perpendiculars

Breadth

17,40 m

Draught

8,00 m

Air draft

Approx 33,00 m

Freeboard

3.411 mm

Depth

11,40 m to main deck

Speed

Service: 12,3 knots

Max.: 15,0 knots

Built

2012

Keel laid

05.12.2011

Launch date

16.05.2012

Date of completion

22.08.2012

Builder

Jiangsu Yangzijiang Shipbuilding Co Ltd.
Jiangyin JS
China

Yard number

YZJ2011-997

Hull material

Steel

Hull type

Single hull

Grain bulkheads

6x Grain bulkheads, consisting of 12 tweendeck panels

Continuous decks

1

Main engine

1x MaK 6M32C - 4 stroke 6 cylinder 320 x 410 mm diesel engine 4.079 bhp / 3.000 kW at 600 rpm

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Screw propeller controllable pitch in nozzle - aft at 112 rpm

Diameter: 4,29 m

Boilers

1x CHO 190412 17,50 m² - 15,0 bar
1x CHR 86,70 m² - 15,0 bar

Shaft generator

AEM SE 400S4 - 525 kVA at 1.500 rpm

Generators

1x Caterpillar C-18 Acent Dita diesel generatorset 400 kW at 1.500 rpm

Emergency generator

1x Caterpillar C-18 Acent Dita diesel generatorset 275 kW at 1.500 rpm

Bow thruster

1x 400 kW

Diameter: 1.300 mm

Number of holds

2

Hold 1: 25,20 x 13,80 / 8,28 m x 11,30 m

Hold 2: 63,70 x 13,80 x 11,30 / 5,30 m

Cargo hold capacity

Hold 1: 3.234 m³

Hold 2: 9.420 m³

Grain: 12.655 m³ / 446.900 ft³ excl. tweendeck

Hold ventilation

12 Air changes per hour

Hatches

63,70 x 13,80 m + 13,80/8,28 m

Tweendeck

15 panels, covering complete hold (57,40 x 13,80 + 25,20 x 13,80 / 8,28 m

Clear height above / below tweendeck 5,31 / 5,33 m

Max. permitted loads

Weather deck hatches: 2,5 t/m²

Tweendeck load: 3,5 t/m²

Tanktop: 18,0 t/m²

Tank capacities

Heavy fuel oil: 252 m³

Gas oil: 222 m³

ballast water: 4.324 m³

Fresh water: 69 m³

Cargo gear

2x Deck cranes at starboard- SWL 80,0 t each

Crew size

15

Manager

Carisbrooke Shipping Ltd.
38 Medina Rd.

Cowes

Isle of Wight
United Kingdom

Owner

Carisbrooke Shipping Ltd.
38 Medina Rd.

Cowes

Isle of Wight
United Kingdom

Registered owner

Carisbrooke Shipping 10,000 B.V.

Latest data adjustment

15 February 2017
