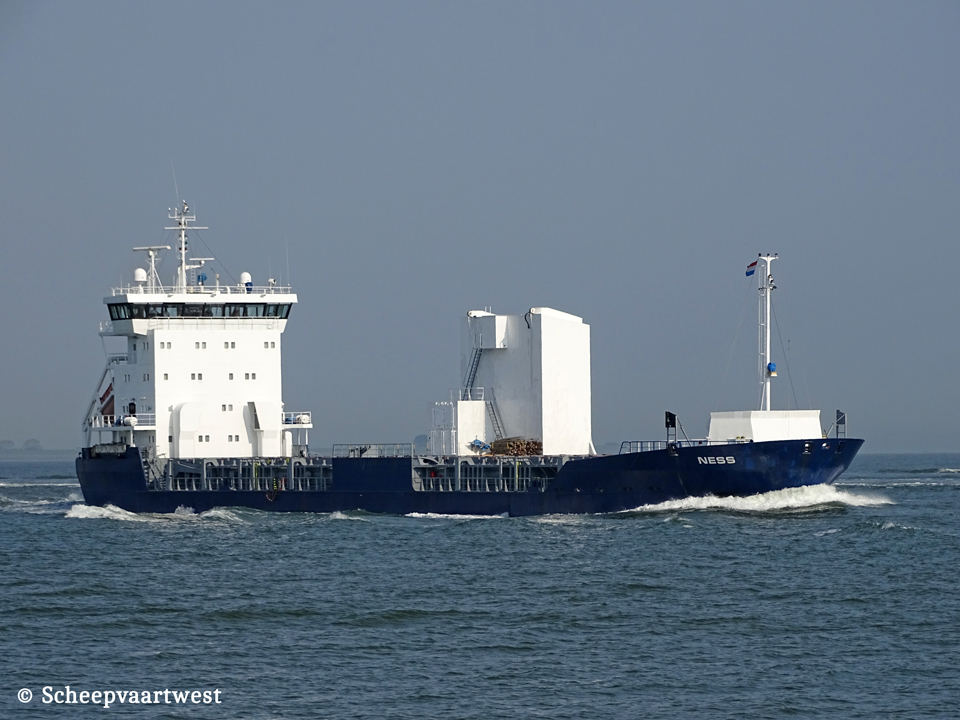

Ness - IMO 9123570

Name

NESS

Previous names

1996 - 2008 Ness

2008 - 2009 Lehmann Lifter

Type

General cargo vessel - Equipped for carriage of containers

Main products

Aluminium products

Paper

Pulp

Forest products

Pallets/big bags/bales

IMO-number

9123570

Call sign

OJTS

Flag

Finland

Port of registry

Mariehamn

Previous flags

1996 - 2008 Germany, Hamburg

2008 - 2009 Gibraltar - Call sign: ZDIP6

2009 - 2021 Barbados, Bridgetown - Call sign: 8PQM

GT

3.998 t

DWT

5.140 t

DWCC

4.900 t

NT

1.685 t

Number of 20ft containers

In hold: 96

On deck: 150

Total: 246

Number of 40ft containers

162

Length

100,15 m overall

93,05 m between perpendiculars

Breadth

15,30 m

Draught

Summer: 6,50 m

Keel to mast end

29,80 m

Air draft

37,40 m

Depth

8,50 m moulded

Speed

Max: 14,6 knots

Service: 11,6 knots

Built

1996

Builder

Nordsovaerftet A/S

Ringkobing Yard

Denmark

Yard number

225

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

1x MaK 9M453C - 4 stroke single acting 9 cylinder 320 x 420 mm combustion engine Mcr 3.300 kW / 4.484 hp at 600 rpm

Build: 23/01/1996

Builder: Krupp MaK Maschinenbau GmbH, Kiel -Germany

Propellers

1x Controllable pitch propeller - aft at 185 rpm

Shaft generator

1x 850 kW / 380 Volt 50 Hz

Generators

3x Cummins KTA-19-M - 4 stroke 6 cylinder 159 x 159 mm diesel engines Mcr 447 kW connected with generators each 400 kW / 220/380 Volt 50 Hz

Emergency generator

1x Diesel generatorset 92 kVA - 74 kW - 106 hp

Bow thruster

1x Controllable thruster 350 kW / 476 hp

Number of holds

2

26,50 x 10,50 x 9,20 m each

Cargo hold capacity

Grain: 5.981 m³ / 211.200 ft³

Bale: 5.947 m³ / 211.000 ft³

Number of hatches

2

26,50 x 11,20 m each

Max permitted loads

Weather deck: 1,37 t/m²

Tanktop: 12,5 t/m²

Side loading equipment

Macgregor-Navire

• 2x Lifts (EA 12 t SWL), 24 M/S, IN/OUT 12 S, platform Dim.: 1,60 X 3,20 m

• Sideloading arrangement door (35t) Dim.: 8,10 x 4,00 m, opening height 13,0 m x 8,80 m

• Max pier height: 15,00 m

• Lowest working height for swinging Platforms: 7,00 m

Tank capacities

Ballast: 1.885 m³

Fuel: 414,5 m³

Crew size

11

ISM manager

Norwest Ship managemant AS

Akrehamm

Norway

Shipbroker

Scan-Shipping Bergen A/S

Bergen

Norway

Registered owner

Rederiet Nessea AS

Kopervik

Norway

Renamed

02/2021 Odda Marie

Finland, Mariehamn - Call sign: OJTS

Owner & manager: Rederi AB Nathalie, FI-20200 Turku - Finland

Latest data adjustment

31 January 2023
