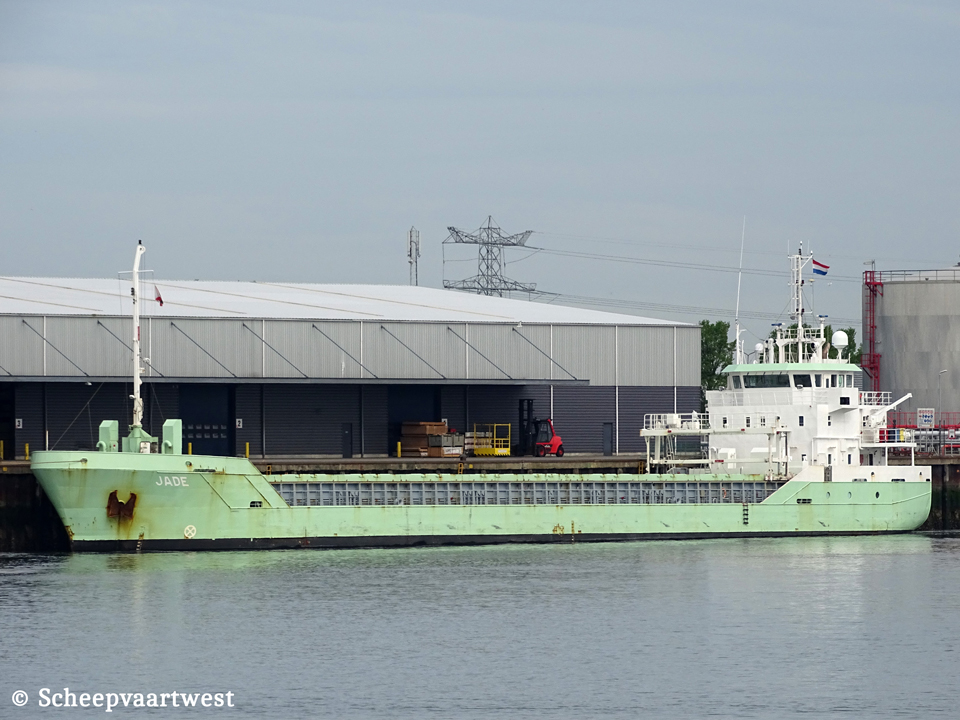

| Vlissingen. The Netherlands 16 May 2017 |
|
Name |
JADE |
|
Previous names |
05/2007 Launch as: Priscilla |
|
Type |
General cargo ship - Heavycargo - Container ship |
|
IMO-number |
9411769 |
|
Call sign |
PCDI |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
2.281 t |
|
DWT |
3.250 t |
|
DWCC |
Summer: 3.437 t |
|
NT |
1.229 t |
|
Number of 20ft containers |
104 |
|
Length |
88,97 m overall 84,70 m between perpendiculars |
|
Breadth |
11,80 m |
|
Draught |
5,40 m |
|
Keel to mast end |
24,50 m |
|
Air draft |
15,47 m in ballast |
|
Freeboard |
1.360 mm |
|
Depth |
6,95 m moulded |
|
Speed |
10,5 knots |
|
Built |
2010 |
|
Launch date |
29/05/2007 |
|
Delivery date |
15/07/2010 |
|
Builder casco |
NSC Marine Corporation (Nine Sun Group) Nantong China |
|
Builder completion |
Bijlsma/Veka Shipyard Lemmer B.V. Lemmer The Netherlands |
|
Yard number |
763 |
|
Hull material |
Steel |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L20 - 4 stroke single acting 8 cylinder 200 x 280 mm combustion engine 1.440 kW / 1.950 bhp at 1.000 rpm |
|
Propellers |
1x Screw propeller controllable pitch |
|
Shaft generator |
1x Stamford HCM 534C23 generator |
|
Generators |
1x Main diesel generatorset 175 kVA - 140 kW - 202 hp |
|
Emergency generator |
1x Diesel generatorset 81 kVA - 65 kW - 95 hp |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
1x Box shaped 63,00 x 9,60 x 7,50 m |
|
Cargo hold capacity |
Grain: 4.501 m³ / 158.985 ft³ |
|
Timber capacity |
3.760 m³ |
|
Hold ventilation |
abt. 9 air-changes per hour, basis empty hold Hold is fitted with dehumidifier system |
|
Number of hatches |
1 63,00 x 9,60 m |
|
Hatch type |
Cops & Nieborg Pontoon hatches |
|
Max permitted loads |
Tanktop: 12,0 t/m² Hatch cover: 1,60 t/m² |
|
Tank capacities |
HFO: 220 m³ MGO: 35 m³ Water ballast: 1.424 m³ Fresh water: 44 m³ |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Fabian de Jonge Maasstraat 104-1 1078 HN Amsterdam The Netherlands |
|
Latest data adjustment |
17 January 2023 |
