Antwerpen 07 April 2020 |
|
Name |

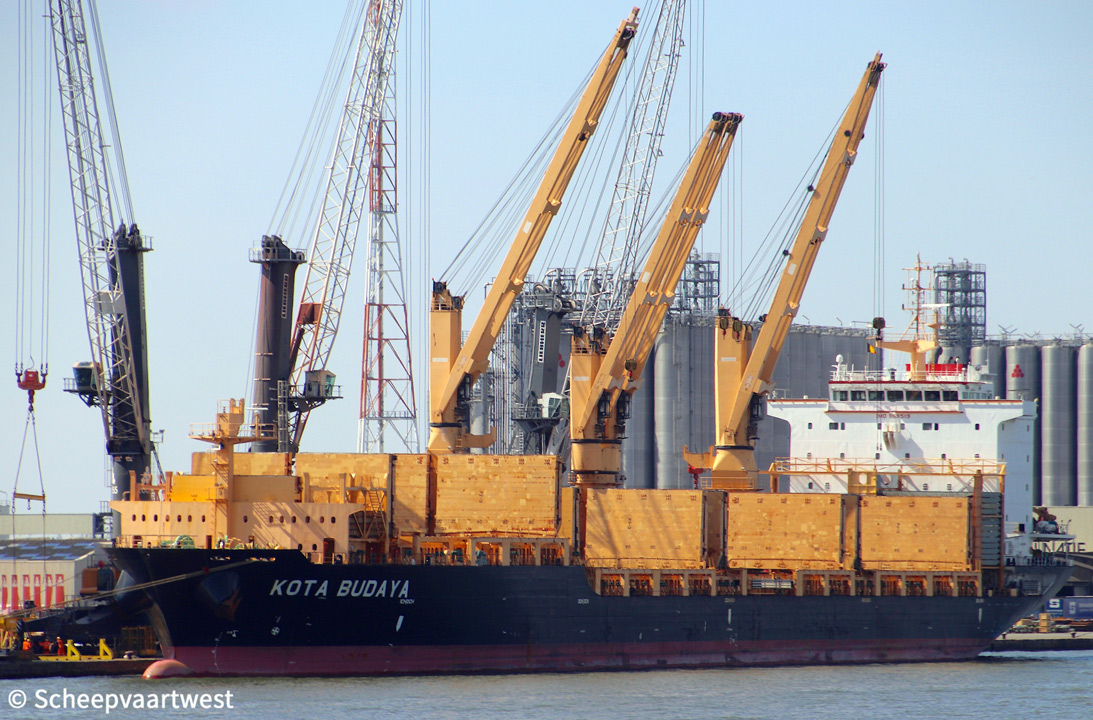

KOTA BUDAYA |
|
Type |
General cargo ship - heavycargo - Nonhomload - Occasional dry bulk cargo - Equipped for carriage of containers |
|
IMO-number |
9695119 |
|
Call sign |
9V2280 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
20.886 t |
|
DWT |
Summer: 27.000 t |
|
NT |
11.064 t |
|
Number of 20ft containers |
1.391 |
|
Length |
179,50 m overall 169,50 m between perpendiculars |
|
Breadth |
27,20 m |
|
Draught |
Max: 10,50 m |
|
Freeboard |
4.032 mm |
|
Depth |
14,50 m |
|
Speed |
Max: 15,1 knots |
|
Built |
2014 |
|
Date of completion |
08/08/2014 |
|
Builder |
Taizhou Kouan Shipbuilding Co.,Ltd. China |
|
Yard number |
TK0514 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
13 |
|
Bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MC-C8 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.250 kW / 11.209 hp at 124,0 rpm Build: 18/03/2014 Manufacturer: Dalian Marine Diesel Co., Ltd., Dalian - China |
|
Propellers |
1 |
|
Boilers |
1x CHR VEB 223,00 m² - 13,00 bar 1x CHM VEB 108,00 m² - 10,00 bar |
|
Generators |
3x Main diesel generatorsets each 875 kVA - 700 kW - 1.087 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 152 hp |
|
Number of holds |
5x Box shaped |
|
Cargo hold capacity |
Grain / Bale Hold 1: 9.770,74 / 9.156 56 m³ Hold 2: 1.936,26 / 1.856 22 m³ Hold 3: 9.770,74 / 9.156 57 m³ Hold 4: 10.496,24 / 9.992 65 m³ Hold 5: 8.444,98 / 7.926.17 m³ |
|
Number of hatches |
5 1x 9,80 × 11,10 m 3x 25,74 × 23,60 m |
|
Tank capacities |
Fuel: 1.741,83 m³ |
|
Cargo gear |
1x 40 t 1x 90 t 2x 45 t each |
|
Crew size |
26 |
|
Manager |
Pacific International Lines Republic of Singapore |
|
Registered owner |
Pacific International Lines (Private) Ltd. |
|
Latest data adjustment |
23 June 2020 |
