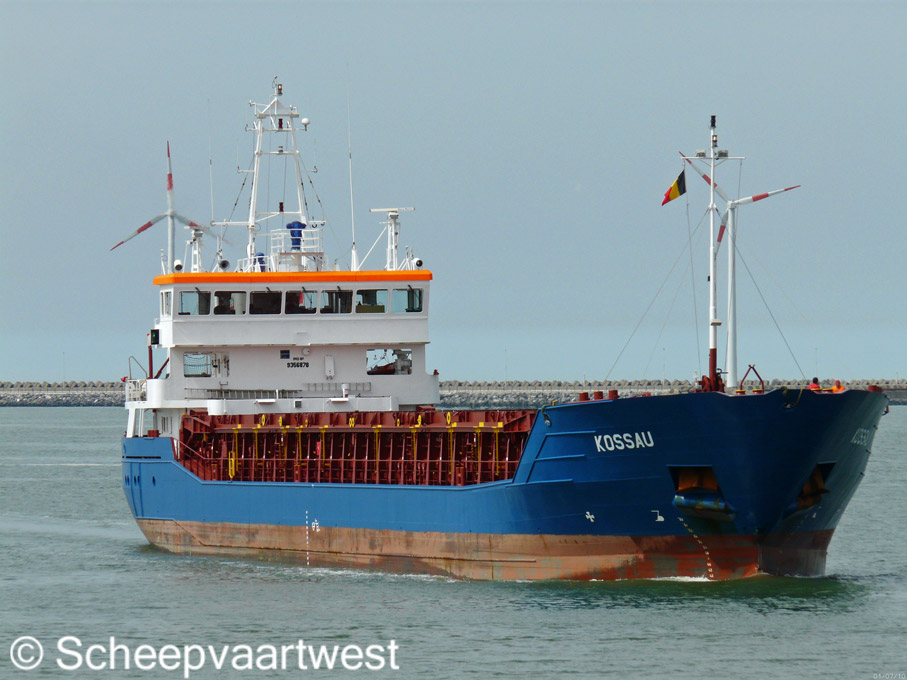

Kossau 04
Zeebrugge 01 July 2010

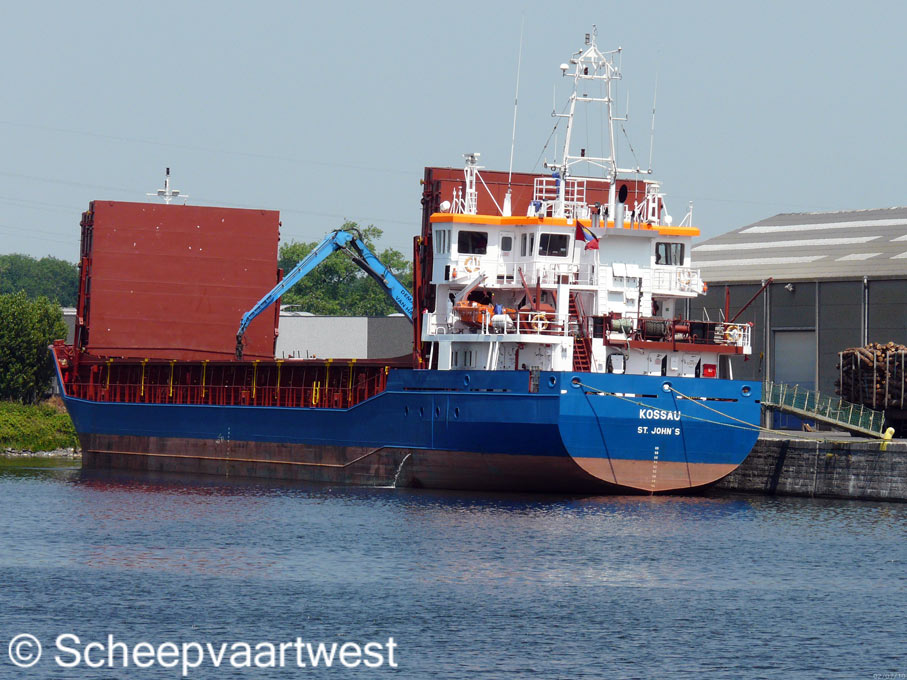

Kossau 09
Brugge 02/07/10



Name

KOSSAU

Type

Multi-purpose dry cargo ship / Mini bulk carrier

IMO-number

9356878

Call sign

V2CV9

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.461 t

DWT

3.701 t

NT

1.369 t

Length

87,80 m overall

82,10 m registered

Breadth

12,80 m registered

Draught

Summer: 5,498 m

Freeboard

1.615 mm

Depth

Main deck: 7,10 m moulded

Tween deck: 4,55 m

Speed

Service: 12,2 knots

Built

2007

Keel laid

27/05/1998

Launch date

11/07/2007

Date of completion

24/09/2007

Builder

Slovenske Lodenice Komarno A.S.

Rolnickej Skoly 1519

945 01 Komarno

Slovak Republic

Yard number

2966

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MaK Caterpillar 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW at 1.000 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG

Falckensteiner Str. 2

24159 Kiel

Federal Republic of Germany

Propeller

1x Solid pitch propeller - aft at 226 rpm

Boiler

1x Water heater oil fired - 5,0 bar

Year of manufacture: 2006

Manufacturer: A.C.V. Nederland B.V.

Kaartenmakerstraat 5

2984 CB Ridderkerk

The Netherlands

Electric installations

1x Plant 400/230 V - 378 kVA

1x Plant 400 V - 50 kVA

1x Plant 24 V - 140 Ah

1x Plant 24 V - 170 Ah

1x Plant 24 V - 170 Ah

1x Plant 24 V - 340 Ah

Diesel generators

3x SISU-Diesel 620 DSRG diesel engines each110 kW coupled with 3 generators each 126 kVA, 380/220 V, 50 Hz

Emergency generator

1x SISU-320-DSG 320 diesel engine coupled with generator 50 kVA at 1.500 rpm

Batteries

3x Batteries for automation each 170 Ah

1x Battery for start emergency engine 170 Ah

1x Battery for UPS radio 140 Ah

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Jamstram BU40F transverse thruster - 185 kW, forward

Hatch/hold

1

Dimension: 56,55 x 10,20 m

Hatch cover

Kvaerner

Cargo capacity

Grain: 4.585 m³

Bale : 4.585 m³

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Crew

7

Crew size

9

Manager

Reederei Erwin Strahlmann e.K.

Allee 14

25709 Marne

Federal Republic of Germany

Owner

Erwin Strahlmann

Allee 14

25709 Marne

Federal Republic of Germany

Renamed

12/2020 Emstal

Portugal - Call sign: CQEO3

Owner: Emstal Schiffahrts haftungsbeschrärt & Co., KG

Latest data adjustment

04 March 2021
