JBU Schelde 04

Vlissingen 27 September 2017

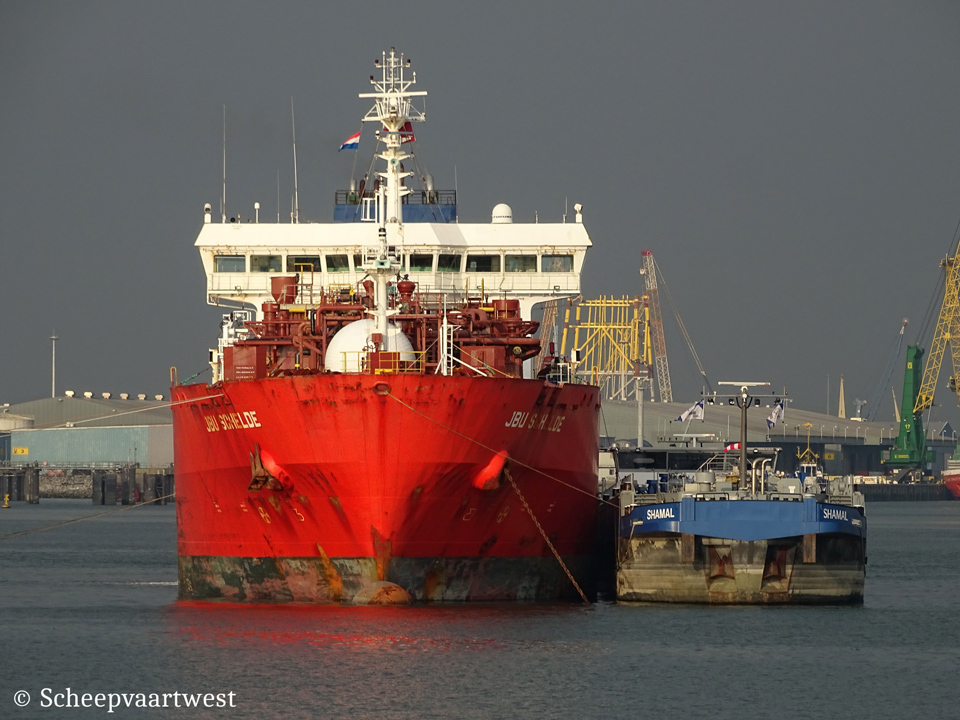

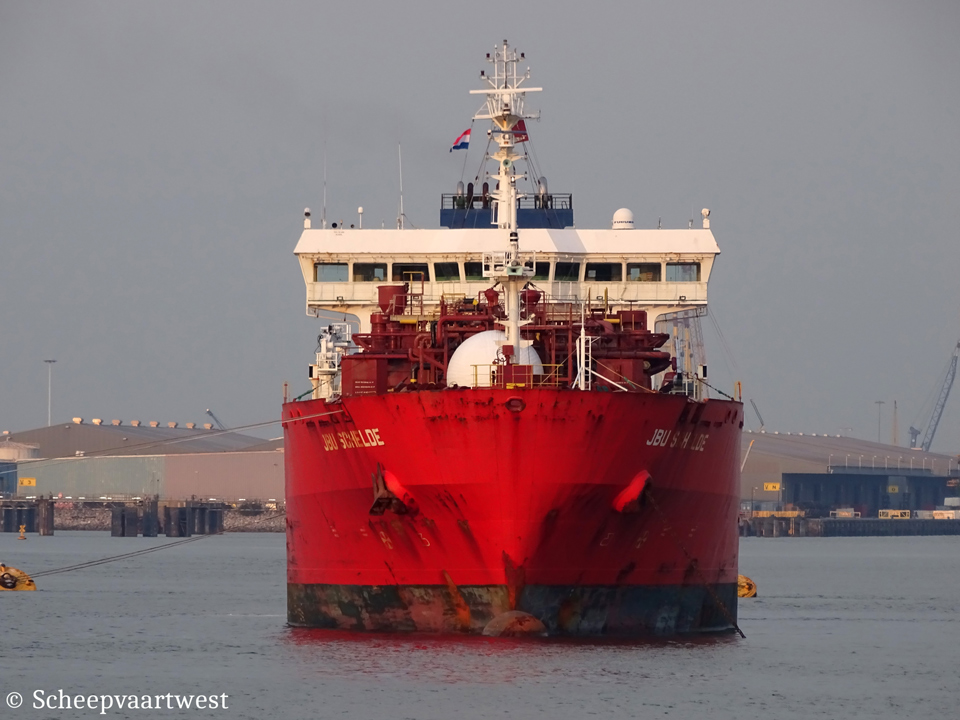

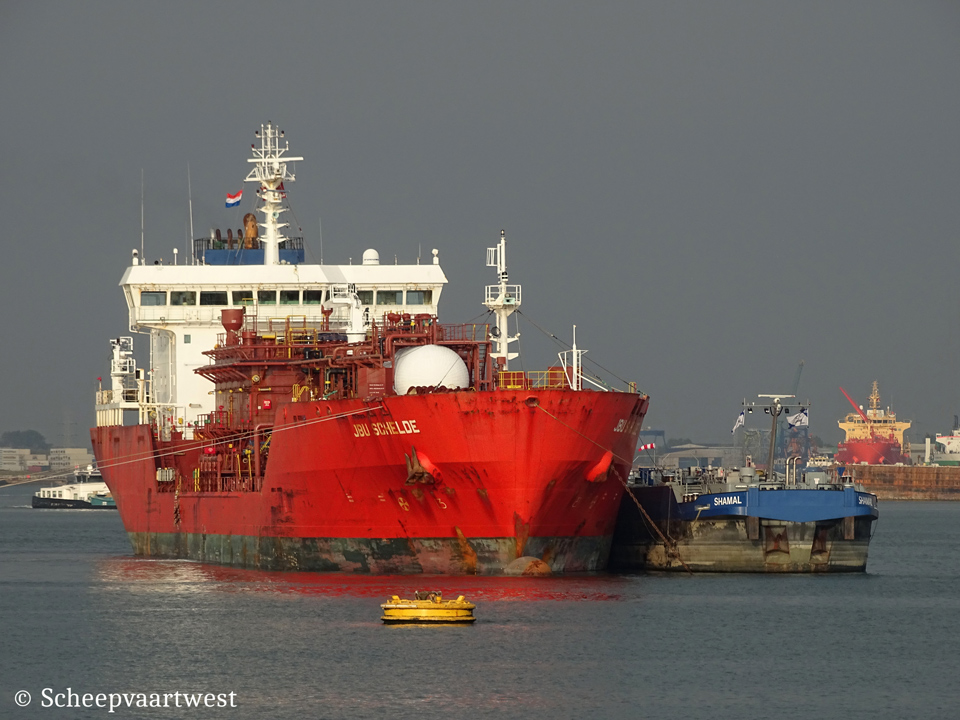

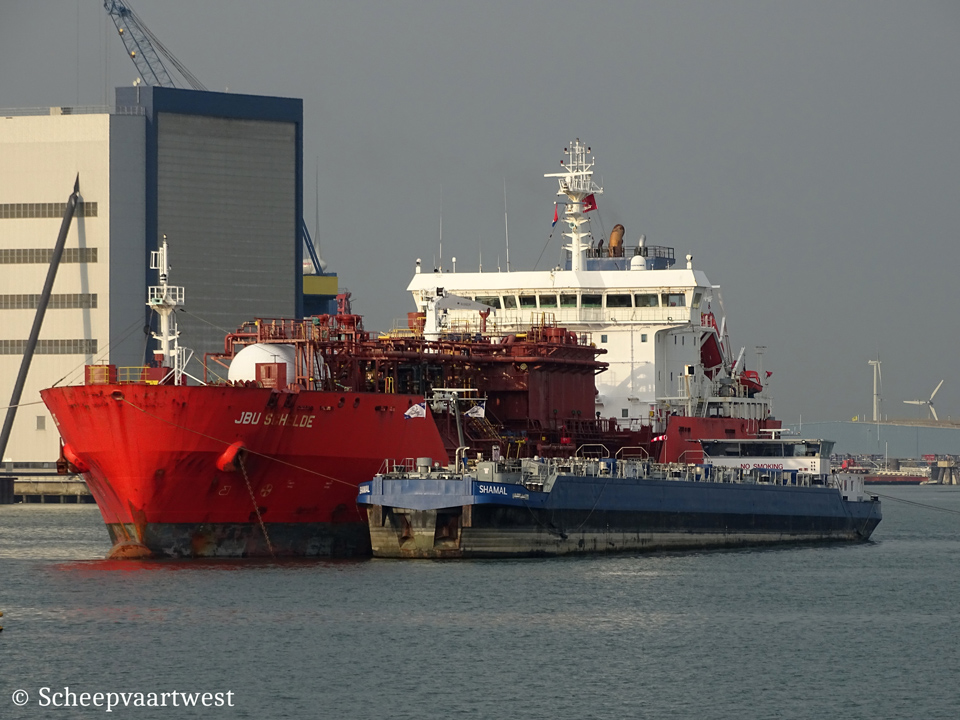

JBU Schelde 05   JBU Schelde 03   JBU Schelde 01   JBU Schelde 02
Vlissingen 27/09/17   Vlissingen 27/09/17   Vlissingen 27/09/17   Vlissingen 27/09/17



Name

JBU SCHELDE

Type

LPG tanker - Semi-pressurized fully refrigerated

IMO-number

9374911

Call sign

3FZI2

Flag

Republic of Panama

Port of registry

Panama City

GT

9.735 t registered

DWT

Summer: 11.787 t

NT

2.920 t registered

Length

126,70 m overall

Breadth

20,40 m moulded

Draught

Summer: 9,33 m

Moulded L x B x D

119,30 x 20,40 x 11,80 m

Registered L x B x D

120,55 x 20,40 x 11,80 m

Freeboard

Summer: 2.510 mm

Depth

11,80 m moulded

Speed

Max: 16,0 knots

Built

2008

Keel laid

20/11/2007

Launch date

19/05/2008

Date of completion

31/10/2008

Builder

Sekwang Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

1159

Hull material

Steel

Hull type

Double side

Main engine

1x MAN B&W 6L48/60 - 4 stroke single acting 6 cylinder 480 x 600 mm combustion engine 7.200 kW at 500 rpm

Manufacturer :MAN Diesel A/S Frederikshavn - Denmark

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 480 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary thermal oil boiler - 1,0 bar

Evaporation: 2.000 kW

Manufacturer: Miura Co., Ltd.

Shaft generator

1x 1.100 kW

Generators

3x Main diesel generatorsets each 800 kW

Bow thruster

590 kW

Number of cargo tanks

2

Cargo tank capacity

Liquid: 10.115 m³

Max pressure

5,5 bar

Min temperature

-104°C

Tank capacities

Fuel oil: 1.129 m³

Fresh water: 148 m³

Manager

JB Ugland Shipping Singapore

Operator

Selandia Ship Management (Singapore) Pte Ltd.
10 Hoe Chiang Road
#24-01 Keppel Towers
Singapore 089315
Republic of Singapore

Owner

World Star Shipping SA

Latest data adjustment

13 November 2018
