| Zeebrugge 15 February 2013 |
|
Name |

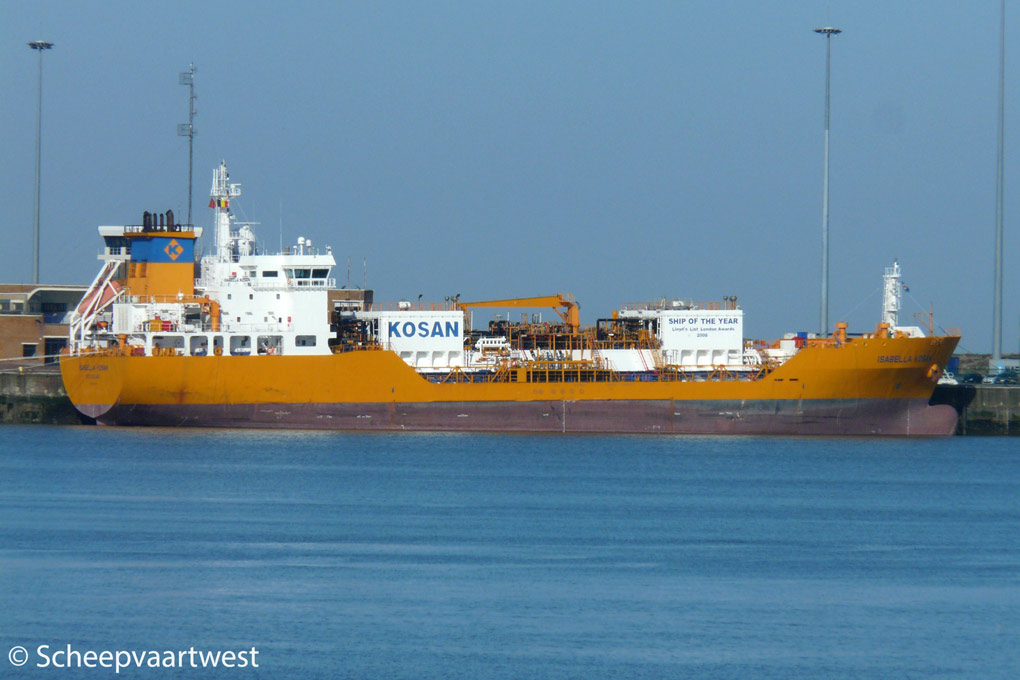

ISABELLA KOSAN |
|
Type |
Liquefied gas tanker |
|
Transport type |
Semi-refrigerated |
|
IMO-number |
9342384 |
|
Call sign |
MVNP6 |
|
Flag |
Isle of Man (United Kingdom) |
|
Port of registry |
Douglas |
|
GT |
7.465 t |
|
DWT |
Summer: 8.586,58 t |
|
NT |
2.239 t |
|
Length |
115,00 m overall 107,81 m between perpendiculars |
|
Breadth |
18,60 m |
|
Draught |
7,40 m |
|
Freeboard |
1.962 mm |
|
Depth |
10,60 m |
|
Speed |
15,3 knots |
|
Built |
2007 |
|
Date of completion |
31.05.2007 |
|
Builder |
Sekwang Heavy Industries Co., Ltd. (ex INP HI) |
|
Yard number |
1147 |
|
Hull material |
Steel |
|
Hull type |
Double side |
|
Watertight compartments |
3 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8S35MC - 4 stroke 8 cylinder 140 x 174 mm diesel engine - 5.920 kW / 8.043 hp at 174 rpm Built: 2006 Builder: MAN B & W Diesel A/S, Frederikshavn - Denmark |
|
Propellers |
1x Screw propeller controllable pitch at 174 rpm |
|
Boilers |
1x CHO Cochrane 167,00 m² - 7,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 912 kVA - 730 kW - 1.046 hp |
|
Emergency generator |
1x Diesel generatorset 712 kVA - 570 kW - 823 hp |
|
Bow thruster |
1x 488 kW |
|
Number of tanks |
2 |
|
Total capacity of tanks |
8.046 m³ |
|
Pumps |
2x Pumps 960 m³/h |
|
Minimum temperature |
-104°C |
|
Max. pressure |
6,0 bar |
|
Fuel oil |
1.051,9 m³ |
|
Crew |
16 |
|
Manager |
Lauritzen Kosan |
|
Operator |
Lauritzen Kosan A/S |
|
Owner |
Lauritzen Kosan |
|
Registered owner |
Lauritzen Kosan A/S |
|
Last update |
16.02.2013 |
