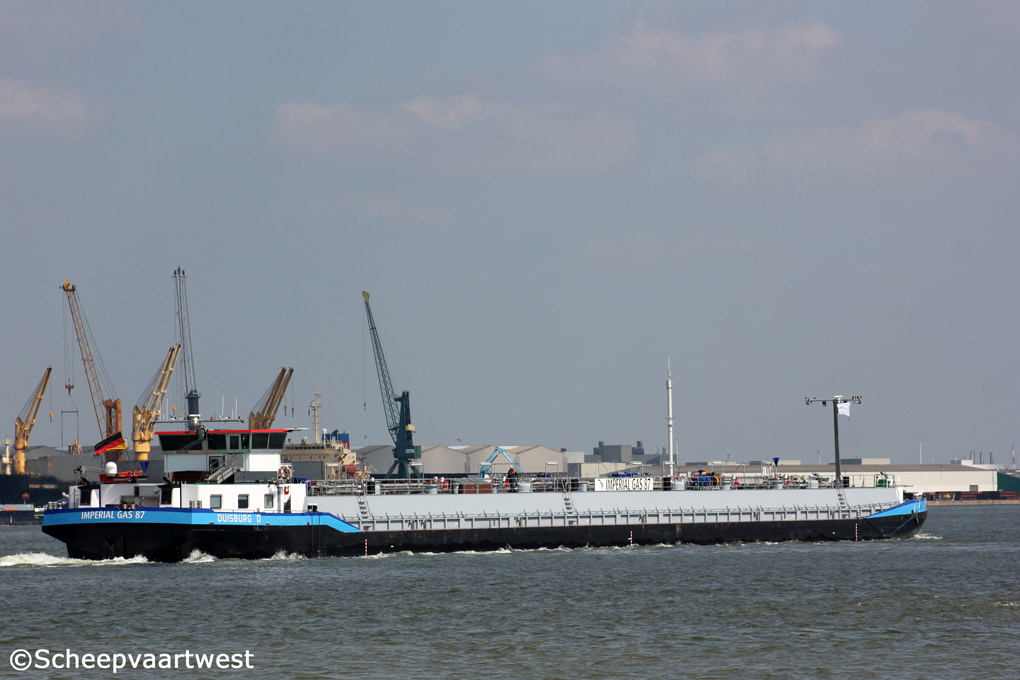

Imperial Gas 87 01

Antwerpen 27 August 2014



Name

IMPERIAL GAS 87

Previous names

2008 - 2013 LRG Gas 87 - Lehnkering Reederei AG, Duisburg - Germany

Type

Inland gas tanker

ENI-number

02331363

Call sign

DB5083

Flag

Germany

Port of registry

Duisburg

GT

2.049 t

DWT

1.849 t

Length

110,00 m

Breadth

11,45 m

Draught

2,80 m

Depth

5,61 m

Built

2008

Keel laid

07.04.2008

Launch date

03.07.2008

Date of completion

16.12.2008

Builder casco

Santierul Naval Orsova S.A.
Strada Tufari 4
225200 Orsova, Mehedinti
Romania

Builder completion

TeamCo Shipyard
Heusden
The Netherlands

Hull material

Shipbuilding steel (standard)

Watertight bulkheads

4

Continuous decks

1

Main engine

2x Mitsubishi S 12 A2-C2MPTK - 4 stroke 12 cylinder diesel engines each 634 kW / 862 hp at 1.940 rpm

Year of manufacture: 2008

Manufacturer: Mitsubishi Heavy Industries, Ltd.
12, Nishiki-cho, Naka-ku
Yokohama, Kanagawa-ken
Japan

Gearbox

2x Masson Marine type MM W 3450- reduction 5,476:1

Propellers

2x Screw Propeller Solid - aft at 355 rpm

Diameter 1.550 mm

Generators

1x Diesel generatorset 435 kVA - 348 kW - 544 hp
2x Diesel generatorsets each 120 kVA - 96 kW - 167 hp

Compressed air receivers

2x Receivers each 125 litres - 33,0 bar

Bow thruster

1x Scania - Verhaar Omega-Jet 31120-4k - 529 hp / 388 kW at 1.800 rpm

Number of cargo tanks

8

Tank cargo capacity

2.800 m³

Anchor equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Manager

Imperial Liquids Barging GmbH
Dr.-Hammacher-Str. 49
47119 Duisburg
Federal Republic of Germany

Owner

Imperial Shipping Group
Dbg-Ruhrort
Germany

Registered owner

EDURO Vermietungsgesellschaft für bewegliche Wirtschaftsgüter mbH & Co. Objekt EINS KG
Emil-Riedl-Weg 6
82049 Pullach I. Isartal
Federal Republic of Germany

Latest data adjustment

15 October 2014
