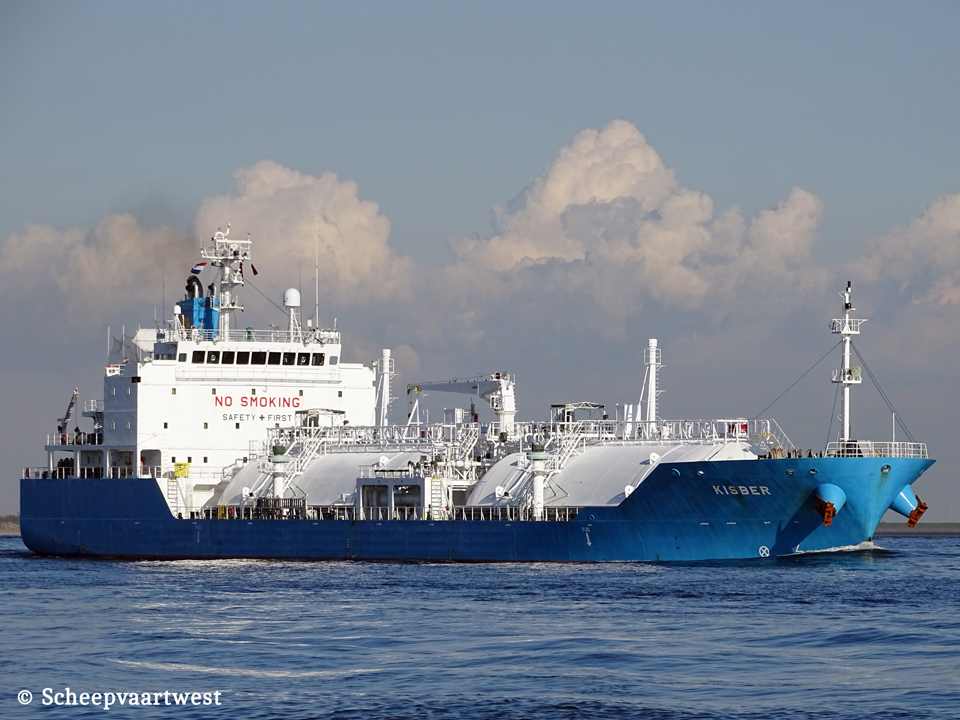

| Westerschelde 18 April 2017 |
|
Name |
KISBER |
|
Type |
Liquefied gas tanker - LPG |
|
IMO-number |
9713624 |
|
Call sign |
9V2736 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
8.359 t |
|
DWT |
8.989 t |
|
NT |
2.940 t Suez: 9.604,88 t Panama: 7.067 t |
|
Displacement |
Summer: 14.181 t loaded |
|
Length |
119,98 m overall 114,00 m between perpendiculars |
|
Breadth |
21,02 m extreme |
|
Draught |
Summer: 7,31 m |
|
Keel to mast end |
33,95 m |
|
Air draft |
28/,78 m normal ballast |
|
Distance bow to bridge |
97,60 m |
|
Freeboard |
2.716 mm |
|
Depth |
10,00 m moulded |
|
Speed |
Max: 14,8 knots |
|
Built |
2015 |
|
Keel laid |
02/02/2015 |
|
Delivery date |
25/08/2015 |
|
Builder |
Kyokuyo Shipyard Corporation 8-7 Minato-Machi Chofu Shimonoseki City, 752-0953 Japan |
|
Yard number |
S-519 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hitachi/MAN-B&W 6S35ME-B9.3 - 2 stroke single acting 6 cylinder 350 x 1.550 mm combustion engine Mcr 5.220 kW at 167,0 rpm manufacturer: Hitachi Zosen Corporation |
|
Propellers |
1x Fixed pitch propeller 4 blades Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Composite boiler - 6,9 MPa Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Yanmar 6N165L-EW main diesel generatorsets each 530 kW |
|
Number of cargo tanks |
2 |
|
Cargo tank capacity 100% |
100% - 98% Tank 1: 5.512,25 m³ / 5.402,00 m³ Tank 2: 5.513,80 m³ / 5.403,52 m³ Total: 11.026,05 m³ / 10.805,53 m³ |
|
Number of pumps |
4x Wartsila Svanehoj deepwell cargo pumps each 300 m³/h driven by E-motor at 1.785 rpm 2x Ballast pumps each 250 m²/h |
|
Maxi. cargo pressure |
17,65 bar |
|
Min. cargo temperature |
-10°C |
|
Manifolds |
Distance bridge front to mid-point manifold: 42,00 m Distance bow to mid-point manifold: 55,60 m Distance of manifold above deck: 1,10 m Distance of manifold from ship's side: 3,50 m Distance of manifold above waterline summer: 6,91 m Distance of manifold above waterline summer: 9,61 m |
|
Tank capacities |
Fuel oil: 703,25 m³ Diesel oil: 159,88 m³ Ballast: 3.527,51 m³ Fresh water: 188,06 m³ |
|
Lifting equipment |
1x Engine room electric chain hoist - SWL 1,0 t 1x Hose handling crane - SWL 5,0 t 1x Provision crane - SWL 1,0 t |
|
Crew size |
19 |
|
Technical manager |
Anglo Eastern Management Pte. Ltd. |
|
Registered owner |
Kisber Shipping Pte Ltd. |
|
Renamed |
09/2020 Epic Sula republic of Singapore, Singapore City - Call sign: 9V2736 Owner: Epic Gas Echo Pte Ltd. - Republic of Singapore Manager: BW Epic Kosan Maritime Pte Ltd. - Republic of Singapore |
|
Latest data adjustment |
16 March 2023 |
