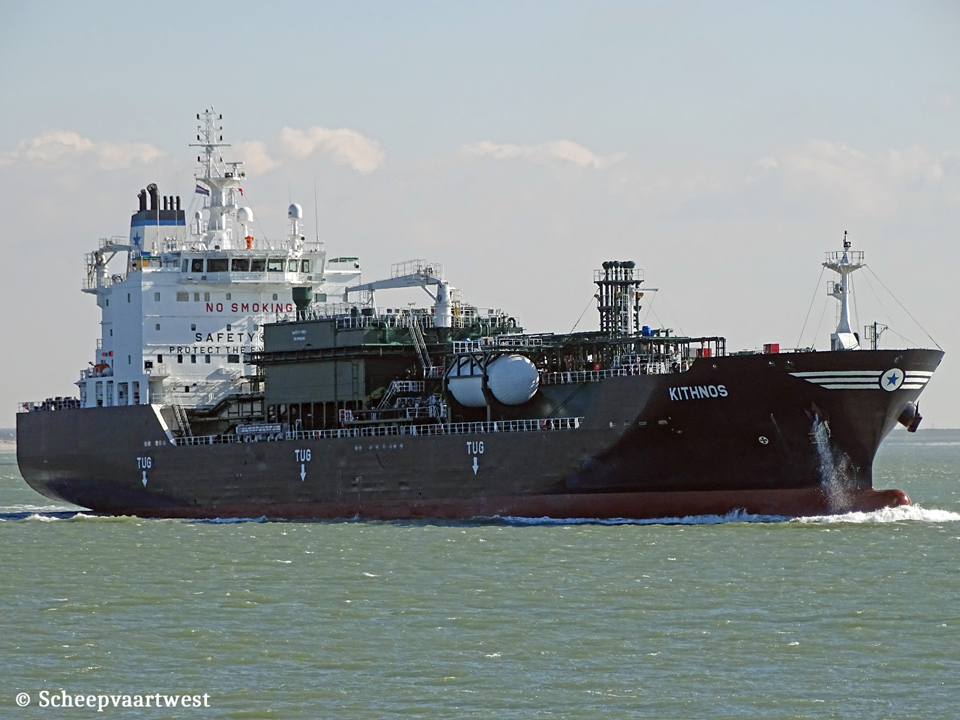

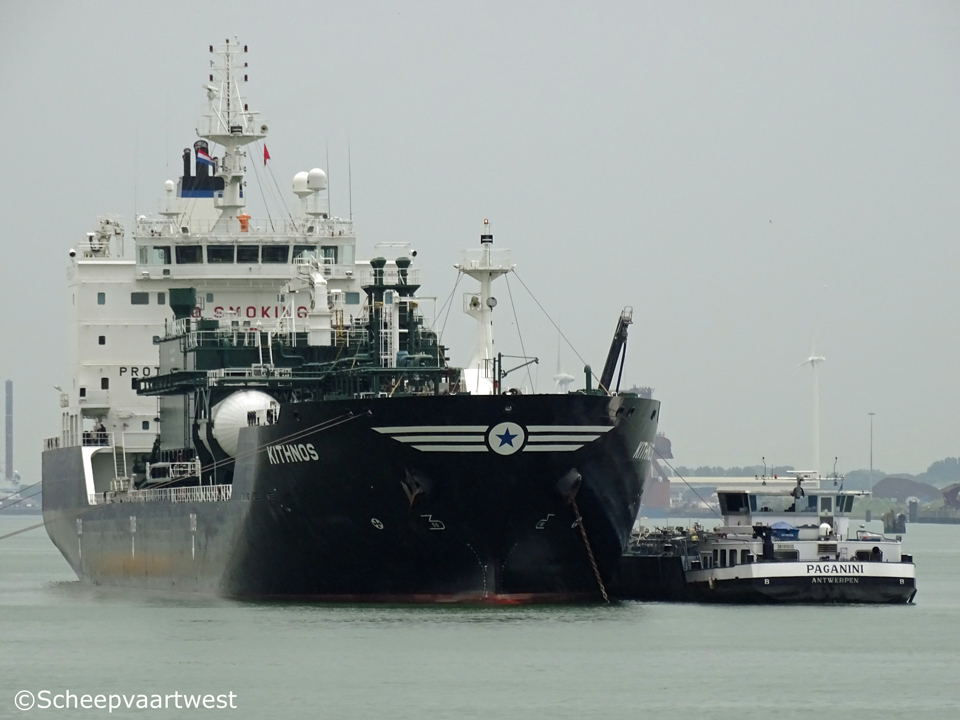

Terneuzen 11 July 2019 |
 |
 |
 |
 |
 |
 |
|||||

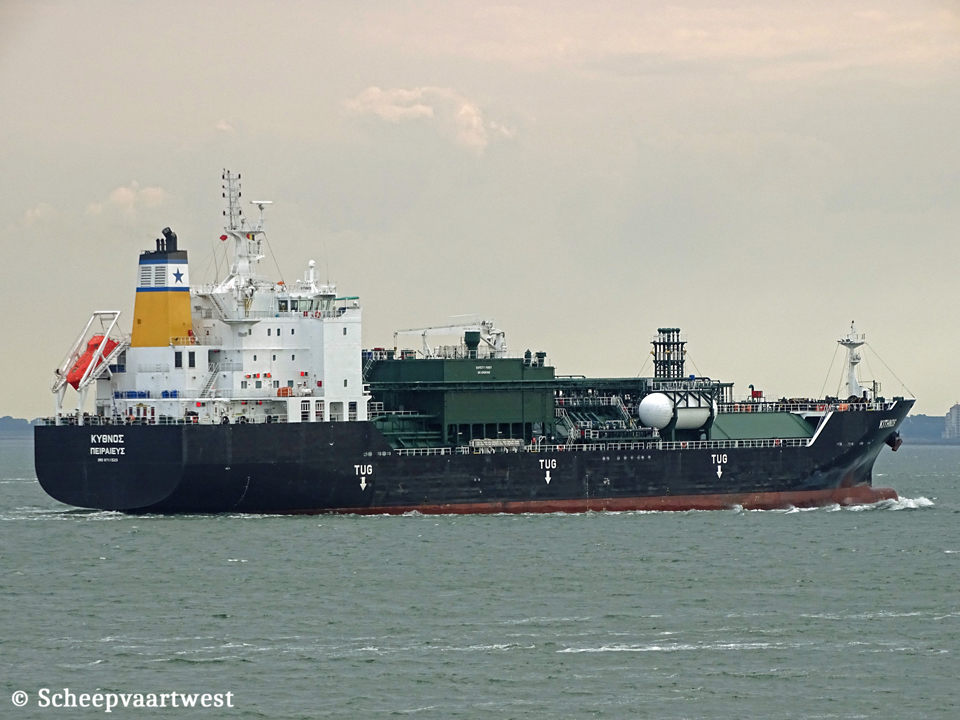

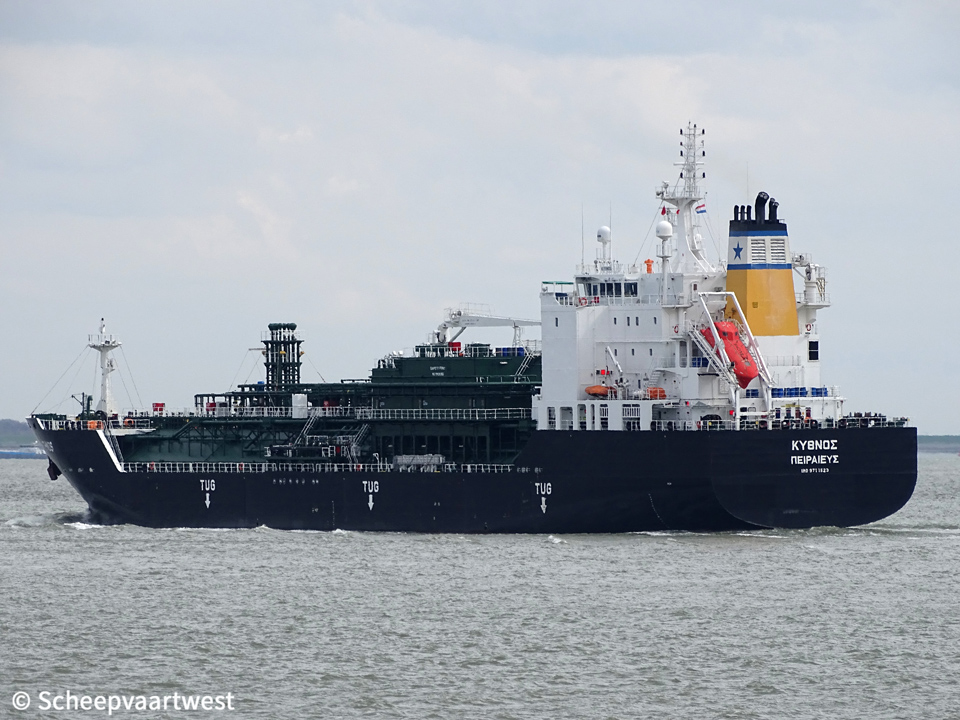

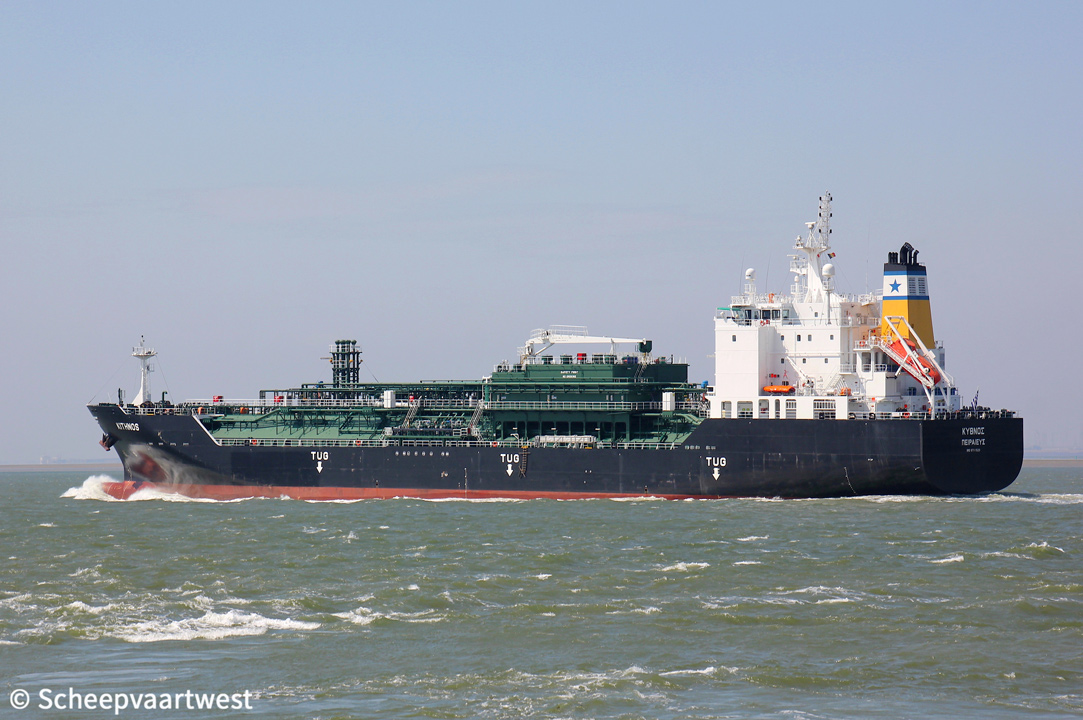

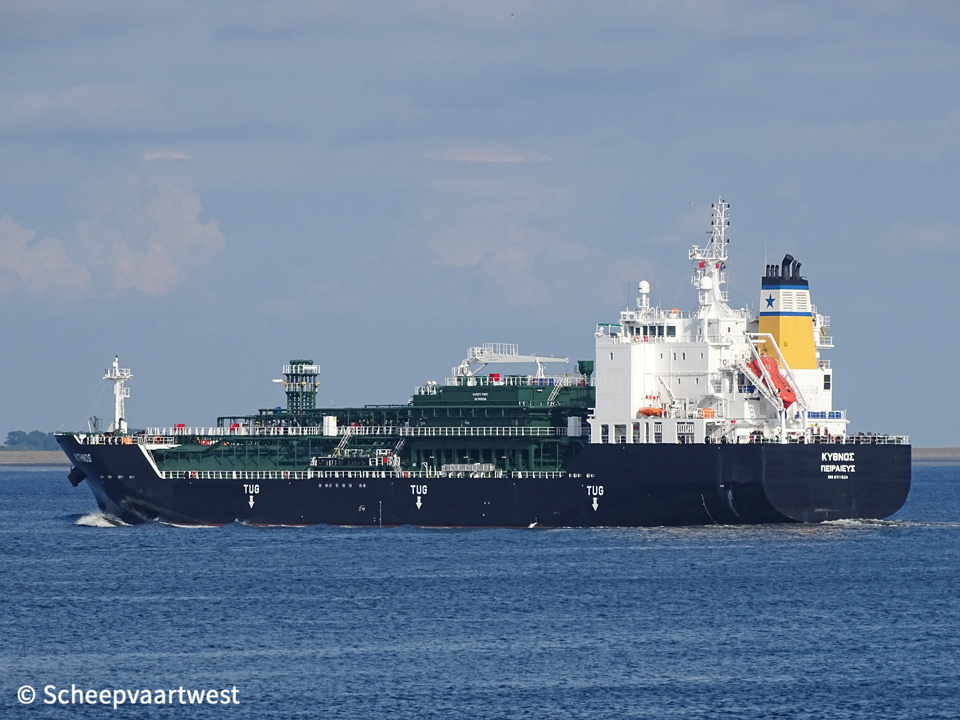

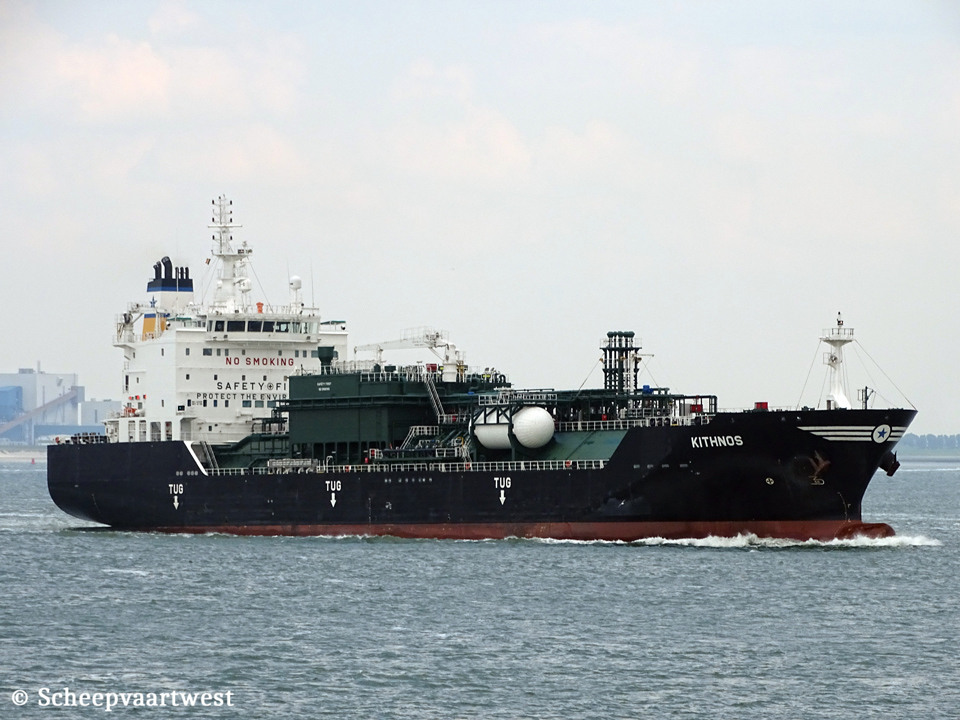

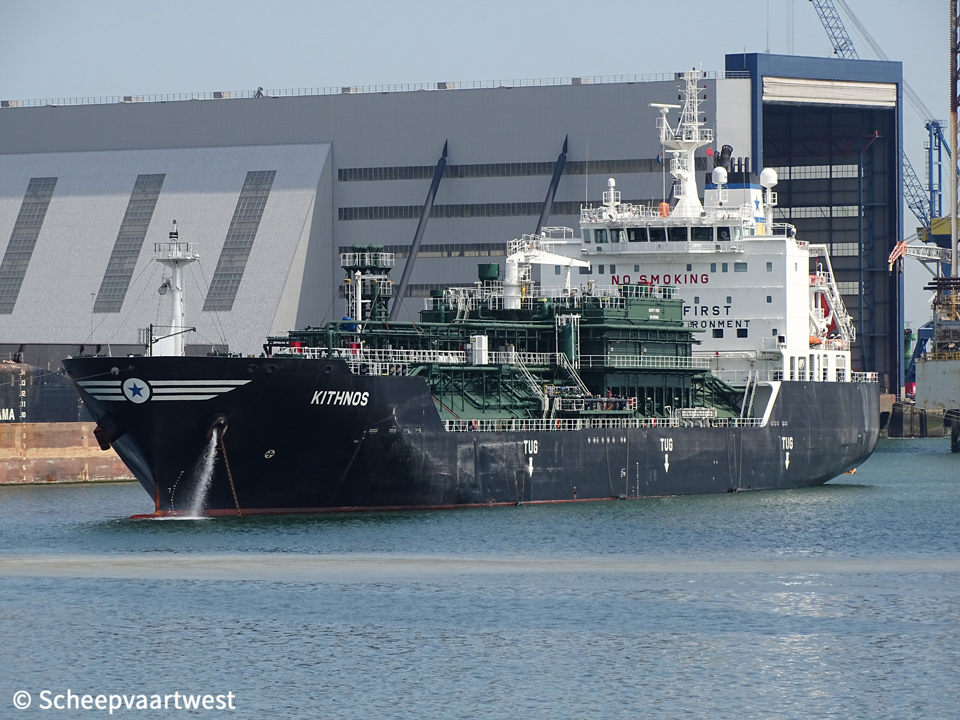

| Westerschelde 04/04/16 | Vlissingen 23/06/16 | Westerschelde 09/07/18 | Westerschelde 04/04/18 | Vlissingen 26/06/20 | Terneuzen 11/07/19 | |||||
 |
 |
 |
||||||||

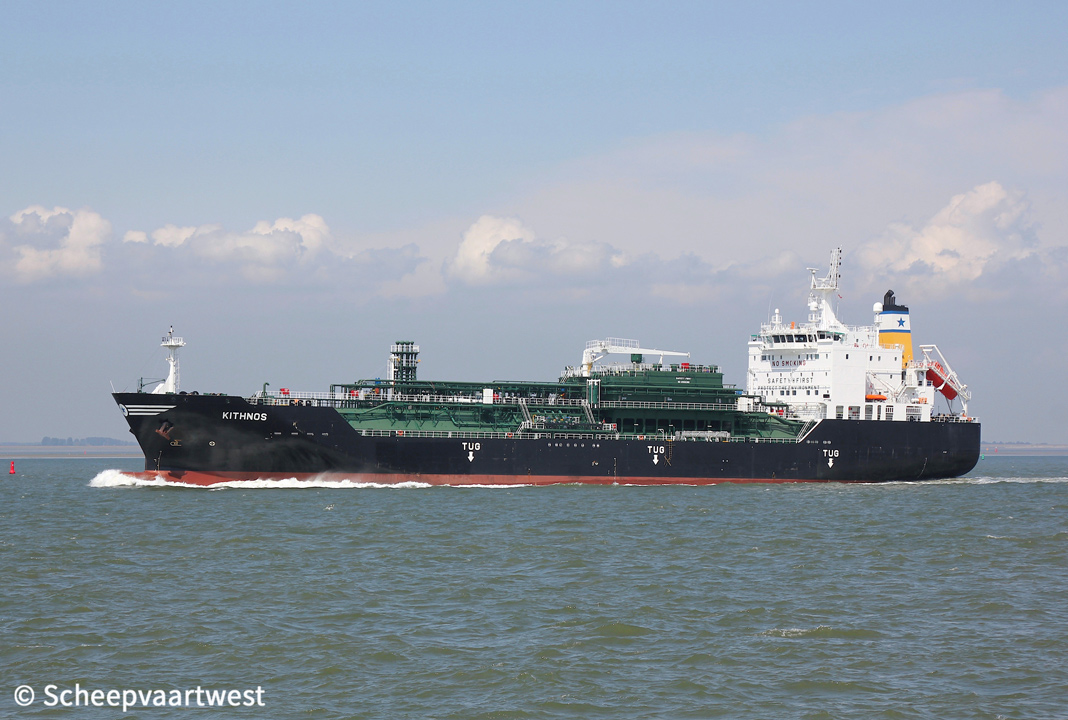

| Westerschelde 29/05/19 | Westerschelde 29/05/19 | Westerschelde 26/02/18 | ||||||||
|
Name |
KITHNOS |
|
Hellenic name |
ΚYΘΝΟΣ |
|
Type |
Liquefied gas tanker - LEG/LPG/NH3/VCM Carrier |
|
Classification |
Lloyd's Register |
|
IMO-number |
9711523 |
|
Call sign |
SVCH5 |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
GT |
13.794 t Suez: 15.012,17 t |
|
DWT |
Summer: 15.028 t Winter: 14.460 t |
|
NT |
4.138 t Panama: 11.617 t Suez: 11.738,97 t |
|
Displacement |
Light: 6.950 t Loaded: 21.861 t |
|
Lightship |
6.950 t |
|
Length |
147,06 m overall 139,00 m between perpendiculars |
|
Breadth |
22,60 m moulded |
|
Draught |
Summer: 9,21 m Winter: 9,02 m |
|
Distance bow to bridge |
117,62 m |
|
Keel to mast end |
45,14 m |
|
Air draft |
Normal ballast: 38,37 m |
|
Depth |
12,60 m moulded |
|
Speed |
Service: 15,0 knots loaded |
|
Build |
2016 |
|
Keel laid |
12/08/2015 |
|
Launch date |
08/10/2015 |
|
Delivered |
21/01/2016 |
|
Builder |
Hyundai Mipo Dockyard Ulsan South Korea |
|
Yard number |
8166 |
|
Hull material |
Steel |
|
Hull type |
Double side |
|
Main engine |
1x MAN-B&W/Hyundai 6S46ME-B8.3 (Tier II)- 2 stroke cylinder 460 x 1.932 mm combustion engine Mcr: 6.430 KW / 8.742 hp at 125,0 rpm Ncr: 5.144 KW at 116,0 rpm |
|
Propellers |
1x Fixed pitch propeller Diameter: 5,3 m |
|
Generators |
3x Hyundai Himsen 6H21/32 diesel generatorsets each 1.250 kW at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 120 kW at 1.800 rpm |
|
Bow thruster |
1x Controllable pitch 750 kW |
|
Number of tanks |
3x Cylindrical tanks |
|
Cargo tank capacity |
100% - 98% Tank 1: 4.057 m³ / 3.976 m³ Tank 2: 4.051 m³ / 3.970 m³ Tank 3: 4.057 m³ / 3.976 m³ Total: 12.164,6 m³ / 11.921,3 m³ |
|
Number of deck tanks |
1 |
|
Deck tanks capacity |
100%: 123,3 m³ 98%: 120,8 m³ |
|
Number of pumps |
3x Deepwell, vertical, centrifugal, multistage cargo pumps each 400 m³/h 2x Horizontal, centrifugal, single stage booster pumps each 400 m³/h 2x Shin Shin / C200 centrifugal electric driven ballast pumps each 300 m³/h |
|
Manifolds |
Centre of manifold to bow: 69,62 m Distance bridge front - mid point manifold: 48,00 m Distance bow to mid-point manifold: 69,62 m |
|
Min temp |
-104°C |
|
Max tank pressure |
5,0 bar |
|
Tank capacities |
Fuel oil: 1.006 t Diesel oil: 282 t Lub oil: 54 t Ballast: 1.157 t Fresh water: 266,6 t |
|
Commerical manager |
E3 Pool A/S Kalvebod Brygge 39-41 1560 Copenhagen Denmark |
|
ISM manager |
Eletson Corporation 118 Kolokotroni Street GR 185 35 Piraeus Greece |
|
Registered owner |
Kithnos Special Maritime Enterprise c/o Eletson Corporation 118, Kolokotroni Street 185 35 Piraeus Greece |
|
Latest data adjustment |
08 April 2022 |
