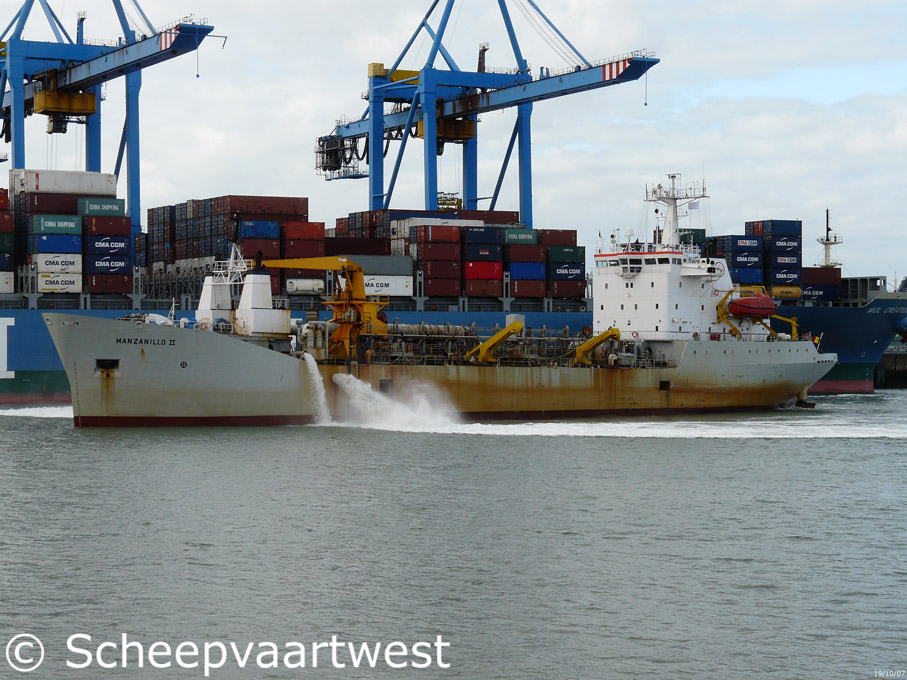

| Zeebrugge 19 October 2007 |
 |
 |
 |
 |
|||

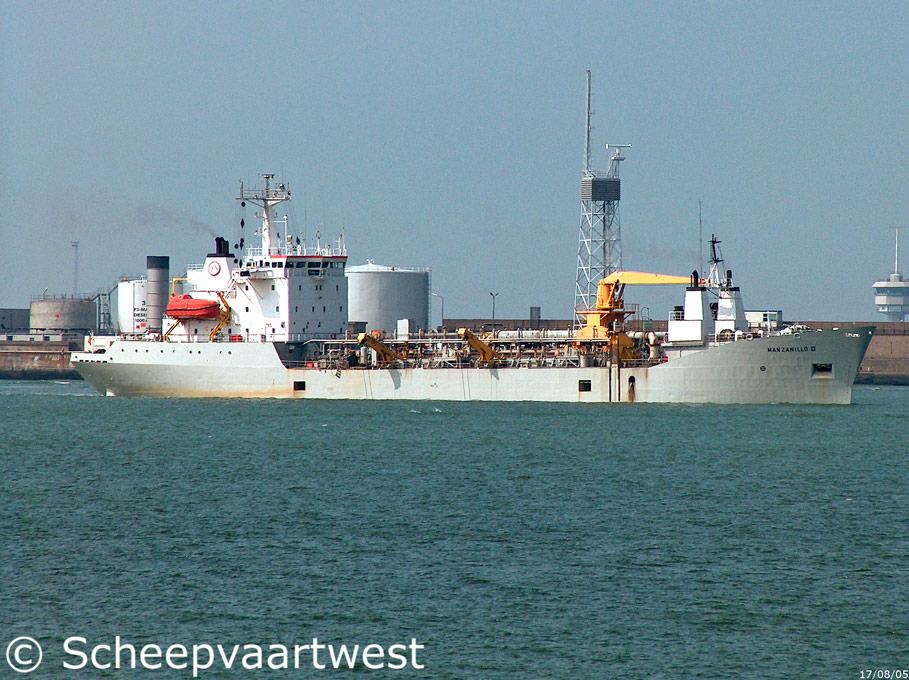

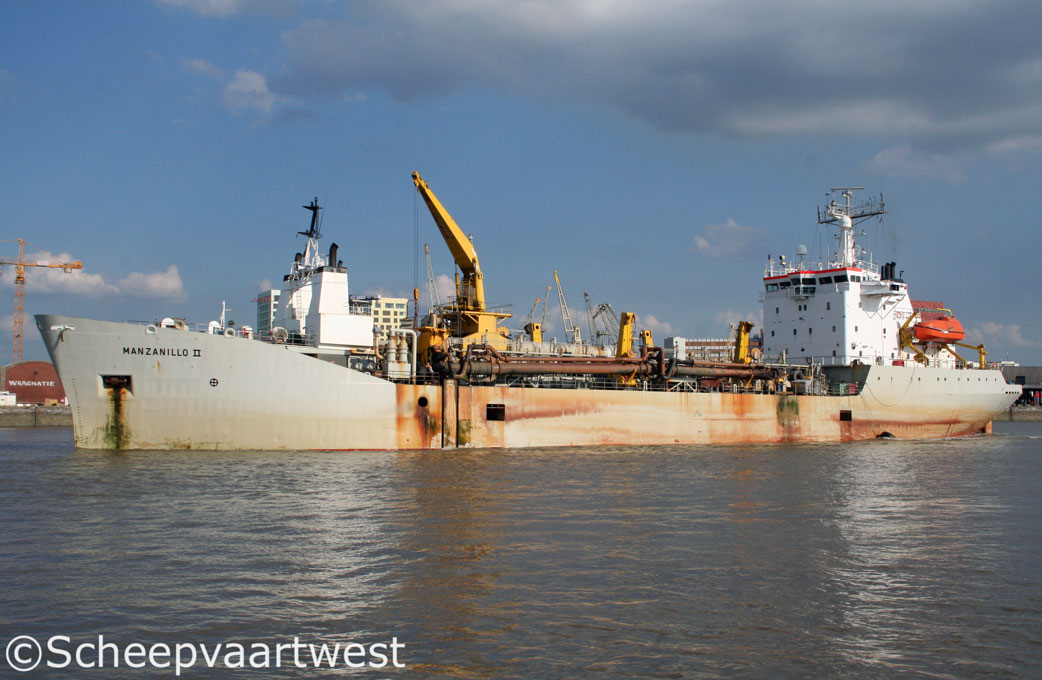

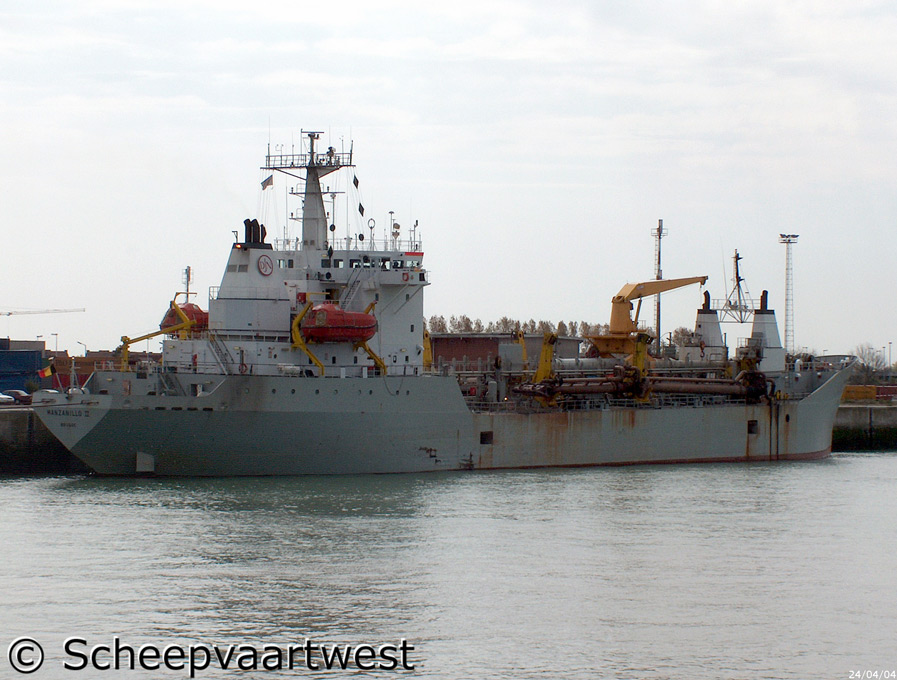

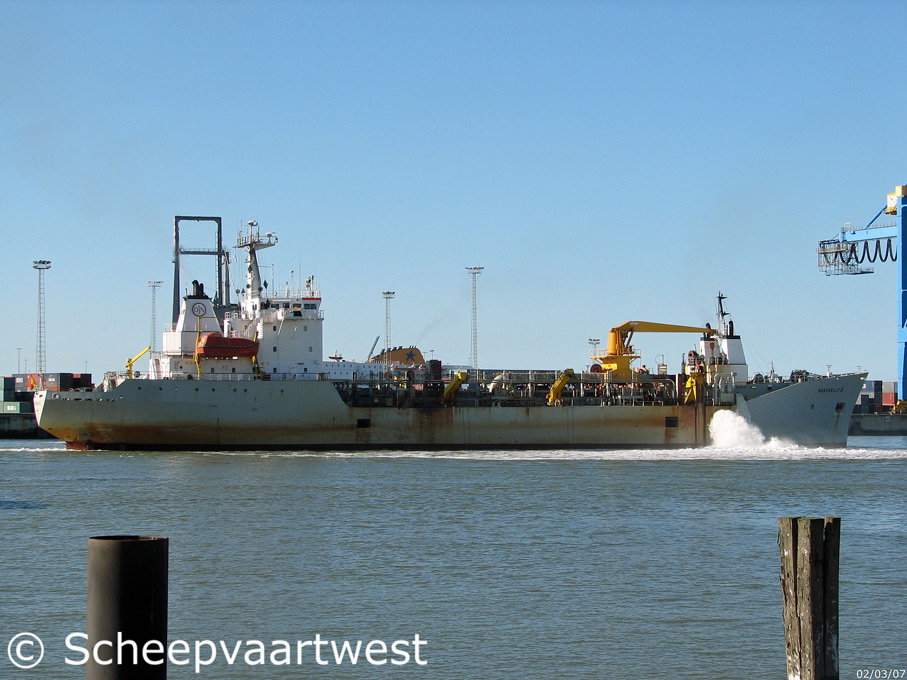

| Zeebrugge 02/03/07 | Zeebrugge 17/08/05 | Zeebrugge 24/04/04 | Antwerpen 03/09/11 | |||
|
Name |
MANZANILLO II |
|
Type |
Trailing suction hopper dredger |
|
IMO-number |
8600909 |
|
Call sign |
ORKO |
|
Flag |
Belgium |
|
Previous flags |
2001 Mexico 2001 Mauritius |
|
Port of registry |
Brugge |
|
GT |
5.333 t |
|
DWT |
Summer: 9.113 t |
|
NT |
1.600 t |
|
Length |
113,60 m overall |
|
Breadth |
19,04 m overall |
|
Draught |
Loaded: 8,00 m Unloaded: 3,20 m |
|
Freeboard |
1.000 mm |
|
Depth |
9,00 m |
|
Speed |
13,6 Knots |
|
Built |
1988 |
|
Launch date |
12.09.1987 |
|
Date of completion |
06.1988 |
|
Builder |
Alstom Marine Chantiers de l'Atlantique |
|
Yard number |
D86 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
2x Pielstick - 4 stroke 8 cylinder 280 x 290 mm internal combustion engine - each 2.355 kW total 4.710 kW/ 6.400 hp at 1.000 rpm Built: 1987 Builder: Alstom Marine Paris - France |
|
Propelling system |
2x Screw propeller controllable pitch at 189 rpm |
|
Total installed engine power |
11.410 kW |
|
Total installed diesel power |
12.140 kW |
|
Auxiliary engines |
1.989 kW |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V |
|
Generators |
1x Diesel generatorset 250 kVA - 200 kW - 557 hp 3x Diesel generatorsets each 600 kVA - 480 kW - 557 hp |
|
Number of holds |
1 |
|
Hopper capacity |
4.000 m³ |
|
Dredging depth |
27,00 m |
|
Maximum dredging depth |
32,00 m |
|
Suction pipe diameter |
900 mm |
|
Dumping system |
Bottom doors |
|
Pumps (trailing) |
2x 2.355 kW |
|
Fuel capacity |
1.319 m³ |
|
Accommodation |
50 persons |
|
Manager |
Jan De Nul |
|
Operator |
Jan De Nul Group |
|
Owner |
Mexicana De Dragados C.V. S.A. |
