Marieke
Zeebrugge 01 September 2006

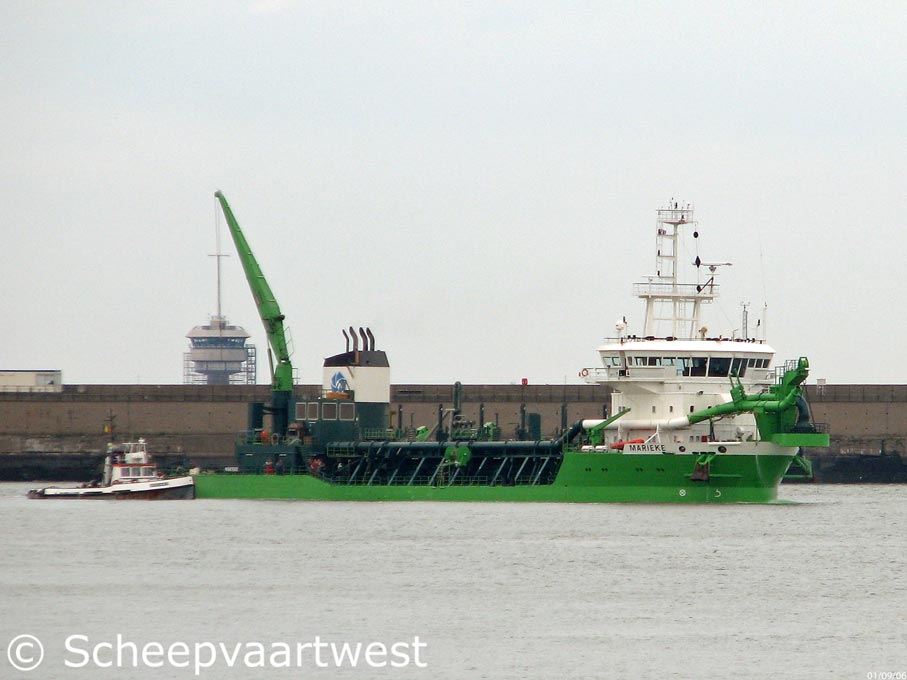

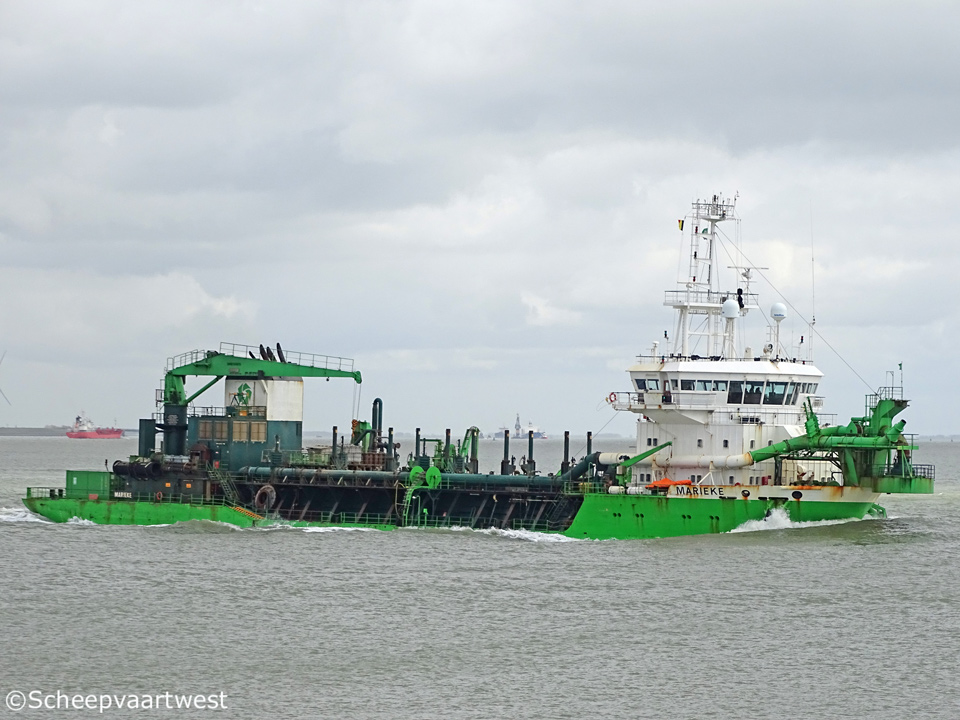

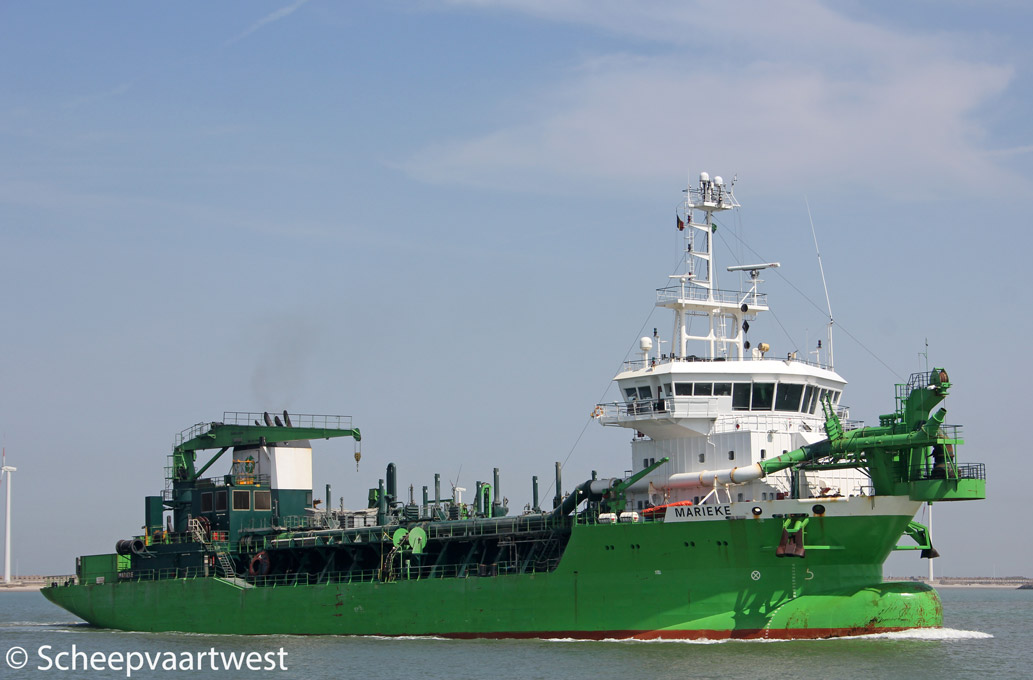

Marieke 03   Marieke 10   Marieke 11
Zeebruge 01/09/06 Antwerpen 06/05/13 Westerschelde 05/04/18


Name

MARIEKE

Location

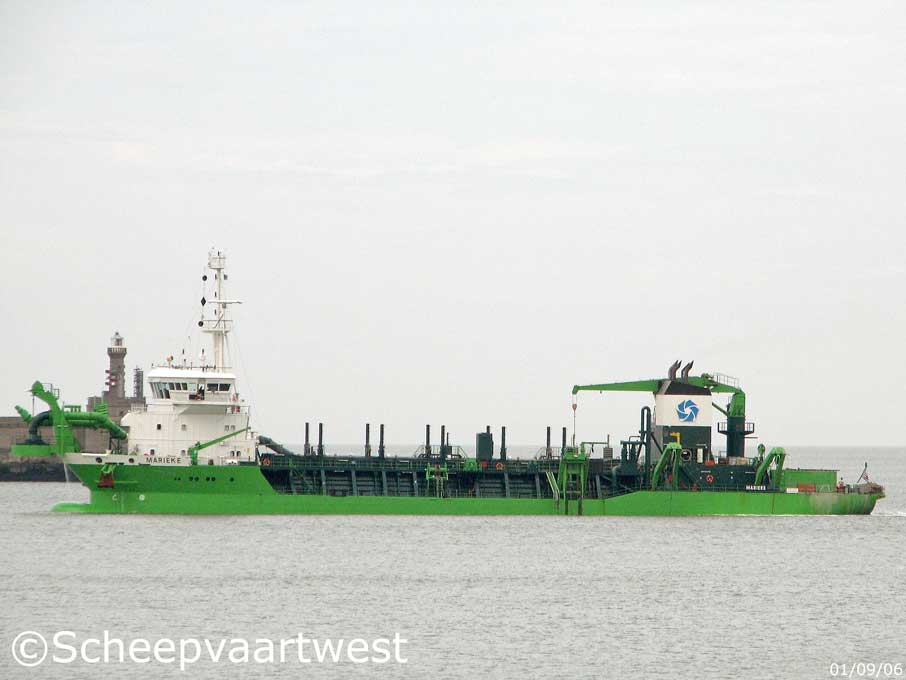

Zeebrugge 01 September 2006 dredging in the port

Type

Trailing suction hopper dredger

IMO-number

9360714

Call sign

LXMI

Flag

Grand Duchy of Luxembourg

Port of registry

Luxembourg

GT

5.005 t

DWT

8.327 t

NT

1.501 t

Length

97,50 m overall
84,95 m between perpendiculars

Breadth

21,60 m

Draught

5,70 m

Max.: 7,10 m

Freeboard

1.910 mm

Depth

7,60 m moulded

Speed

Loaded: 12,3 knots

Built

2006

Date of completion

20.07.2006

Builder

IHC Holland Merwede
Kinderdijk
The Netherlands

Yard number

01243

Hull material

Steel

Hull type

Single hull

Watertight compartments

8

Continuous decks

1

Main engine

2x Wärtsilä - 4 stroke 6 cylinder 260 x 320 mm internal combustion engine - 4.050 kW / 5.502 hp at 1.000 rpm

Built: 2005

Builder: Wärtsilä Italia S.p.A., Trieste - Italy

Electrical propulsion gen.

1x 1.000 kW 450 Volt

Number of screws

2x Screw propeller controllable pitch

Boilers

1x CHO INTEC 36,00 m² - 10,0 bar
2x CHR INTEC 100,00 m² - 10,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

1x Diesel generatorset 660 kVA - 528 kW - 912 hp

Emergency generators

1x Diesel generatorset 131 kVA - 105 kW - 190 hp

Total installed power

6.826 kW

With D.R.A.C.U.L.A: 7.926 kW

Total capacity of holds

5.319 m³

Loading capacity

8.106 t

Dredging depth

22,00 / 33,00/ 55,00 / 60,00 m

Suction pipe

Standard: 1 x 1.000 mm diameter

Long: 1x 700 mm

Discharge pipe

1x 9.000 mm diameter

Power on pumps

Dredging max.: 2.025 kW

Shore delivery max.: 4.050 kW

Fuel capacity

474,6 m³

Accommodation

For a crew of 14 persons

Owner

Dredging International NV

Haven 1025
Scheldedijk 30

B-2070 Zwijndrecht
Belgium

Registered owner

Dredging International Luxembourg SA

Group

DEME Group / Dredging International
Dredging Environmental And Marine Engineering N.V.
Haven 1025
Scheldedijk 30
2070 Zwijndrecht
Belgium

Last update

22 May 2013
