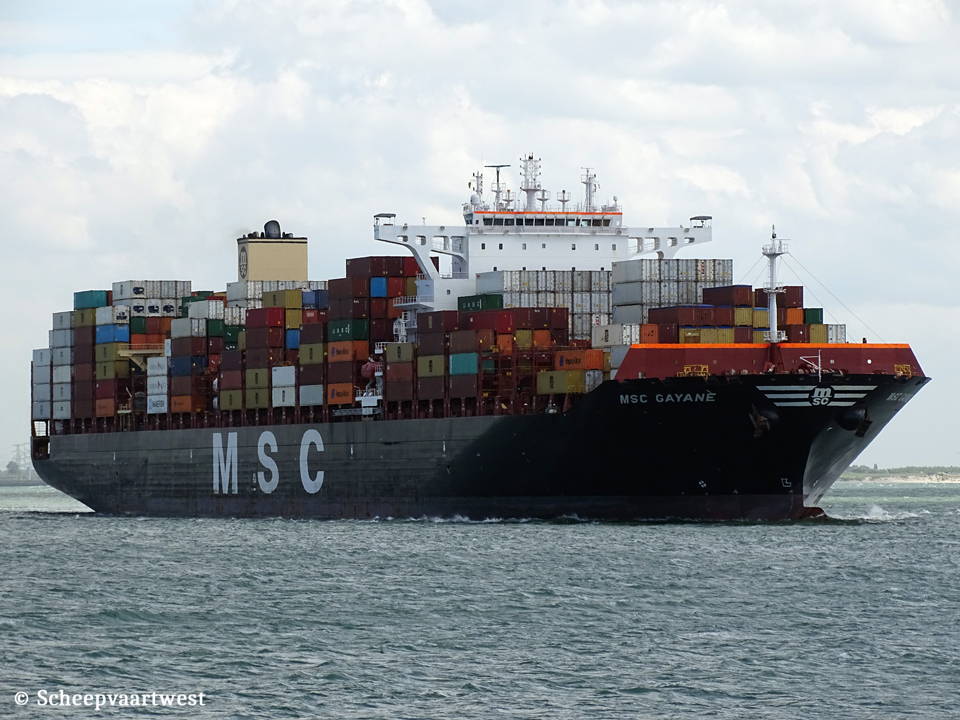

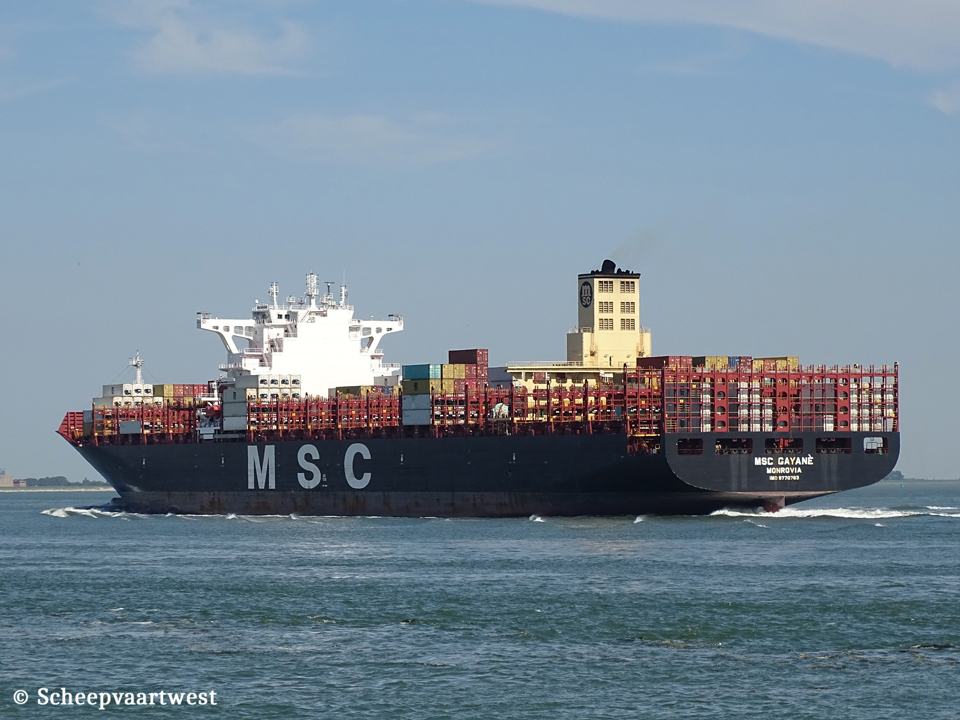

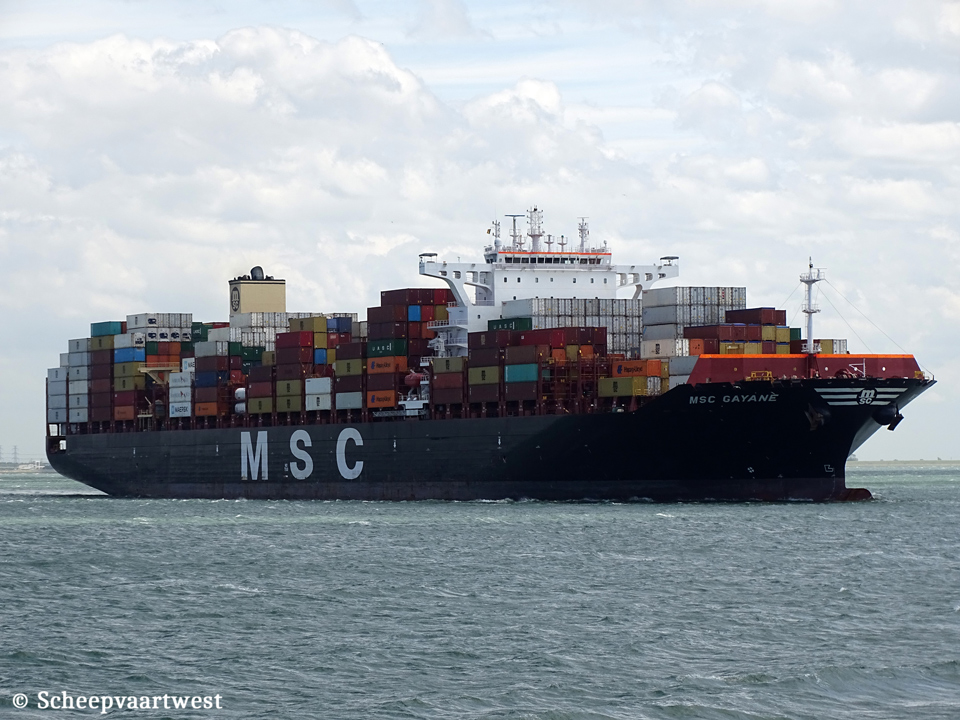

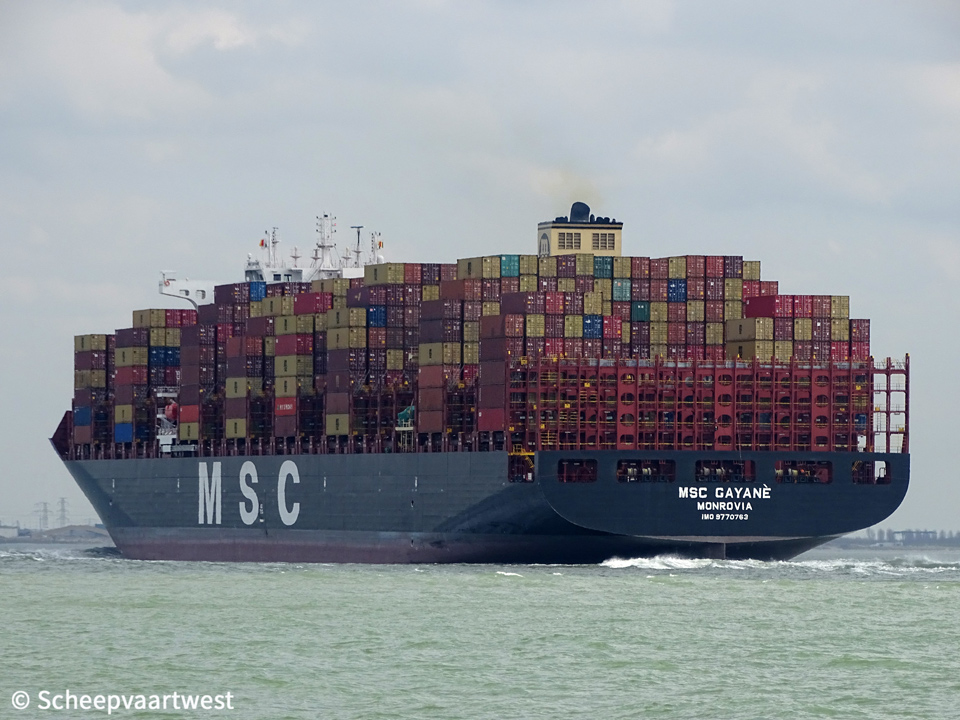

MSC Gayanè - IMO 9770763

Westerschelde 03 July 2020

Name

MSC GAYANÈ

Type

Cellular containership - Refrigerated cargo carriage

IMO-number

9770763

Call sign

D5OZ5

Flag

Liberia

Port of registry

Monrovia

GT

102.492 t

DWT

Summer: 120.500 t

NT

54.865 t

Number of 20ft containers

11.568

Container capacity 14t

7.700

Reefer capacity

700

Length

314,33 m overall

300,83 m between perpendiculars

Breadth

48,41 m extreme

Draught

Max: 14,60 m

Depth

24,80 m

Speed

Max: 23,3 knots

Built

2018

Keel laid

23/12/2015

Launch date

20/08/2017

Date of completion

08/01/2018

Builder

Jinhai Intelligent Manufacturing Co., Ltd.

1 Jinhai Avenue Changtu Town Daishan County

Zhoushan, 316291

China

Yard number

J0238

Hull material

Steel

Hull type

Double bottom

Double side

Main engine

1x Doosan/MAN-B&W 9S90ME-C10 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine 47.600 kW / 64.717 hp

Propellers

1x Fixed pitch mono-block propeller

Boilers

1x Auxiliary boiler, oil fired

1x Auxiliary boiler, exhaust gas heated

2 x Economizer exhaust gas heated for GE

Builder: KangRim

Generators

2x MAN 6L32/40 - 4 stroke single acting 6 cylinder 320 x 400 mm diesel engines each 3.000 kW coupled with generators each 2.900 kW

3x MAN 9L32/40 - 4 stroke single acting 9 cylinder 320 x 400 mm diesel engines each 4.500 kW coupled with generators each 4.400 kW

Emergency generator

1x MAN Truck & Bus D2842LE201 diesel generatorset 500 kW

Bow thruster

1x Nakashima tunnel bow thruster 3.500 kW

Tank capacities

Ballast: 35.254 m³

Anchor equipment

Length: 770,00 m

Diameter: 114 mm

Cargo gear

Gearless

Crew size

26

Commercial manager

MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Registered owner

Meridian 7 Ltd.

Care of MSC Mediterranean Shipping Co., SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

01 December 2021
