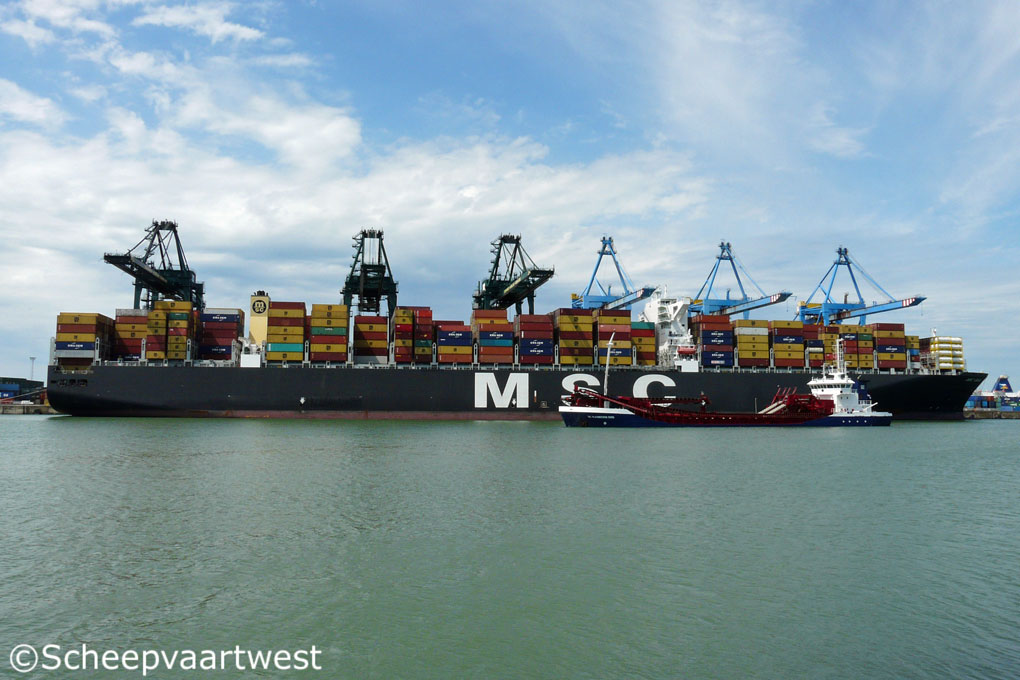

MSC Gaia 03
Zeebrugge 01 August 2012

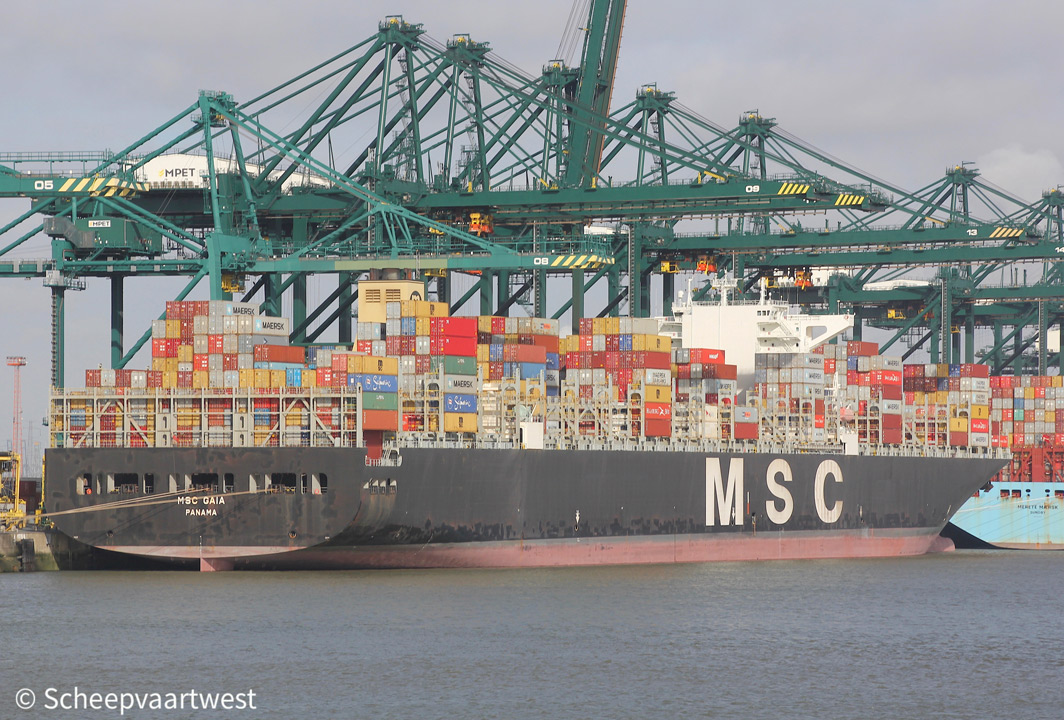

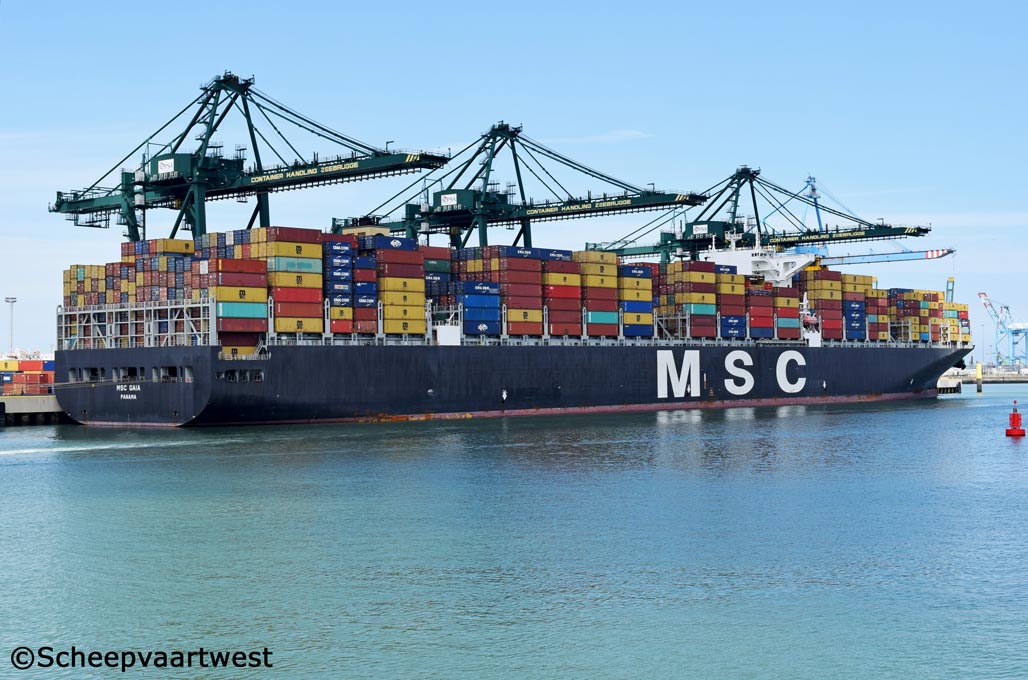

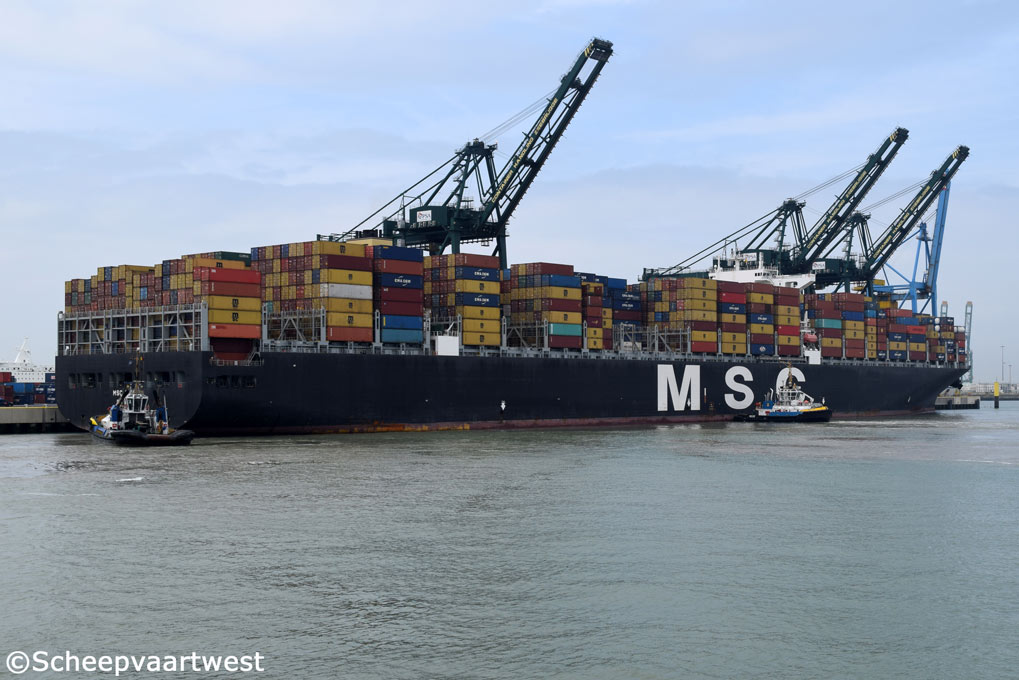

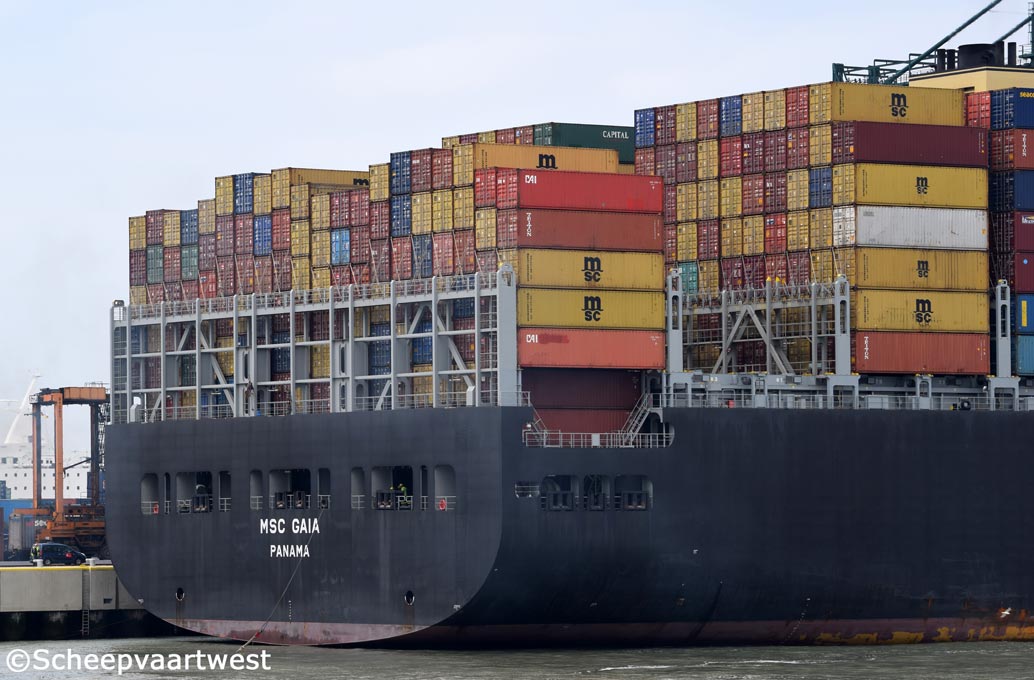

MSC Gaia 05   MSC Gaia 09   MSC Gaia 04   MSC Gaia 10
Zeebrugge 10/04/14 Zeebrugge 07/04/14 Zeebrugge 10/04/14   Antwerpen 23/10/18



Name

MSC GAIA

Type

Cellular containership

IMO-number

9401142

Call sign

3EXO7

Flag

Republic of Panama

Port of registry

Panama City

GT

151.559 t

DWT

156.084 t

NT

83.151 t

Number of 20ft containers

13.798

Container capacity 14t

10.500

Reefer point

1.000

Length

366,03 m overall

351,60 m registered

Breadth

51,29 m

Draught

Summer: 15,60 m

Forecastle

175,04 m

Bridge

164,84 m

Poop

20,02 m

Depth

29,90 m moulded

Speed

25,3 knots

Built

2010

Keel laid

14.12.2009

Launch date

27.02.2010

Date of completion

11.10.2010

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
656-710 Geoje 11
Republic of Korea

Yard number

1715

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN-B&W 12K98MC-C Mk7 - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 72.240 kW at 104,0 rpm

Year of manufacture: 2009

Manufacturer: Doosan Engine Co., Ltd.
69-3, Sinchon-dong
642-370 Changwon 11
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104 rpm

Boilers

1x Steam boiler, exhaust gas heated - 9,81 bar

Heating surface: 1.204,0 m²

Year of manufacture: 2009

1x Steam boiler, oil fired - 9,81 bar

Heating surface: 76,0 m²

Year of manufacture: 2010

Manufacturer: KangRim Heavy Industries Co., Ltd.
40, Wongnam-dong
642-290 Changwon Gyeongnam 11
Republic of Korea

Electric installations

4x Plant each 6.600 V - 4.225 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 36 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 215 Ah

1x Plant 24 V - 300 Ah

1x Plant 110 V - 360 Ah

Generators

4x MAN-B&W 7L32/40 main diesel generatorsets each 4.225 kVA / 3.380 kW

Emergency generator

1x Diesel generatorset 625 kVA

Batteries

2x Batteries for automation each 360 Ah

1x Battery for UPS navigation 300 Ah

1x Battery for start emergency engine 215 Ah

1x Battery for UPS radio 200 Ah

1x Battery for automation 92 Ah

3x Batteries for automation each 36 Ah

Compressed air receivers

2x Receivers each 16.500 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 250 litres - 7,0 bar

Bow thruster

1x Transverse thruster - 3.400 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg

Chain length: 770,00 m

Cargo gear

None

Crew

24

Crew size

34

Manager

MSC Mediterranean Shipping Company S.r.l.
Via Francesco Ciampa, 29
80063 Piano di Sorrento NA
Italy

Operator

MSC

Registered owner

Compania Naviera Gaia S.A.
Calle 50, Edificio Universal 50 Planta Baja
Panama City
Republic of Panama
