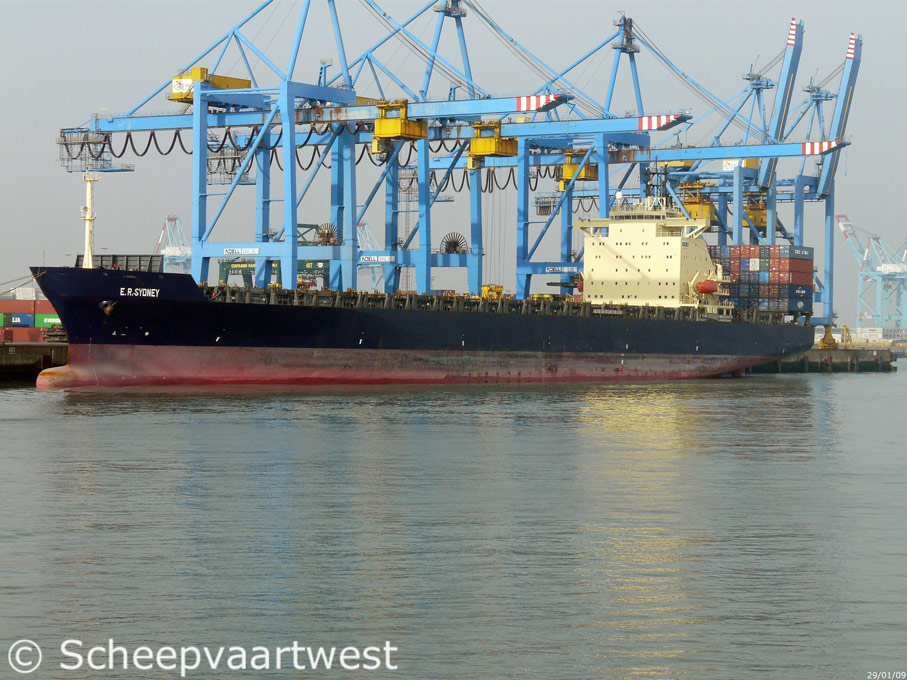

E.R. Sydney 03
Zeebrugge 29 January 2008



Name

E.R. SYDNEY

Previous names

Launch as: Zenith Globe
1998-2001 Chayang Zenith
2001-2002 Amazonas
2002-2003 YM Napoli
2003 E.R. Sydney

Type

Cellular Containership

IMO-number

9169495

Call sign

DACP

Flag

Germany

Previous flag

2004 Liberia

Port of registry

Hamburg

GT

36.603 t
Suez: 39.001 t

DWT

Summer: 45.384 t

NT

15.610 t
Suez: 30.227 t

Number of 20ft containers

3.354

Container capacity 14TH

2.470

Reefer point

300 reefer sockets 440 V / 60 Hz

Length

231,53 m overall
222,20 m between perpendiculars

Breadth

32,25 m moulded

Draught

Summer: 12,20 m

Forecastle

9,88 m

Freeboard

6.800 mm

Depth

19,00 m moulded

Speed

22,0 knots

Line

CMA CGM Caribs

Service

PEX2

Built

1998

Keel laid

07.04.1998

Launch date

03.07.1998

Date of completion

09.1998

Builder

Halla Engineering & Heavy Industries Ltd.
Samho Shipyard
Inchon
South Korea

Yard number

0229

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull
Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Hyundai /B&W Type 8K 80 MC-C - 2 stroke single acting 8 cylinder 800 x 2.300 mm diesel engine - 28.880 kW
Built: 1998
Builder: Hyundai Heavy Industries Ulsan - South Korea

Propeller

1x Solid propeller (keyless) - aft

Boiler

1x Steam boiler, oil fired - 8,83 bar
Heating surface: 33,60 m²
Year of manufacture: 1998
Manufacturer: KangRim Ind. Co., Ltd. (1st Factory)
1x Steam boiler, exhaust gas heated - 8,83 bar
Heating surface: 791,00 m²
Year of manufacture: 1998
Manufacturer: KangRim Ind. Co., Ltd. (1st Factory)

Electric installations

1x 440/220 V - 5.625 kVA
1x 440 V - 188 kVA

Generators

3x Hyundai B&W Main diesel generatorsets each 1875 kVA / 1,500 kW

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers, each 9.000 litres - 32,37 bar
1x Receiver 250 litres - 32.37 bar
1x Receiver 250 litres - 7,0 bar

Bow thruster

1x Transverse thruster Brunvoll - 1.323 kW forward

Cargo capacity

Grain: 70.764 m³

Tank capacities

Water ballast: 15.558 m³
Bunker: 3.556 t
Fuel oil: 3.787 m³

Anchor equipment

3x Anchors weight each 10.500 kg
Chain length: 660,00 m

Cargo gear

Gearless

Crew

23

Manager

ER Schiffahrt GmbH & Cie. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Operator

CMA CGM

Owner

MS 'E.R. SYDNEY' Schiffahrtsges. mbH & Co. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany
