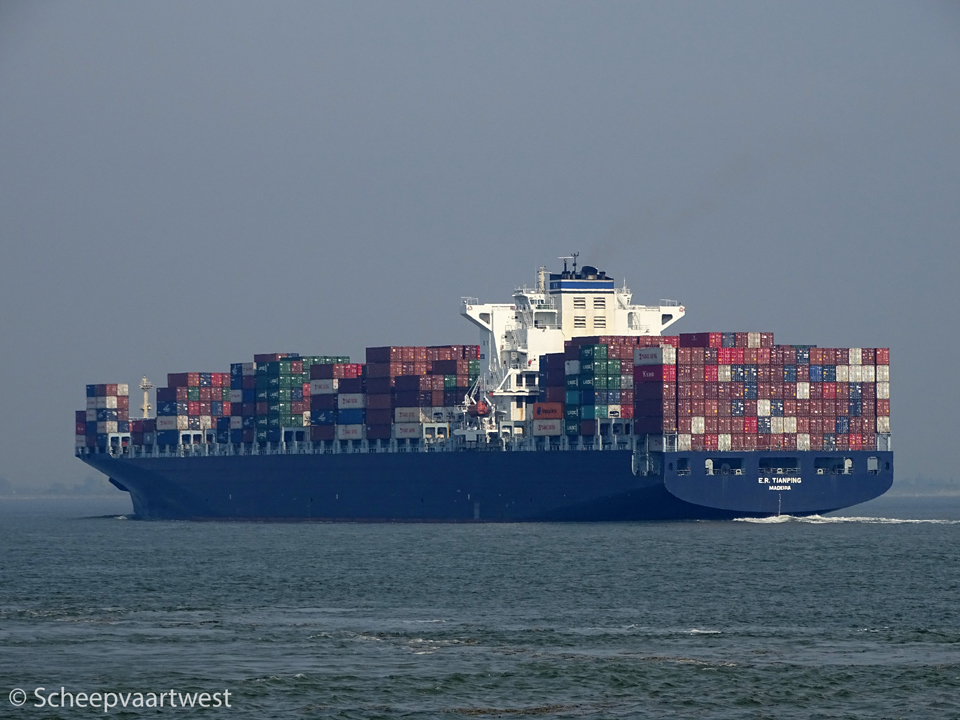

E.R. Tianping 01

Westerschelde 29 May 2017



Name

E.R. TIANPING

Previous names

COSCO Napoli

Type

Cellular containership

Post-Pamamax Class

IMO-number

9305489

Call sign

CQGU

Flag

Portugal

Port of registry

Madeira

Previous flags

2006 - 2011 Liberia, Monrovia

2011 - 2015 Germany, Hamburg - Call sign: DDGK2

GT

91.649 t

DWT

Summer: 101.491 t

NT

56.693 t

Number of 20ft containers

On deck: 4.698

In hold: 3.835

Total: 8.533

Container capacity 14t

6.166

Reefer capacity

On deck: 500

In hold: 200

Total: 700

Length

334,08 m overall

319,00 m between perpendiculars

Breadth

42,80 m extreme

Draught

Max: 14,67 m

Forecastle

160,47 m

Bridge

152,47 m

Depth

24,60 m

Speed

Max: 25,4 knots

Built

2006

Keel laid

11/12/205

Launch date

09/03/2006

Date of completion

09/05/2006

Builder

Hyundai Samho Heavy Industries Co., Ltd.
Ulsan
Souith Korea

Yard number

S259

Hull material

Steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W 12K98 MC - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine 68.640 kW at 94,0 rpm

Built: 2006

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar
Heating surface: 42,17 m²

1x Steam boiler, exhaust gas heated - 10,0 bar
Heating surface: 677,0 m²

Built: 2005

Manufacturer: Alfa Laval Qingdao Ltd.

Electric installations

1x Plant 6.600 V - 2.933 kVA
1x Plant 6.600 V - 2.933 kVA
1x Plant 6.600 V - 2.933 kVA
1x Plant 6.600 V - 3.733 kVA
1x Plant 6.600 V - 3.733 kVA
1x Plant 450 V - 525 kVA
1x Plant 12 V - 92 Ah
1x Plant 24 V - 200 Ah
1x Plant 24 V - 500 Ah

Generators

3x MAN 7L27/38 main diesel generatorsets each 2.310 kW / 2.933 kVA

2x MAN 9L27/38 main diesel generatorsets each 2.944 kW / 3.733 kVA

Emergency generator

1x Cummins KTA19-D(M) diesel generatorset 525 kVA

Batteries

2x Batteries for UPS lighting each 500 Ah
1x Battery for emergency lighting 200 Ah
1x Battery for diesel control 92 Ah

Compressed air receivers

2x Receivers each 16.000 litres - 30,0 bar
1x Receiver 250 litres - 30,0 bar
1x Receiver 150 litres - 30,0 bar
1x Receiver 250 lighters - 7,7 bar
1x Receiver 2.000 litres - 7,0 bar

Bow thruster

1x Transverse thruster 2.500 kW, forward

Number of holds

9

Number of hatches

19

Tank capacities

Ballast: 25.224,5 m³

Anchor equipment

3x Anchors weight each 18.800 kg

Length: 742,50 m

Diameter: 107 mm

Cargo gear

Gearless

Crew size

31

Manager

ZEABORN Ship Management GmbH & Cie. KG
Ludwig-Erhard-Straße 22
20459 Hamburg

Germany

Previous managers

E.R. Schiffahrt GmbH & Cie. KG

Owner

ER Schiffahrt
Hamburg
Germany

Registered owner

MS "E.R. TIANPING" Schiffahrtsgesellschaft mbH & Co. KG

Latest data adjustment

17 February 2019
