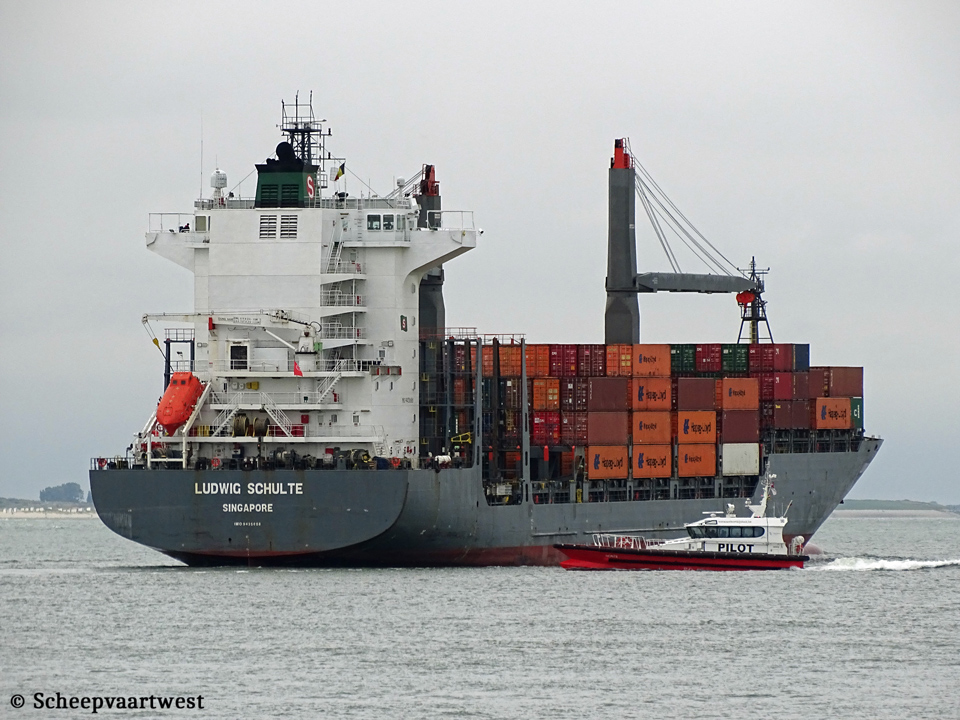

Westerschelde 16 September 2019 |
 |
 |
|

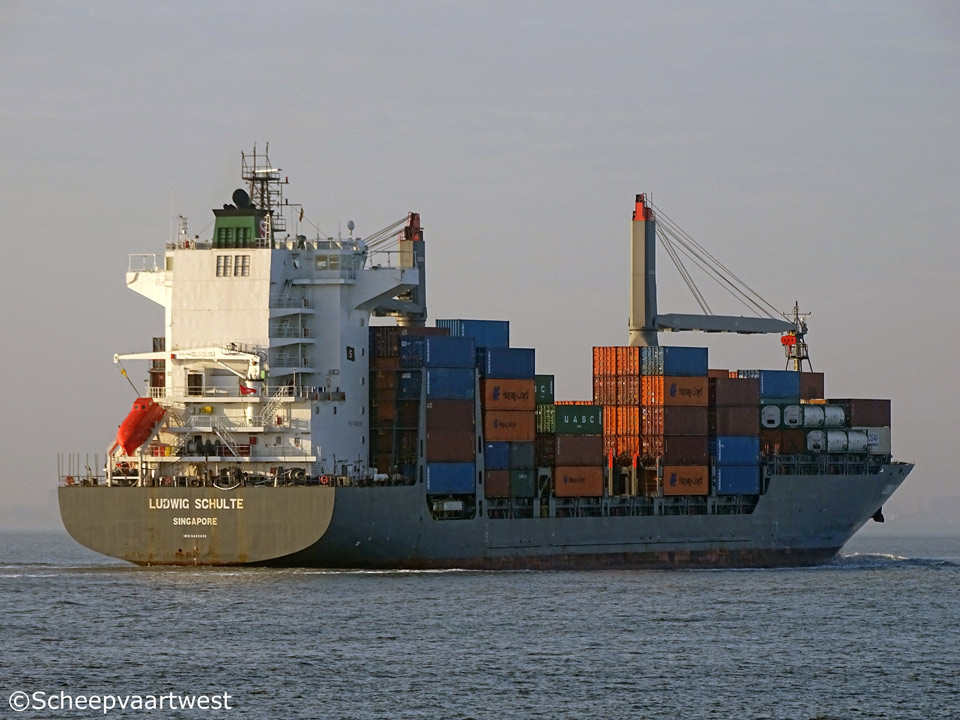

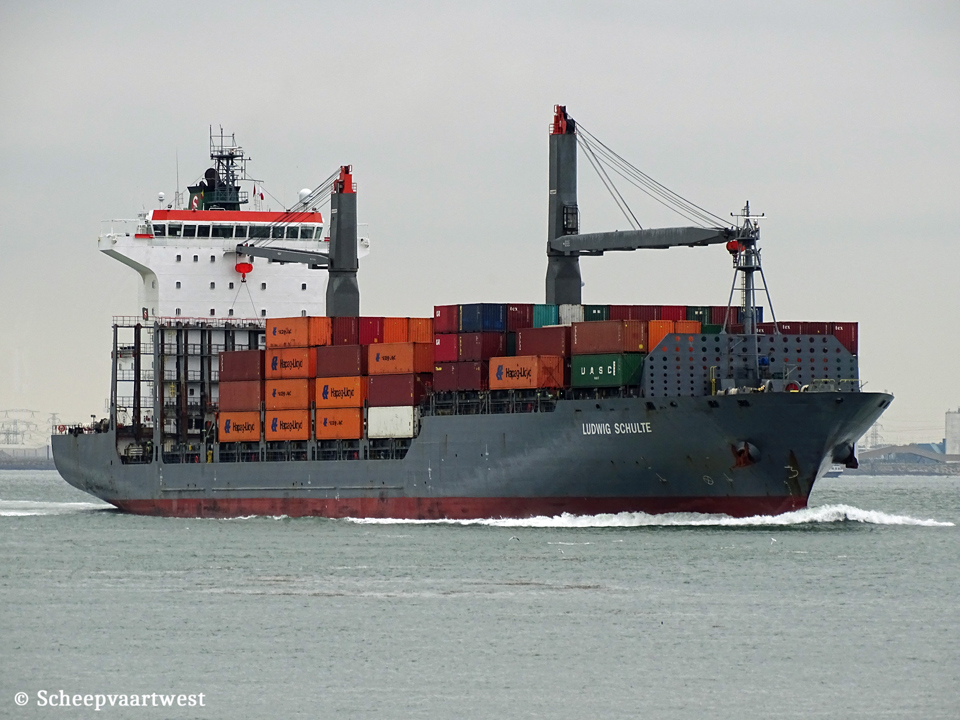

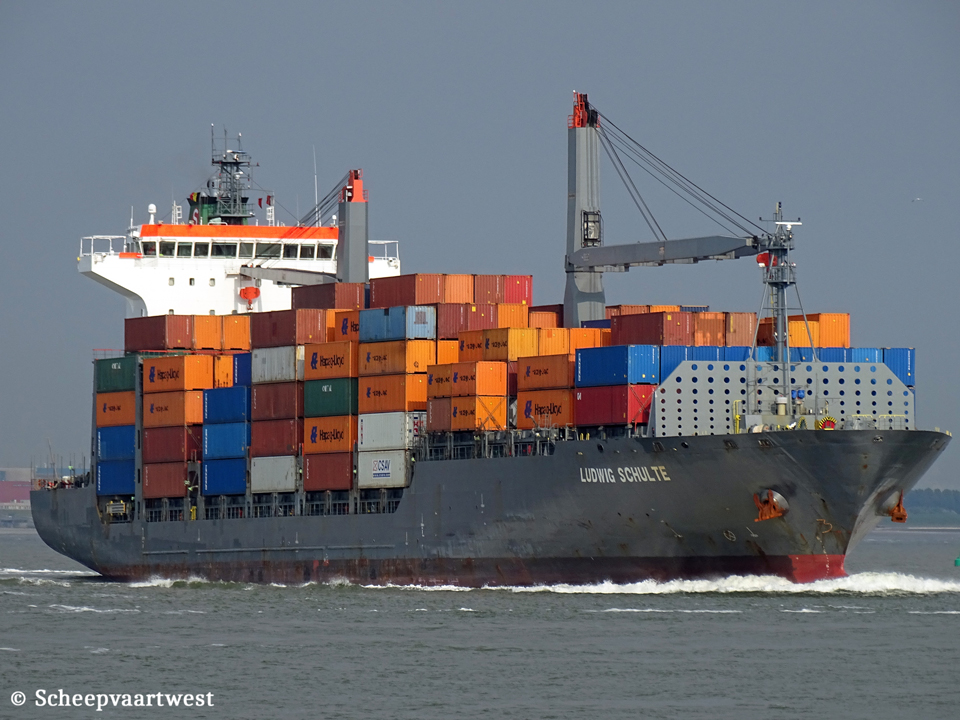

| Westerschelde 16/09/19 | Westerschelde 14/12/16 |
|
Name |
LUDWIG SCHULTE |
|
Type |
Cellular containership |
|
IMO-number |
9435686 |
|
Call sign |
9VFK9 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
18.321 t |
|
DWT |
Summer: 23.175,2 t |
|
NT |
10.392 t |
|
Number of 20ft containers |
In hold: 700 On deck: 1.036 Total: 1.736 |
|
Container capacity 14t |
1.330 |
|
Reefer capacity |
On deck: 220 In hold: 40 Total: 260 |
|
Length |
175,48 m overall 165,00 m between perpendiculars |
|
Breadth |
27,45 m extreme |
|
Draught |
10,90 m |
|
Keel to mast end |
51,29 m |
|
Depth |
14,30 m moulded |
|
Speed |
Max.: 20,5 knots |
|
Built |
2008 |
|
Keel laid |
19/03/2008 |
|
Launch date |
23/05/2008 |
|
Date of completion |
07/07/2008 |
|
Builder |
Guangzhou Wenchong Shipyard Co., Ltd. Guangzhou China |
|
Yard number |
GWS368 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Hudong 7S60MC-C-Mk VII - 2 styroke 7 cylinder combustion engine MCR: 15.785 kW at 105 rpm CSR: 14.260,5 kW at 102 rpm Starter type: compressed air direct |
|
Propellers |
1x Solid propeller (keyless) - Fatvat 105,0 rpm |
|
Rudder |
1x Semi-balanced type |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 25,5 m² Heating surface: 335,0 m² Manufactrurer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
2x Plant 450 V - 1.493,8 kVA 1x Plant 450 V - 1.995 kVA 1x Plant 450 V - 212.5 kVA 1x Plant 24 V - 42 Ah 1x Plant 24 V - 80 A 1x Plant 24 V - 180 Ah 1x Plant 24 V - 196 Ah |
|
Generators |
1x Main diesel generatorsets 1.995 kVA 2x MAN 6L28/32H main diesel generatorsets each 1.493,8 kVA at 720 rpm |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset 170 kW / 212,5 kVA at 1.800 rpm |
|
Batteries |
1x Battery for UPS navigation 196 Ah 1x Battery for emergency lighting 180 Ah 1x Battery for start emergency engine 80 Ah 1x Battery for automation 42 Ah |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 30,0 bar 1x Receiver 50 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 350 litres - 8,0 bar |
|
Bow thruster |
1x E-motor driven controllable pitch thruster 900 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
27.172 m³ |
|
Number of hatches |
8 One hatch abt.: 12,48 x 20,13 m Two hatches abt.: 12,80 x 25,03 m Two hatches abt.: 12,80 x 25,03 m Two hatches abt.: 12,80 x 25,03 m One hatch abt.: 12,48 x 25,03 m |
|
Tank capacities |
Heavy fuel oil abt.: 1.803 m³ Diesel oil abt.: 221 m³ Fresh & portable water abt.: 200 m³ Ballast water abt.: 7.784 m |
|
Anchor equipment |
3x Anchors weight each 7.800 kg Length: 632,50 m Diameter: 68 mm |
|
Lifting equipment |
1x Crane - SWL 6,0 t 1x Crane - SWL 4,0 t |
|
Cargo gear |
2x Electro-hydraulic drive cranes - SWL 45,0 t each |
|
Crew size |
30 |
|
Commercial manager |
Bernhard Schulte Shipmanagement (Cyprus) Ltd. |
|
ISM manager |
Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG Vorsetzen 54 20459 Hamburg Germany |
|
Owner |
West Coast Park Shipping Co. Pte. Ltd. Care of Hanseatic Chartering Ltd. Hanseatic House, 111, Spyrou Araouzou Street 3036 Limassol Cyprus |
|
Latest data adjustment |
07 January 2022 |
