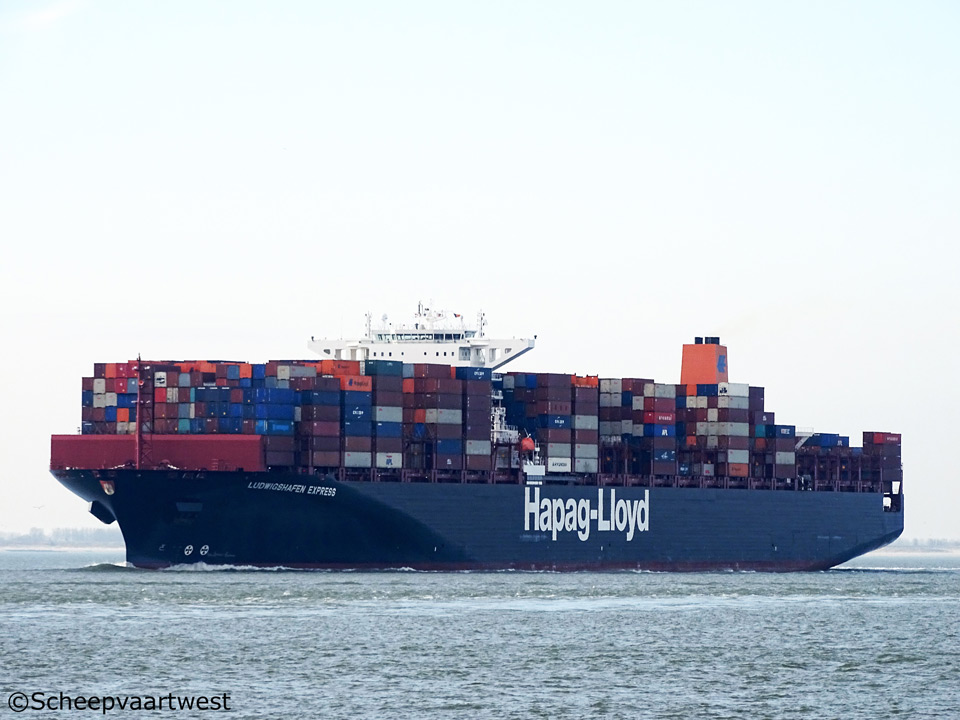

Ludwigshafen Express 01

Westerschelde 28 January 2017

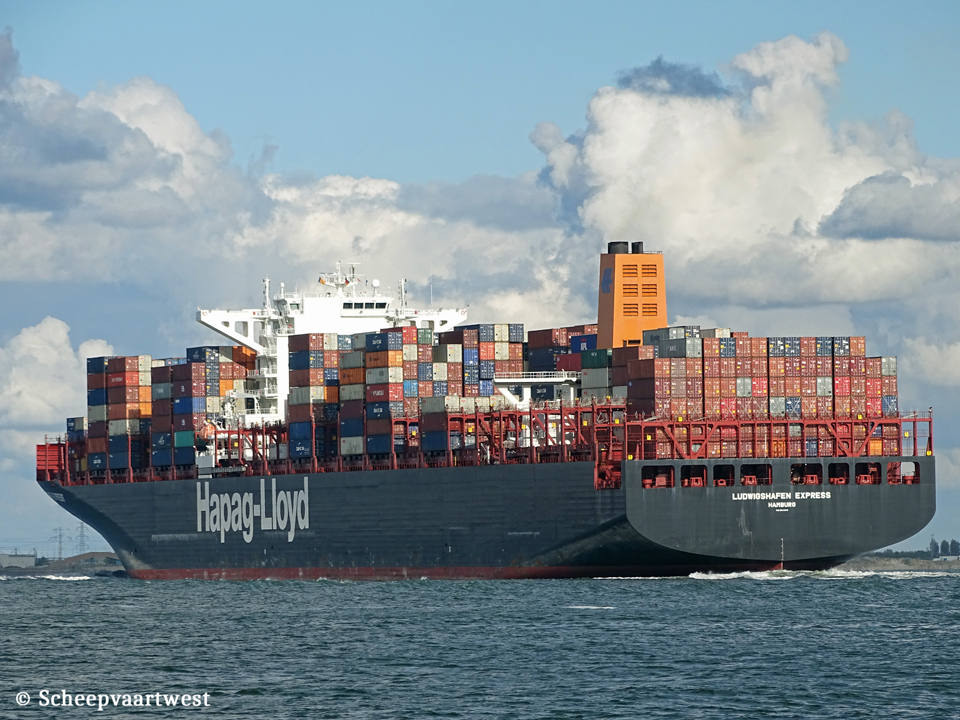

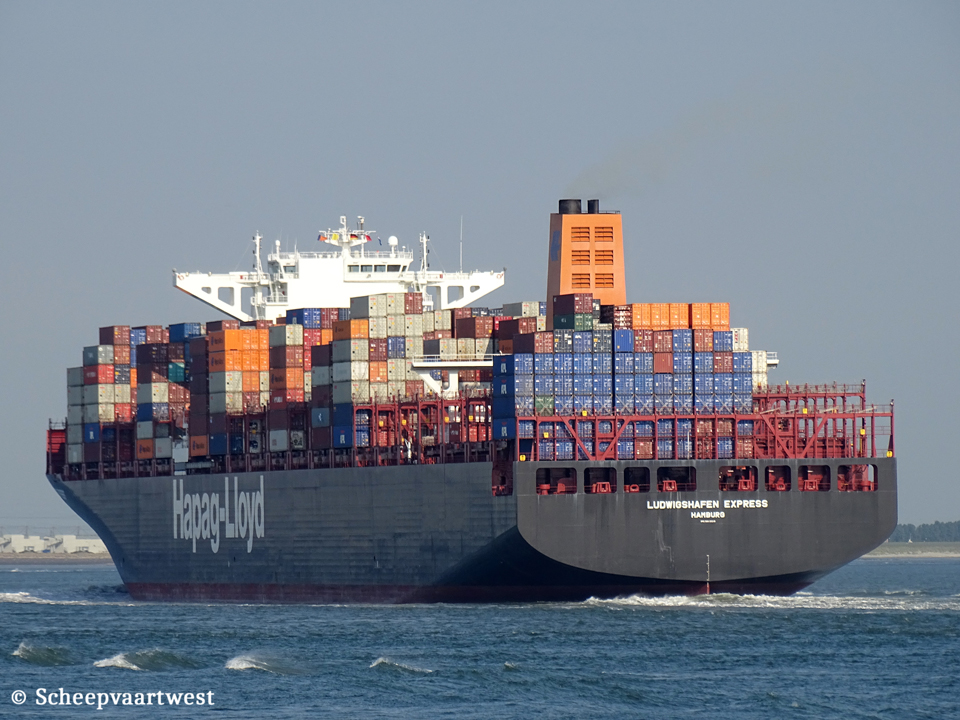

Ludwigshafen Express IMO 9613018 02   Ludwigshafen Express IMO 9613018 03
Westerschelde 18/08/16   Westerschelde 28/04/17


Name

LUDWIGSHAFEN EXPRESS

Type

Cellular containership

IMO-number

9613018

Call sign

DDOR2

Flag

Germany

Port of registry

Hamburg

GT

142.295 t

DWT

Summer: 142.035,7 t

NT

60.481 t

Number of 20ft containers

13.196

Container capacity 14t

9.082

Reefer capacity

800

Length

366,52 m overall

350,00 m between perpendiculars

Breadth

48,35 m extreme

48,20 m moulded

Draught

15,50 m

Depth

29,85 m

Speed

Max.: 25,2 knots

Built

2014

Keel laid

15/04/2013

Launch date

06/09/2013

Date of completion

03/04/2014

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

2499

Hull material

Steel

Main engine

1x MAN-B&W 11K98ME7 - 2 stroke 11 cylinder combustion engine 58.274 kW / 79.229 bhp

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, composite

Shaft generator

5.140 kW

Generators

3x Daihatsu 8DC-32e main diesel generatorsets each 3.890 kW

1x Daihatsu 6DC-32e main diesel generatorset 2.933 kW

Emergency generator

1x Scania DI16 55M diesel generatorset

Bow thruster

2x 1.800 kW

Tank capacities

Ballast: 34.519,4 m³

Anchor equipment

Length: 770,00 m

Diameter: 122 mm

Cargo gear

Gearless

Manager

Hapag-Lloyd Aktiengesellschaft

Hapag-Lloyd Haus

Ballindamm 25

20095 Hamburg

Germany

Operator

Hapag Lloyd

Registered owner

Hapag-Lloyd Aktiengesellschaft

Hapag-Lloyd Haus

Ballindamm 25

20095 Hamburg

Germany

Latest data adjustment

04 August 2023
