Name |

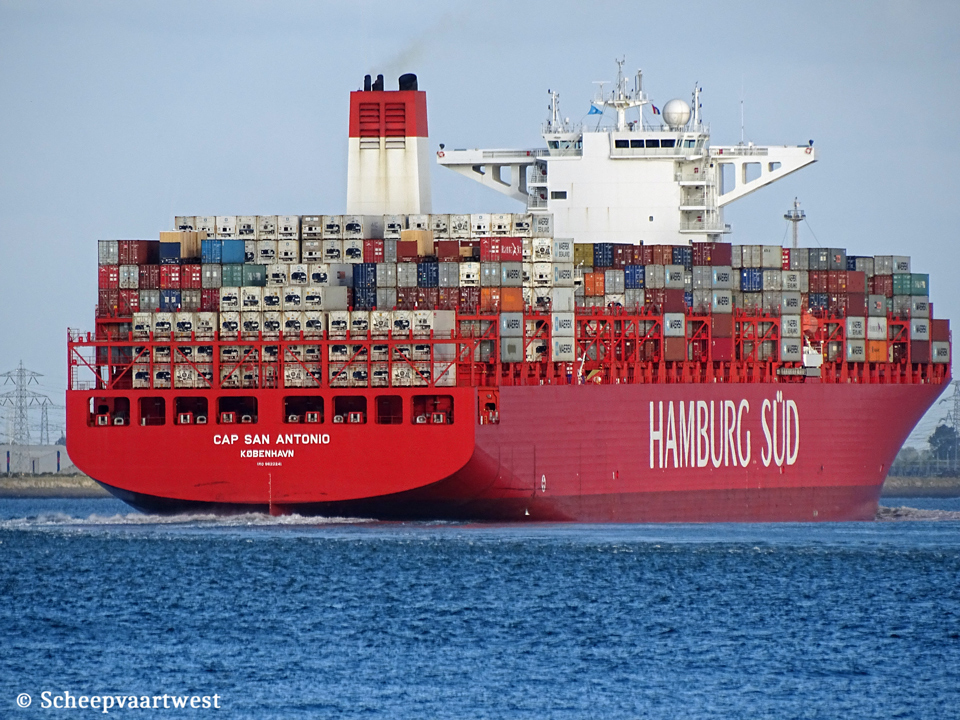

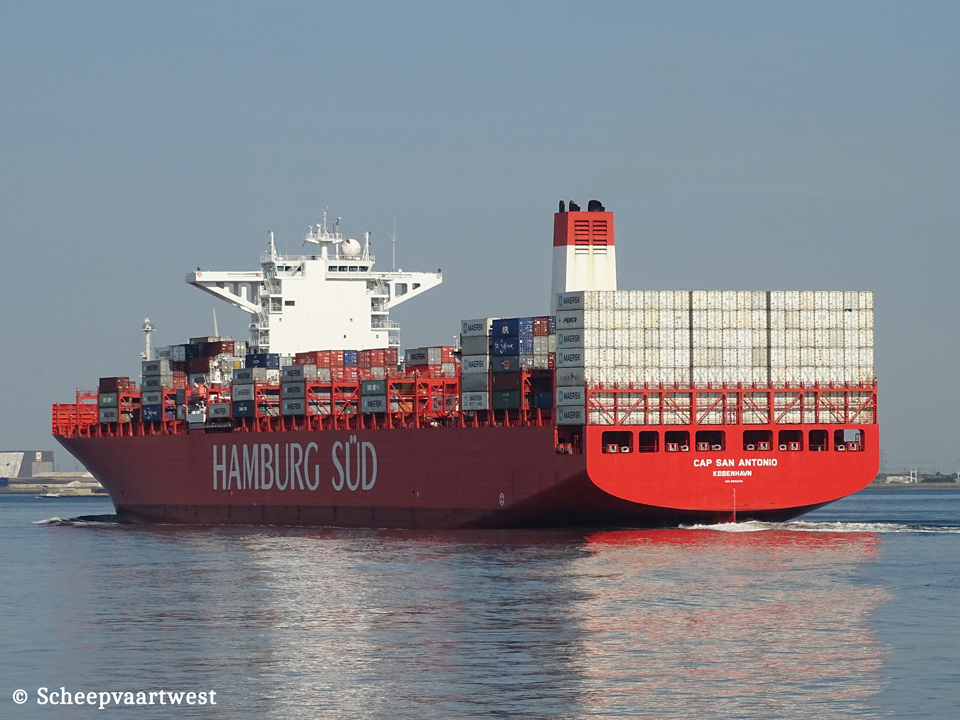

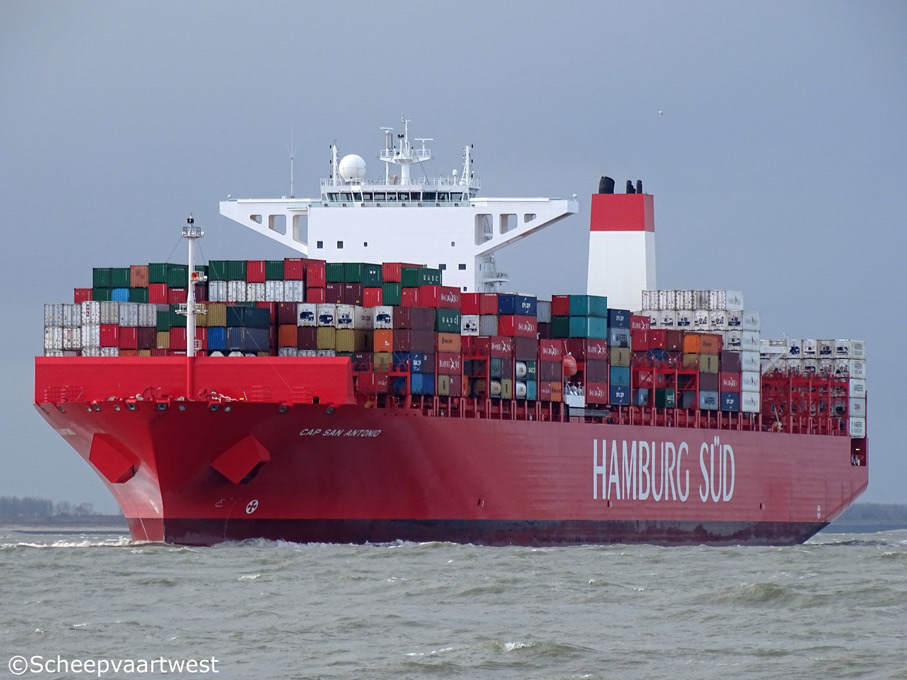

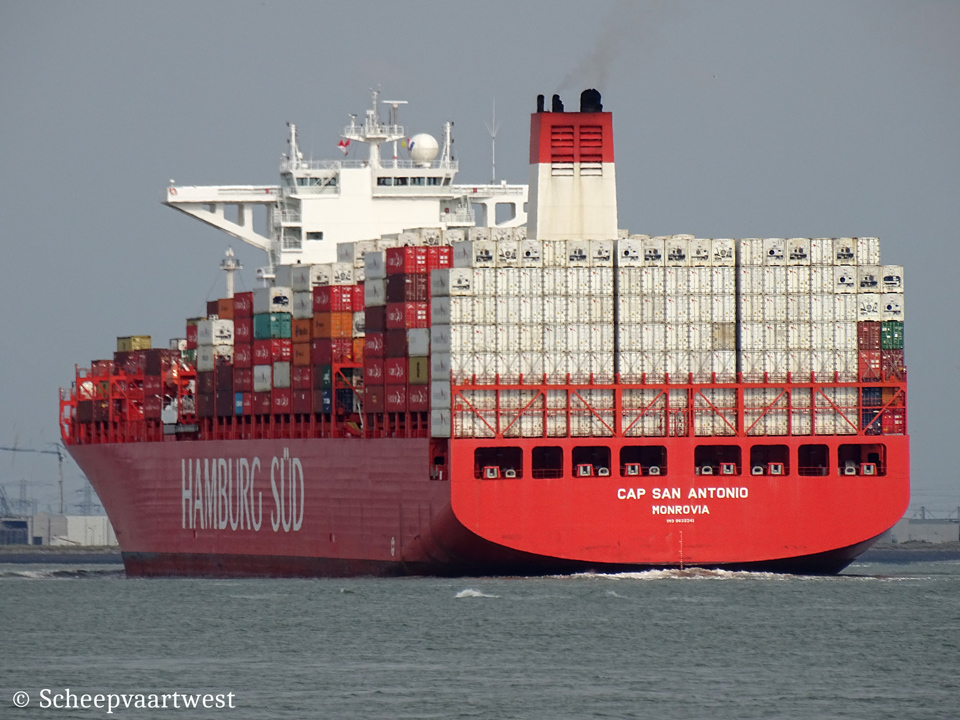

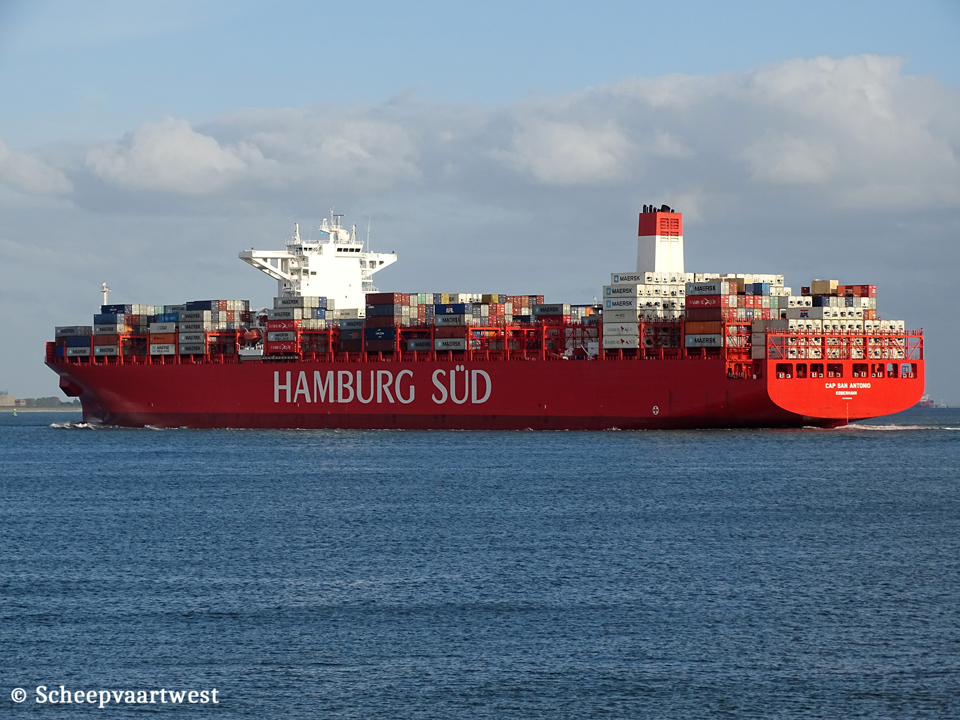

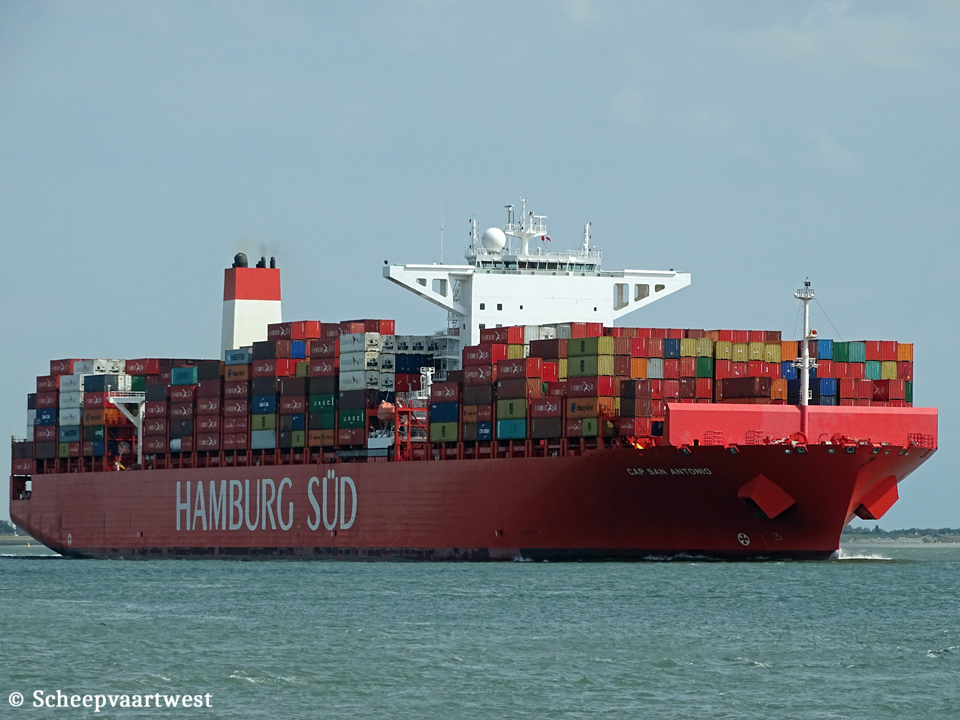

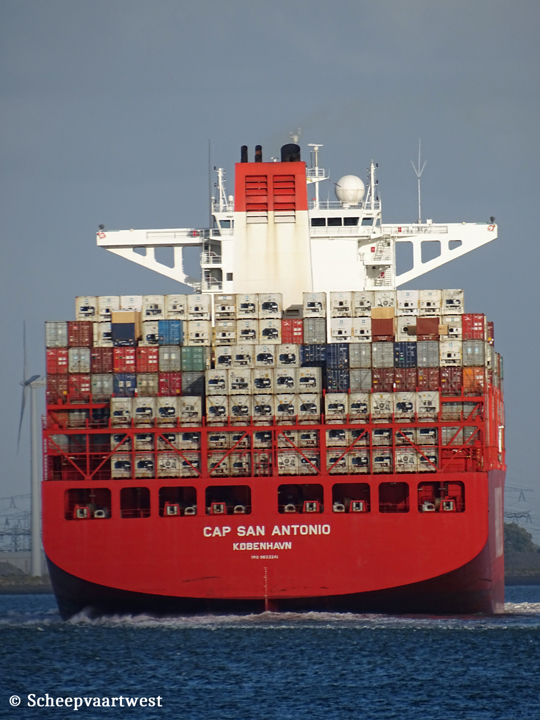

CAP SAN ANTONIO |
|
Type |
Cellular containership - Carriage of dangerous goods Post-Panamax |
|
IMO-number |
9622241 |
|
Call sign |
OXCQ2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flag |
06/2014 - 03/2018 Liberia, Monrovia - Call sing: D5FI9 |
|
GT |
118.938 t registered |
|
DWT |
Summer: 124.458 t |
|
NT |
51.759 t registered |
|
Number of 20ft containers |
9.669 |
|
Number of 14 t containers |
7.050 |
|
Reefer capacity |
2.100 |
|
Length |
333,20 m overall 318,01 m between perpendiculars |
|
Breadth |
48,20 m |
|
Draught |
14,00 m |
|
Freeboard |
5.582 mm |
|
Depth |
26,80 m moulded |
|
Speed |
Max.: 22,8 knots Service: 21,0 knots |
|
Built |
2014 |
|
Keel laid |
02/07/2013 |
|
Launch date |
27/09/2013 |
|
Delivery date |
07/01/2014 |
|
Builder |
Hyundai Heavy Industries, Co. Ltd. Ulsan South Korea |
|
Yard number |
2525 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7S90ME-C9.2 - 2 stroke single acting 7 cylinder 900 x 3.260 mm combustion engine Mcr 40.670 kW / 55.295 hp at 84,0 rpm Manufacturer: Builder: Hyundai Heavy Industries Co.,Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller- aft at 84,0 rpm |
|
Boilers |
1x Exhaust gas boiler 1x Auxiliary boiler |
|
Generators |
5x Hyundai Himsen 9H32/40 - 4 stroke 9 cylinder 320 x 400 mm diesel engines each Mcr 4.500 kW connected with generators each 4.320 kW Builder: Hyundai Himsen |
|
Bow thruster |
1x Tunnel thruster 2.500 kW / 3.399 bhp, forward 1x Tunnel thruster1.900 kW / 2.583 bhp, aft |
|
Number of holds |
8 |
|
Number of tanks |
Ballast: 26 Fuel oil: 12 Lubricating oil: 7 Waste water: 3 Diesel oil: 3 Fresh water: 3 Chain: 2 Sludge: 2 |
|
Tank capacities |
Diesel Oil: 1.522,1 m³ Freshwater: 598.40 m³ Fuel Oil: 8.773,6 m³ Lube Oil: 453,8 m³ Tank Ballast: 31.327,8 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
ISM & commercial manager |
Maersk Line A/S Esplanaden 50 1263 Copenhagen K Denmark |
|
Operator |
Hamburg Süd Hamburg Germany |
|
Registered owner |
Maersk Line A/S Esplanaden 50 1263 Copenhagen K Denmark |
|
Previous owner |
Containershiffsreederei MS Cap San Antonio GmbH |
|
Latest data adjustment |
03 August 2022 |
