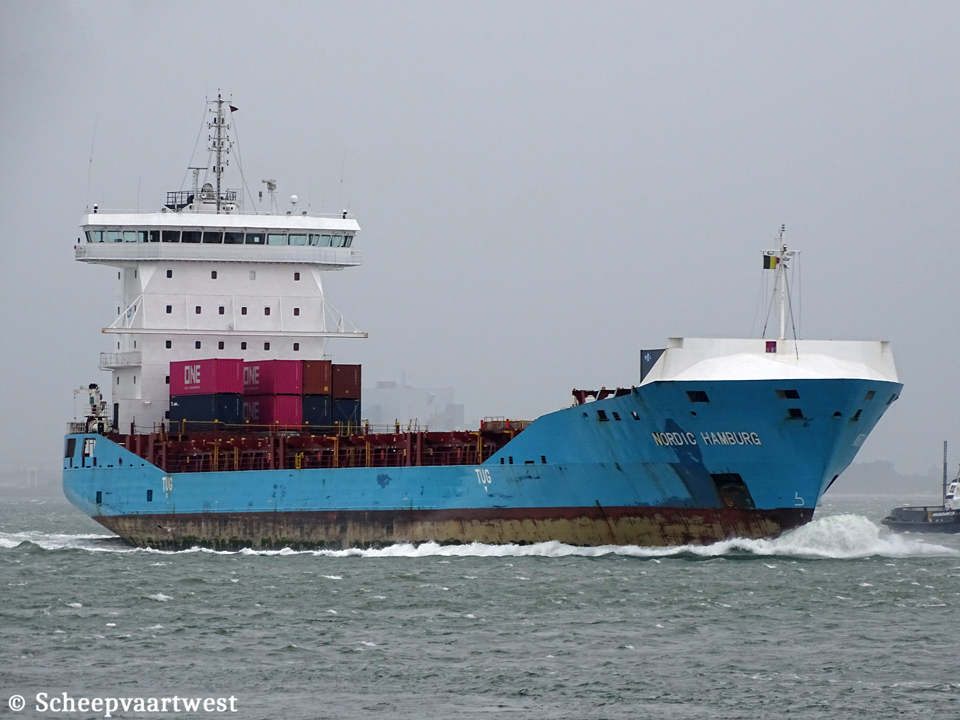

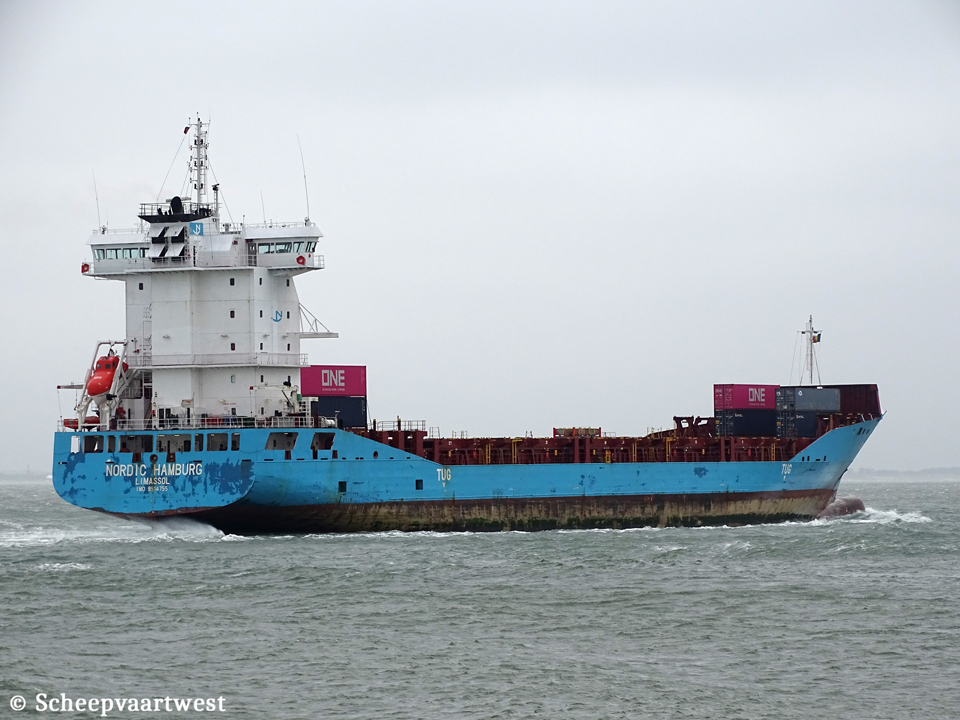

Westerschelde 10 May 2020 |
 |
 |
|

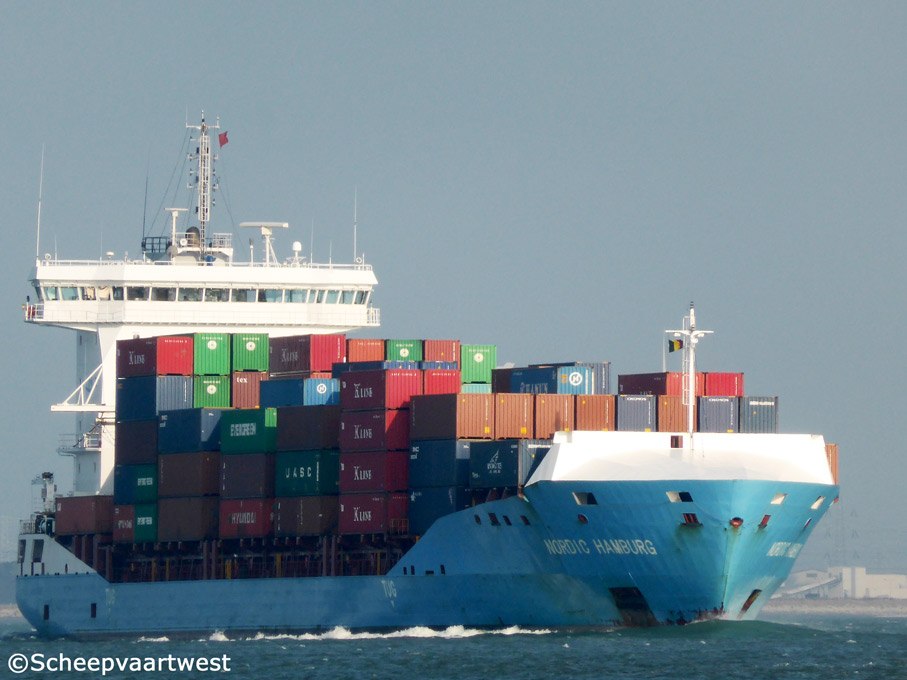

| Westerschelde 10/05/20 | Westerschelde 13/09/14 |
|
Name |
NORDIC HAMBURG |
|
Type |
Containership - Shortsea/Feeder Handysize |
|
IMO-number |
9514755 |
|
Call sign |
5BXT2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
10.585 t |
|
DWT |
Summer: 13.000 t |
|
NT |
5.372 t |
|
Number of 20ft containers |
On deck: 714 Under deck: 322 Total: 1.036 |
|
Container capacity 14t |
745 |
|
Reefer capacity |
250 |
|
Length |
151,72 m overall 142,42 m between perpendiculars |
|
Breadth |
23,43 m extreme |
|
Draught |
8,00 m |
|
Keel to mast end |
43,66 m |
|
Freeboard |
1.510 mm |
|
Depth |
11,75 m |
|
Speed |
Max: 19,3 knots Service: 18,5 knots |
|
Built |
2010 |
|
Keel laid |
21/12/2007 |
|
Launch date |
16/10/2008 |
|
Date of completion |
04/05/2010 |
|
Builder |
Jiangdong Shipyard of China Changjiang Shipping Group Anhui China |
|
Yard number |
JD1000TEU-2 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine Mcr 9.000 kW / 12.236 hp at 500 rpm Builder: Caterpillar Motoren GmbH, Rostock - Germany |
|
Propelling system |
1x Screw propeller controllable pitch - aft at 120,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite Aalborg 135,00 m² - 9,0 bar |
|
Shaft generator |
1x 2.125 kVA - 1.700 kW |
|
Generators |
3x MAN D2842 LE 301 - 4 stroke 12 cylinder 128 x 142 mm diesel engines each Mcr 600 kW connected with generators each 500 kW |
|
Emergency generator |
1x MAN D2876 LE 201 diesel generatorset 394 kVA - 315 kW - 523 hp |
|
Bow thruster |
1x Tunnel thruster 800 kW/ 1.088 bhp, forward |
|
Tank capacities |
Ballast: 5.501 m³ Fuel: 1.180 m³ Diesel oil: 117 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Crew size |
13 |
|
Cargo gear |
Gearless |
|
Commercial manager |
Nordic Hamburg Shipmanagement GmbH Cremon 32 20457 Hamburg Germany |
|
ISM manager |
Rambow Bereederungs GmbH & Co. KG Schoolpadd 17 21706 Drochtersen Germany |
|
Registered owner |
MS "NORDIC HAMBURG" 2 Schifffahrtsgesellschaft mbH & Co KG Care of Nordic Hamburg Shipmanagement GmbH & Co KG Cremon 32 20457 Hamburg Germany |
|
Latest data adjustment |
09 February 2022 |
