Westerschelde 15 April 2018 |
 |
 |
 |
 |
|||
| Westerschelde 15/04/18 | Westerschelde 03/08/17 | Westerschelde 28/07/14 | Westerschelde 06/02/16 | |||
|
Name |

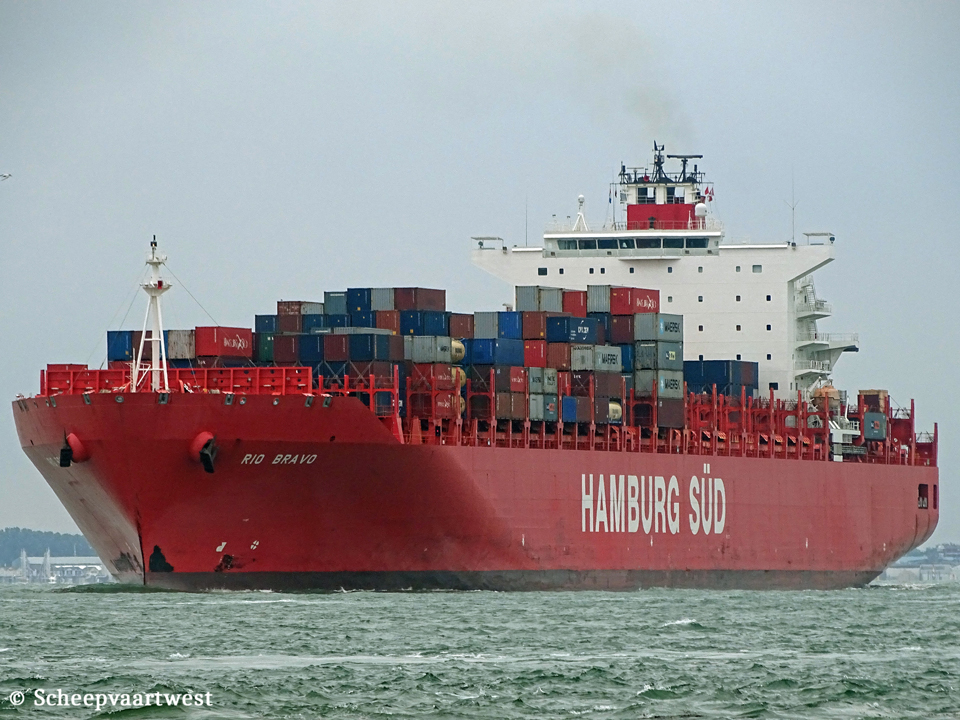

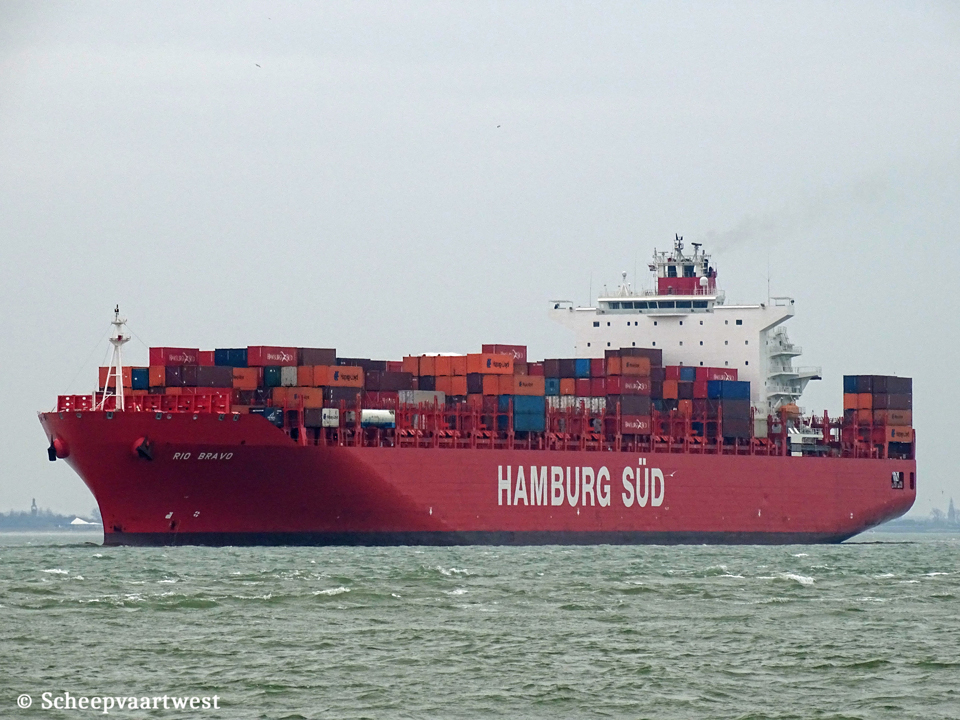

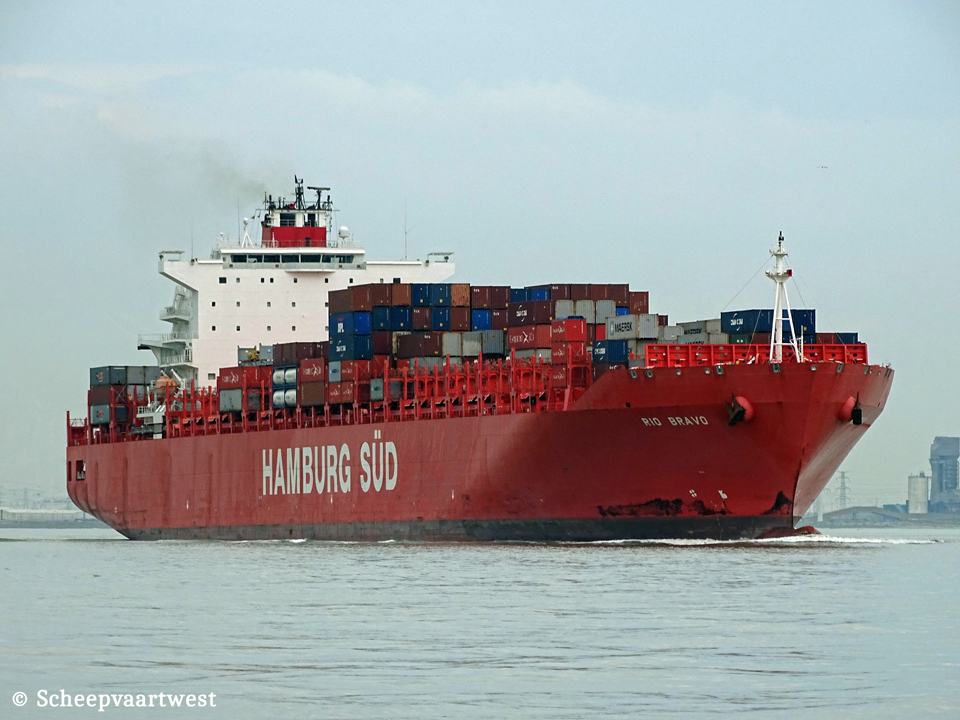

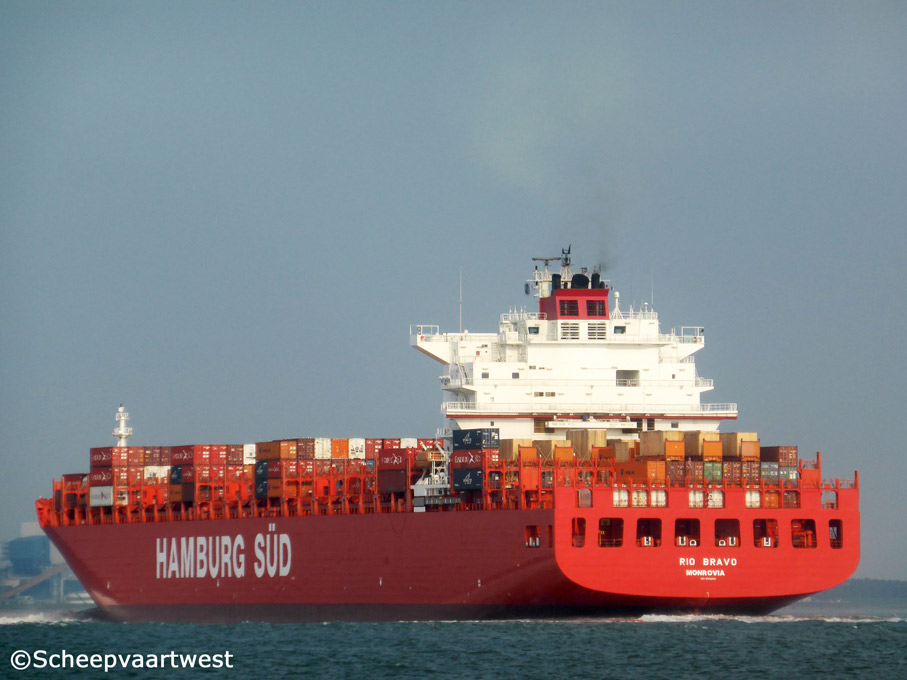

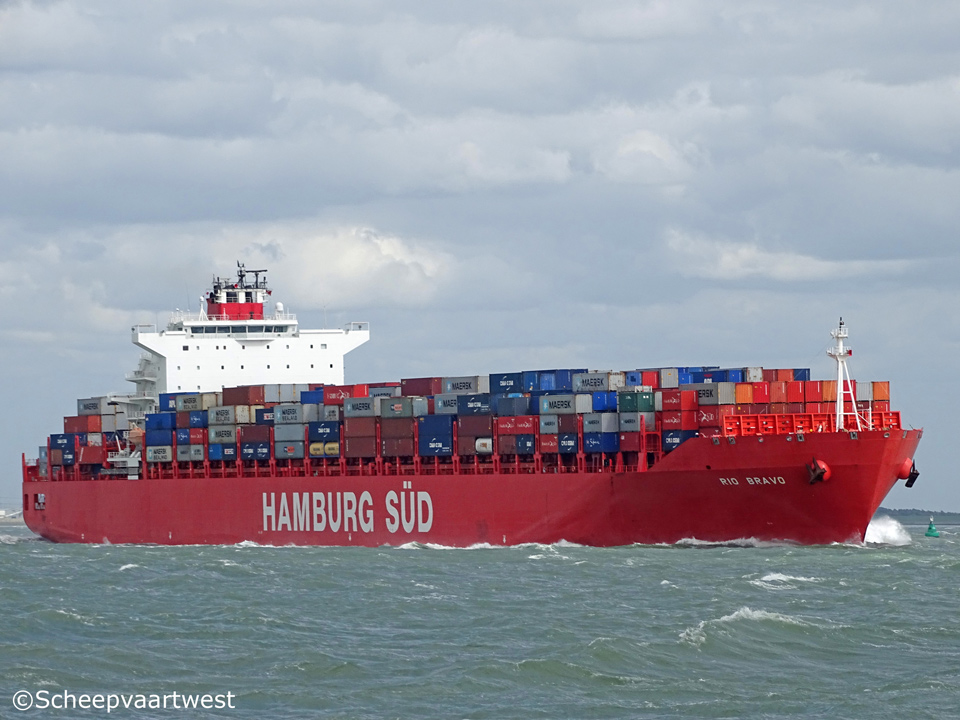

RIO BRAVO |
|
Type |
Cellular containership |
|
IMO-number |
9348091 |
|
Call sign |
9V8092 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flag |
2009 - 2009 Romania - Call sign: YQMA 2009 - 2014 Germany - Call sign: DFUX2 2014 - 2018 Liberia, Monrovia - Call sign: D5BA9 |
|
GT |
73.899 t registered |
|
DWT |
Summer: 80.225,80 t |
|
NT |
39.673 t registered |
|
Number of 20ft containers |
5.905 |
|
Container capacity 14t |
4.350 |
|
Reefer capacity |
1.365 |
|
Length |
286,46 m overall 273,45 m between perpendiculars |
|
Breadth |
40,00 m |
|
Draught |
13,50 m |
|
Forecastle |
137,64 m |
|
Bridge |
114,68 m |
|
Freeboard |
5.974 mm |
|
Depth |
24,20 m moulded |
|
Speed |
23,3 knots |
|
Built |
2009 |
|
Keel laid |
07/07/2008 |
|
Launch date |
12/03/2009 |
|
Date of completion |
18/08/2009 |
|
Builder |
Daewoo Mangalia Heavy Industries Mangalia Romania |
|
Yard number |
DMHI 4070 |
|
Hull material |
Steel - Hull structural members are partly made of higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/Wärtsilä 8RTA96C-B - 2 stroke 8 cylinder 960 x 2.500 mm combustion engine 45.765 kW / 93.311 hp at 102,0 rpm Transmission: Build: 2007 Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface 78.0 m² Build: 2007 Manufacturer :Aalborg Industries (Shanghai) Ltd. 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 393,0 m² Manufacturer: Alfa Laval Aalborg A/S |
|
Electric Installations |
1x Plant 6.600 / 440 V - 5.428,5 kVA 1x Plant 6.600 / 440 V - 5.428,5 kVA 1x Plant 6.600 / 440 V - 5.428,5 kVA 1x Plant 6.600 / 440 V - 5.428,5 kVA 1x Plant 450 V - 375 kVA 2x Plants each 24 V - 80 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
4x MAN-B&W 9L32/40 main diesel generatorsets each 5.428,5 kVA |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Battery |
1x Battery for UPS radio 200 Ah 1x Battery for automation 200 Ah 2x Batteries for start emergency engine each 80 Ah |
|
Compressed air receivers |
2x Receivers each 11.500 litres - 30,0 bar 2x Receivers each 600 litres - 30,0 bar 1x Receiver 200 litres - 8,8 bar 1x Receiver 2000 litres - 8,6 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward 1x Transverse thruster 1.500 kW, aft |
|
Hold capacity |
151.704 m³ |
|
Number of tanks |
Ballast: 16 Fuel oil: 11 Lubricating oil: 10 Waste water: 3 Diesel oil: 3 Chain: 2 Sludge: 2 Fresh water: 2 |
|
Tank capacities |
Diesel oil: 357,60 m³ Freshwater: 357,20 m³ Fuel oil: 8.178.60 m³ Lube oil: 478,70 m³ Tank Ballast: 20.767,00 m³ |
|
Anchor equipment |
3x Anchors weight each 16.100 kg Chain length: 742,50 m |
|
Lifting equipment |
1x Engine room crane - SWL 11,5 t 2x Fuel oil hose handling 1x Provisions crane - SWL 12,5 t |
|
Cargo gear |
Gearless |
|
Crew |
22 |
|
ISM & commercial manager |
Maersk A/S Esplanaden 50 1263 Copenhagen, K Denmark |
|
Previous manager |
2009 - 2018 Columbus Shipmanagement GmbH C/O Hamburg Sudamerikanisch Dampfschifffahrts-Gesellschaft KG, D-20457 Hamburg - Germany |
|
Registered owner |
Moller Singapore AP Pte Ltd. 13-01, Paya Lebar Quarter, 1, Paya Lebar Link Singapore 408533 Republic of Singapore |
|
Previous owner |
2009 - 2018 Containerschiffsreederei MS Rio Bravo GmbH & Co. KG Care of Columbus Shipmanagement GmbH, 20457 Hamburg - Germany |
|
Latest data adjustment |
20 February 2023 |
