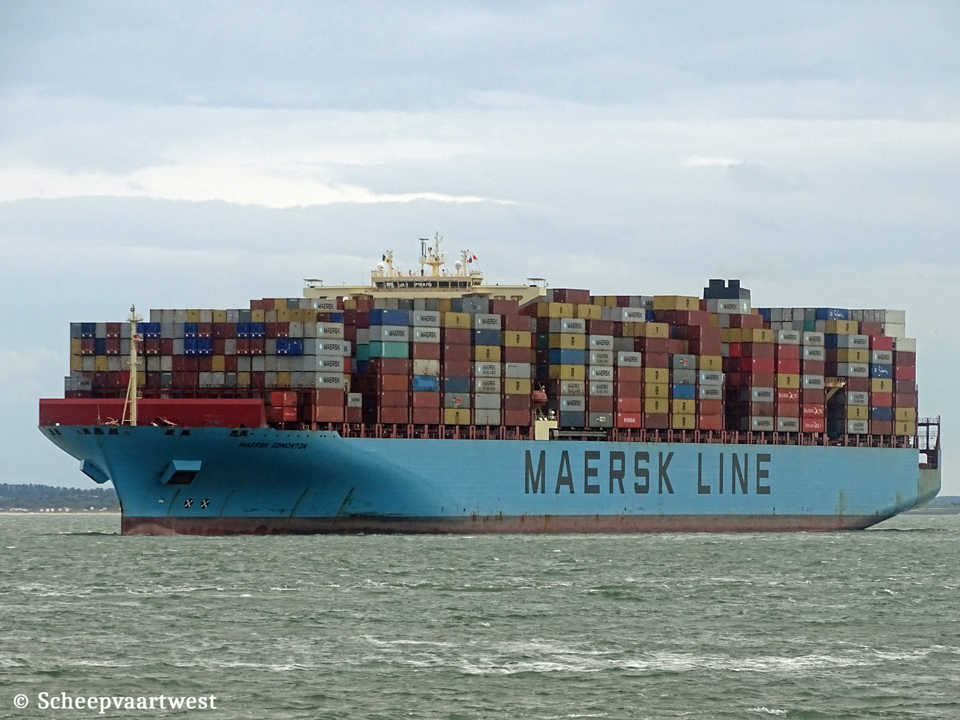

Maersk Edmonton - IMO 9458030

Malaga - Spain 12 February 2014

Name

MAERSK EDMONTON

Previous names

Launch as: 2011 Leo Rickmers

Type

Cellular containership

IMO-number

9458030

Call sign

V7VO4

Flag

Marshall Islands

Port of registry

Majuro

GT

141.716 t

DWT

Summer: 142.105 t

NT

59.810 t

Number of 20ft containers

13.092

Container capacity 14t

9.082

Reefer capacity

800

Length

366,47 m overall

253,64 m registered

Breadth

48,20 m registered

Draught

15,50 m

Depth

29,85 m moulded

Speed

24,7 knots

Built

2011

Keel laid

31.08.2010

Launch date

12.11.2010

Date of completion

18.02.2011

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, Kyongsang-namdo
Republic of Korea

Yard number

2170

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom

Watertight bulkheads

12

Continuous decks

2

Main engine

1x Wärtsilä-Sulzer 12RT-flex96C-B - 2 stroke 12 cylinder 960 x 2.500 mm combustion engine - 68.640 kW at 102,0 rpm

Year of manufacture: 2010

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

Steam boiler, oil fired - 8,83 bar

Heating surface: 73,4 m²

Steam boiler, exhaust gas heated - 11,77 bar

Heating surface: 484,0 m²

Year of manufacture: 2010

Manufacturer: KangRim Heavy Industries Co., Ltd.
40, Wongnam-dong
Changwon, Kyongsang-namdo
Republic of Korea

Electric installations

5x Plants each 6.600 V - 3.600 kVA

1x Plant 450 V - 370 kVA

2x Plants each 24 V - 7 Ah

1x Plant 24 V - 12 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V -300 Ah

Generators

5x Main diesel generatorsets each 3.600 kVA / 2.880 kW

Emergency generator

1x Diesel generatorset 370 kVA

Batteries

12x Batteries for UPS navigation each 300 Ah

12x Batteries for UPS radio each 200 Ah

1x Battery for automation 12 Ah

2x Batteries for Start emergency engine each 7 Ah

Compressed air receivers

2x Receivers each16.800 litres - 29,4 bar

1x Receiver 480 litres - 29,4 bar

1x Receiver 300 litres - 8,8 bar

1x Receiver 2.000 litres - 8,6 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg
Chain length: 770,00 m

Cargo gear

None

Crew size

36

Manager

Rickmers Shipmanagement (Singapore) Pte., Ltd.
8 Shenton Way 42-01 Axa Tower
Singapore
Republic of Singapore

Operator

Maerks Line

Registered owner

Malew Navigation Ltd.
2nd Floor, Railway Chamber Bank Circus
Douglas, IM1 5AB
United Kingdom

Latest data adjustment

25 March 2014
