| Zeebrugge 21 August 2013 |
 |
| Zeebrugge 18/08/15 |
|
Name |

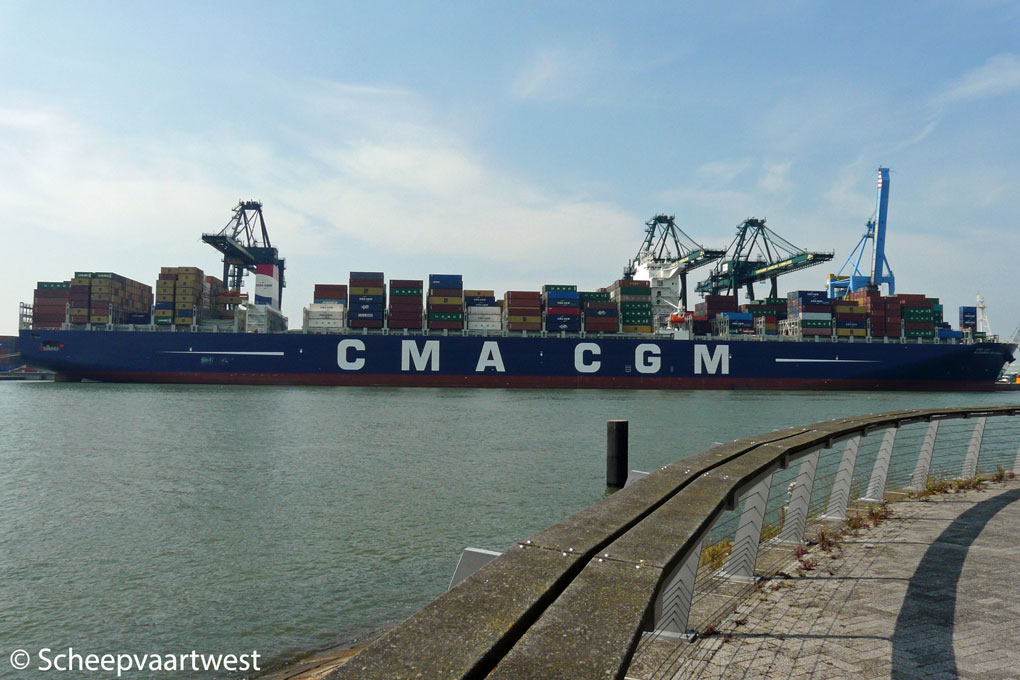

CMA CGM ALEXANDER VON HUMBOLDT |
|
Previous names |
Launch as: CMA CGM Vasco De Gama |
|
Type |
Cellular containership |
|
IMO-number |
9454448 |
|
Call sign |
2GEH4 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
175.343 t |
|
DWT |
186.470 t |
|
NT |
101.053 t |
|
Number of 20ft containers |
16.020 |
|
Container capacity 14t |
10.000 |
|
Reefer capacity |
1.100 |
|
Length |
396,00 m overall 378,40 m between perpendiculars |
|
Breadth |
53,60 m |
|
Draught |
16,00 m |
|
Freeboard |
6.953 mm |
|
Depth |
29,90 m |
|
Speed |
25,1 knots |
|
Built |
2013 |
|
Date of completion |
16.04.2013 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. |
|
Yard number |
4162 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä-Doosan 14RT-flex96C - 2 stroke 14 cylinder 960 x 2.500 mm combustion engine - 80.080 kW / 108.804 kW at 102,0 rpm Built: 07.05.2012 Builder: Doosan Heavy Industries & Construction Co., Ltd., Cahangwon - South Korea |
|
Propellers |
1x Screw pitch propeller solid - at 102 rpm |
|
Boilers |
1x CHR Aalborg 480,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 4.800 kVA - 3.840 kW - 5.435 hp |
|
Emergency generator |
1x Diesel generatorset 688 kVA - 550 kW - 826 hp |
|
Bow thruster |
2x 3.600 kW |
|
Number of holds |
8 |
|
Total capacity of holds |
363.563,40 m³ |
|
Fuel capacity |
15.907,7 m³ |
|
Cargo gear |
Gearless |
|
Crew |
27 |
|
Manager |
CMA CGM |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime 4 Quai d'Arenc |
|
Owner |
CMA CGM |
|
Registered owner |
Caroline 31 |
|
Last update |
02 December 2013 |
