Westerschelde 04 April 2018 |
 |
 |
 |
 |
|||
| Westerschelde 04/04/18 | Westerschelde 01/07/18 | Westerschelde 30/07/18 | Westerschelde 17/03/19 |
|
Name |

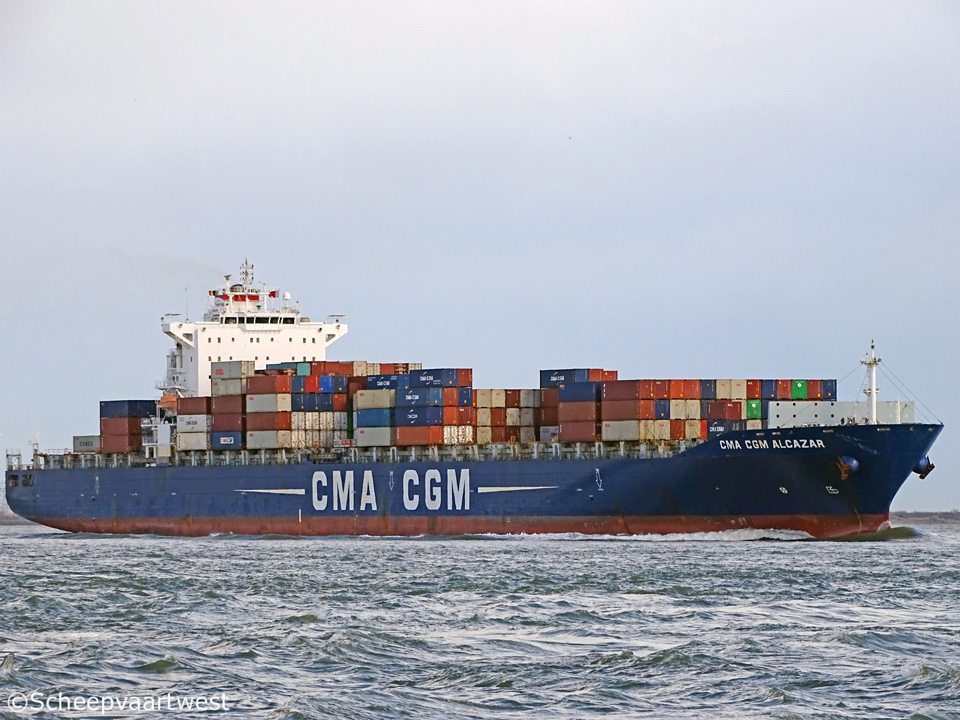

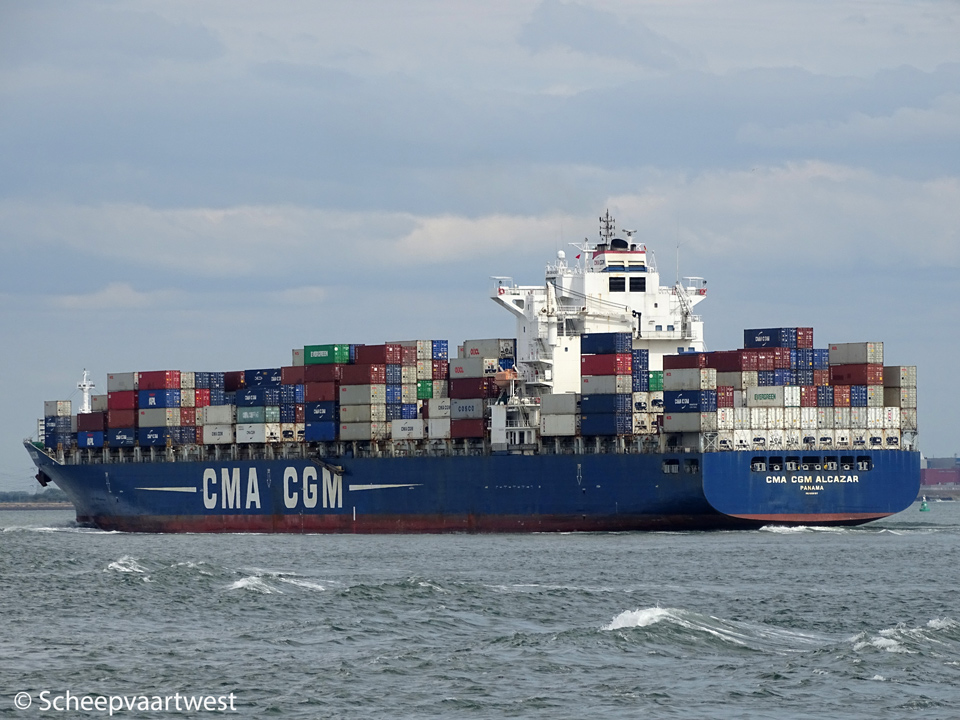

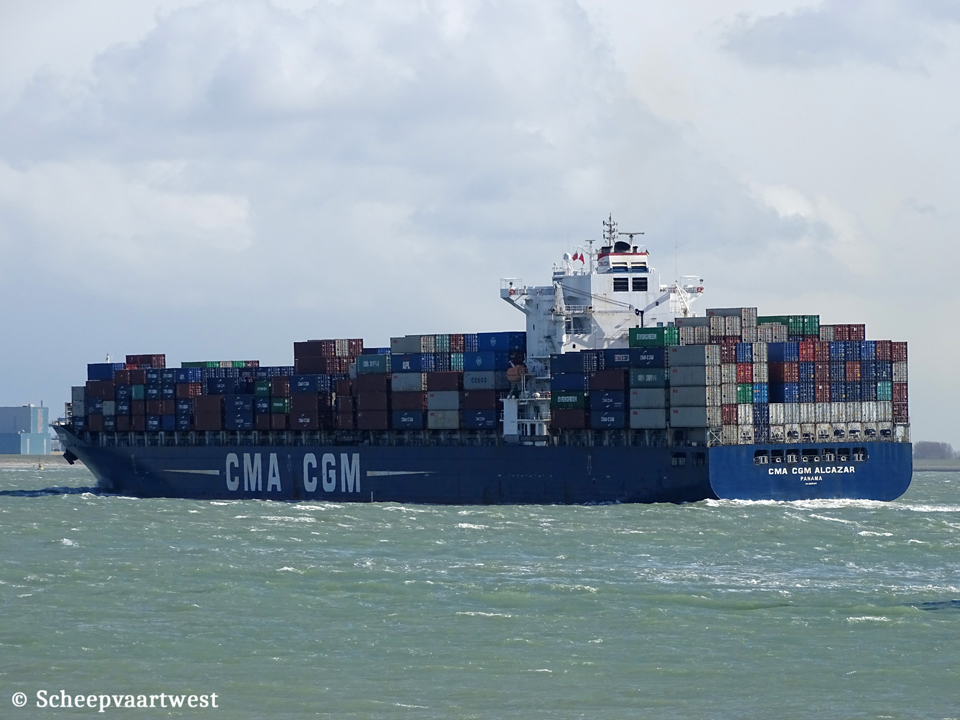

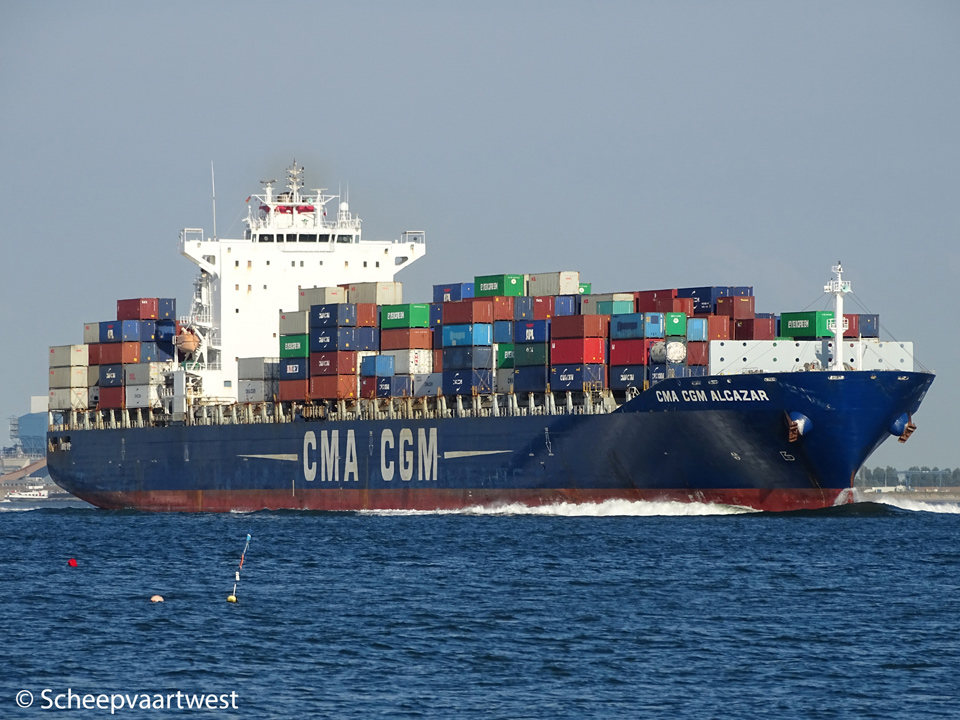

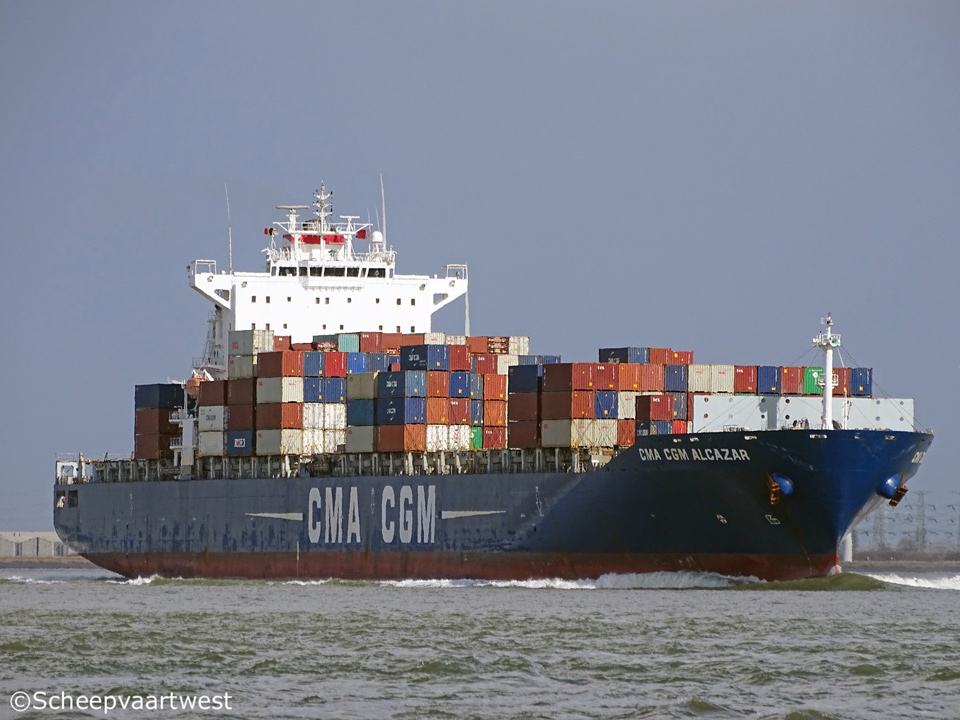

CMA CGM ALCAZAR |
|
Previous names |
2007 - 11/2007 COSCO Charleston |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9335197 |
|
Call sign |
3ENL3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
54.778 t Suez: 55.954 t |
|
DWT |
Summer: 68.282 t |
|
NT |
31.736 t Suez: 47.945 t |
|
Number of 20ft containers |
5.089 |
|
Container capacity 14t |
3.370 |
|
Reefer points |
386 |
|
Length |
294,10 m overall 283,12 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
13,52 m |
|
Freeboard |
3.939 mm |
|
Depth |
21,60 m |
|
Speed |
24,3 knots |
|
Built |
2007 |
|
Date of completion |
05/11/2007 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Pusan South Korea |
|
Yard number |
170 |
|
Hull material |
Steel |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9K90MC-C6-TI - 2 stroke single acting 9 cylinder 900 x 2.300 mm combustion engine 41.130 kW / 55.920 hp at 104,0 rpm Built: 2007 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104 rpm |
|
Boilers |
1x CHM Kangrim 741,00 m² - 10,0 bar |
|
Generators |
4x MAN-B&W main diesel generatorsets each 1.987 kVA - 1.590 kW - 2.283 hp / 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 313 kVA - 250 kW - 340 hp |
|
Bow thruster |
1x 1.900 kW / 2.583 bhp |
|
Tank capacities |
Fuel: 6.500 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
CMA CGM SA The French Line 4, quai d Arenc 13002 Marseille France |
|
Operator |
CMA CGM |
|
Registered owner |
GSL Alcazar Inc. |
|
Latest data adjustment |
02 June 2022 |
