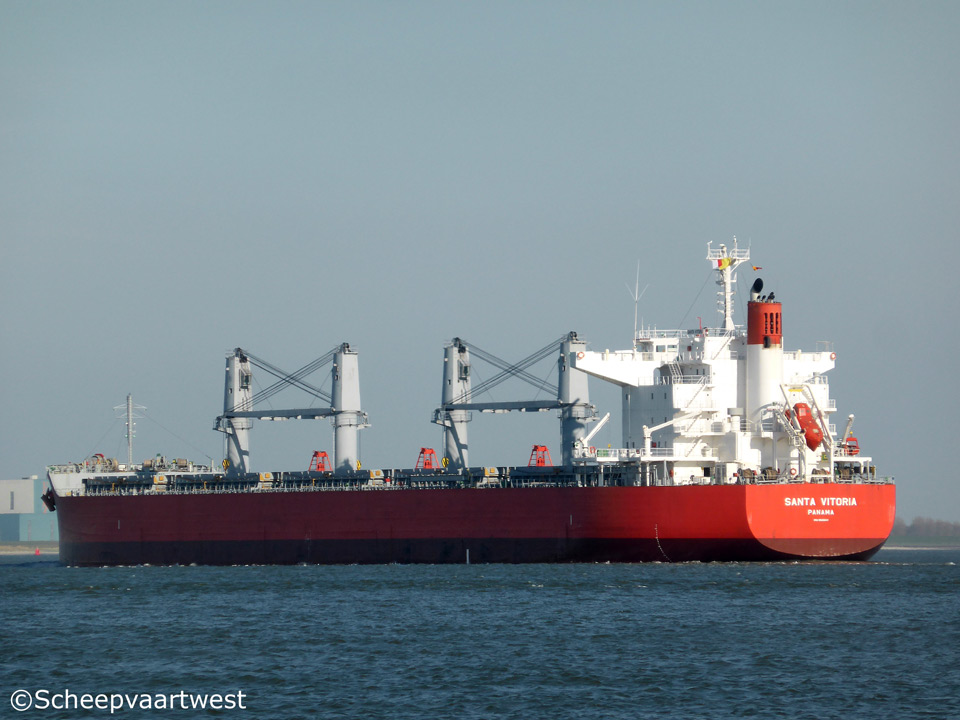

Westerschelde 20 April 2015 |
|
Name |
SANTA VITORIA |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9605011 |
|
Call sign |
3FDV3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
34.795 t registered |
|
DWT |
Summer: 61.438 t |
|
NT |
20.209 t registered |
|
Light ship |
10.884 t |
|
Length |
199,98 m overall |
|
Breadth |
32,24 m moulded |
|
Draught |
Summer: 13,01 m |
|
Moulded L x B x D |
195,00 x 32,24 x 18,60 m |
|
Registered L x B x D |
195,39 x 32,24 x 18,60 m |
|
Freeboard |
5.640 mm |
|
Depth |
18,60 m moulded |
|
Speed |
16,0 knots |
|
Built |
2012 |
|
Keel laid |
10.08.2010 |
|
Launch date |
11.01.2012 |
|
Date of completion |
28.02.2012 |
|
Builder |
Iwagi Zosen Co., Ltd. |
|
Yard number |
311 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single action 6 cylinder 500 x 2.000 mm diesel engine 8.450 kW at 113 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propellers shaft |
1x Oil lubrication shaft with monitoring device Diameter: 500 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 1.965 kVA |
|
Number of holds |
5 |
|
Hold capacity |
Grain: 77.674 m³ |
|
Tank capacities |
Fuel oil: 2.565 m³ Fresh water: 669 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
Eiko Kisen Co., Ltd. |
|
Registered owner |
Grace Hawk Shipping S.A. & Eiko Kisen Co., Ltd. |
|
Latest data adjustment |
17 December 2016 |
