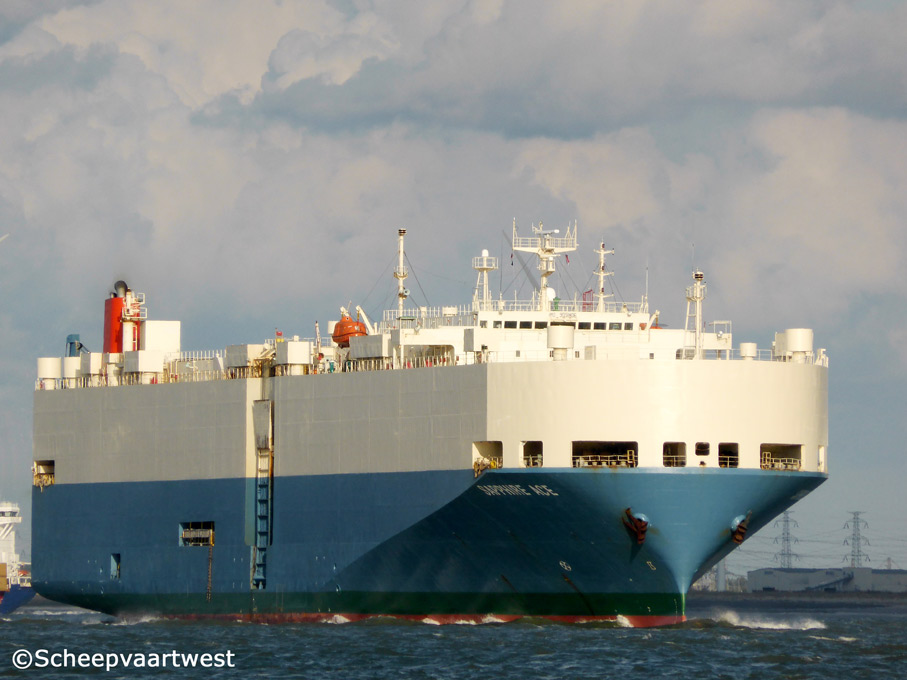

Westerschelde 23 August 2014 |
 |
 |
|

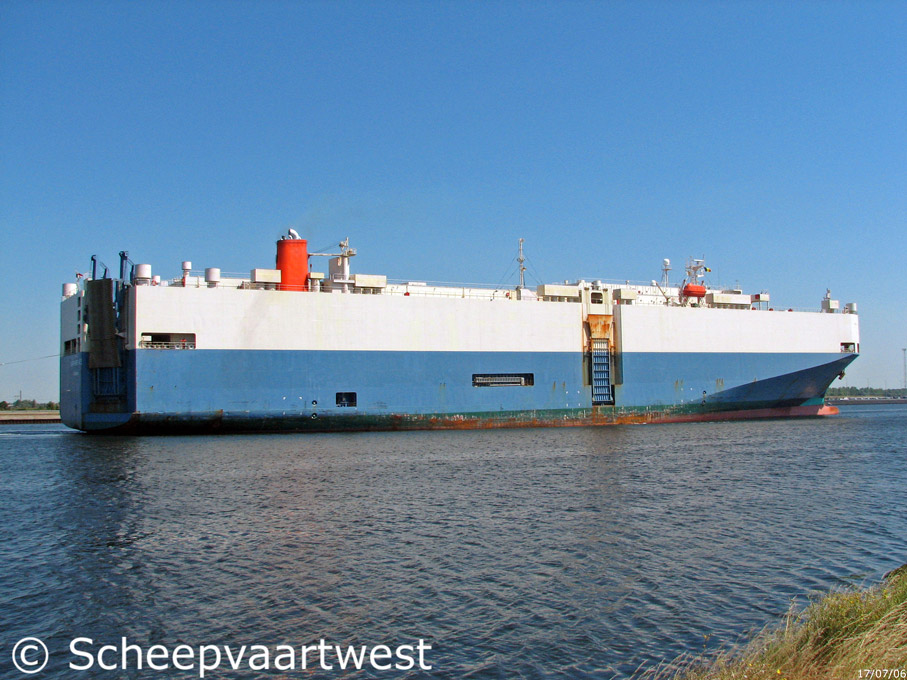

| Zeebrugge 17/07/06 | Zeebrugge 17/07/06 |
|
Name |
SAPPHIRE ACE |
|
Type |
Roll-On/Roll-Off vehicles Carrier |
|
IMO-number |
9051806 |
|
Call sign |
3FUX3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
45.796 t |
|
DWT |
15.204 t |
|
NT |
13.739 t |
|
Length |
188,00 m overall 170,00 m between perpendiculars 181,86 m registered |
|
Breadth |
31,20 m overall |
|
Moulded L x B x D |
178,00 x 31,20 x 11,80 m |
|
Registered L x B x D |
181,86 x 31,20 x 21,25 m |
|
Draught |
Summer: 9,02 m |
|
Freeboard |
Summer: 2.807 mm |
|
Depth |
11,80 m moulded |
|
Speed |
Service: 18,5 knots Trial: 21,1 knots |
|
Built |
1993 |
|
Keel laid |
14.03.1993 |
|
Launch date |
22.07.1993 |
|
Date of build |
17.12.1993 |
|
Builder |
Minami Nippon Shipbuilding Co., Ltd. |
|
Yard number |
M626 |
|
Hull type |
Single hull |
|
Main engine |
1x Burmeister & Wain - 2 stroke single acting 6 cylinder 600 x 1.944 mm diesel engine - 11.473 at 123,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co. Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 534 mm |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,80 t/h Manufacturer: Tortoise Engineering Co. Ltd. |
|
Generators |
4x Generators 3.210 kVA |
|
Capacity |
4.055 cars |
|
Tank capacities |
Fuel oil: 3.978 m³ Fresh water: 386 m³ Water ballast: 7.726 m³ |
|
Lifting equipment |
1x Crane - SWL 0,9 t 2x Cranes - SWL 4,0 t each |
|
Manager |
Seiwa Navigation Corporation Ltd. |
|
Shipping company |
Mitsui O. S. K. Lines (MOL) |
|
Registered owner |
Polar Express S.A. |
|
Scrapped |
08.2016 at Alang, India |
|
Latest data adjustment |
05 October 2014 |
