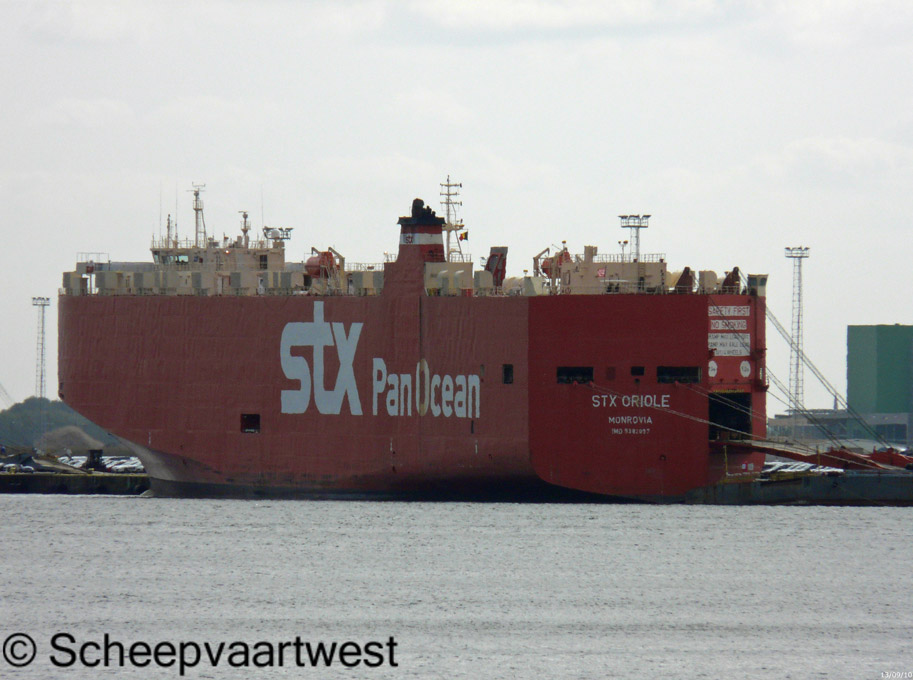

| Zeebrugge 13 September 2010 |
|
Name |
STX ORIOLE |
|
Christian name |
Montreal |
|
Type |
Vehicles carrier |
|
IMO-number |
9382097 |
|
Call sign |
A8QU3 |
|
Flag |
Republic of Liberia |
|
Port of registry |
Monrovia |
|
GT |
40.619 t |
|
DWT |
Scantling: 12.245 t Design: 8.400 t |
|
NT |
14.163 t |
|
Length |
175,91 m overall 164,94 m between perpendiculars 169,16 m registered |
|
Breadth |
31,07 m registered |
|
Draught |
Summer: 8,75 m |
|
Freeboard |
5.766 mm |
|
Depth |
30,00 m moulded |
|
Speed |
20,4 knots |
|
Built |
2009 |
|
Keel laid |
11.03.2008 |
|
Launch date |
25.11.2008 |
|
Date of completion |
04.02.2009 |
|
Builder |
3. Maj Brodogradiliste d.d. |
|
Yard number |
706 |
|
Hull material |
Shipbuilding steel (standard) Hull structural members are partly made of higher tensile steel according to the drawings to be kept on board |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
9 |
|
Main engine |
1x Sulzer 7RT-flex 50 - 2 stroke single acting 7 cylinder500 x 2.050 mm diesel engine - 11.060 kW MCR at 124 rpm Year of manufacture: 2008 Manufacturer: 3. Maj MID d.d. |
|
Propeller |
1x Solid propeller (keyless) diameter 5.650 mm, 4 blades - aft at 124 rpm |
|
Boilers |
1x Steam boiler, oil fired Working pressure: 11,0 bar Heating surface: 40,0 m² 1x Steam boiler, exhaust gas heated Working pressure: 12,0 bar Heating surface: 118,0 m² Year of manufacture: 2008 Manufacturer: TPK Nova d.o.o. |
|
Electric Installations |
1x Plant 450 V - 1.490 kVA 1x Plant 450 V - 1.490 kVA 1x Plant 450 V - 1.490 kVA 1x Plant 450 V - 240 kVA 1x Plant 24 V - 180 Ah |
|
Generators |
3x Main diesel generatorsets each 1.490 kVA / 1.280 kW at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 240 kVA / 234 kW at 1.800 rpm |
|
Batteries |
2x Batteries for diesel control each 180 Ah |
|
Compressed air receivers |
2x Receivers each 2.200 litres - 30,0 bar 1x Receiver 2.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 1.000 kW - forward Diameter: 1.850 mm - 4 blades |
|
Car capacity |
4.870 |
|
Ramp dimension |
Max. load: 120 t Max. axle load: 50 t Height: 7,50 m Width: 5,20 m |
|
Tank capacities |
Heavy fuel Oil: 3.032 m³ Marine diesel Oil: 160 m³ Lub oil: 108 m³ Ballast water 3.880 m³ |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length: 632,50 m |
|
Accommodation |
For a crew of 25 persons with heating, ventilation and air-conditioning |
|
Crew |
21 |
|
Manager |
NSC Schifffahrts GmbH & Cie. KG |
|
Operator |
STX PanOcean |
|
Owner |
FHH Fonds Nr. 38 MS "MONTREAL" GmbH & Co. KG |
