| Zeebrugge 16 June 2004 |
|
Name |

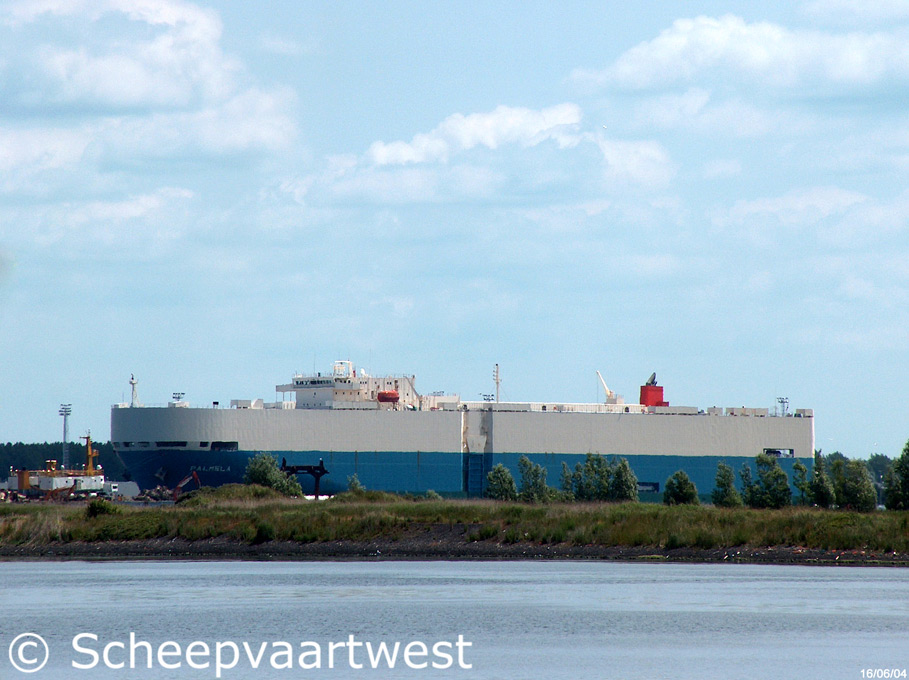

PALMELA |
|
Type |
Vehicles Carrier |
|
IMO-number |
9207388 |
|
Call sign |
H3AP |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama |
|
GT |
55.926 t |
|
DWT |
20.581 t |
|
NT |
16.778 t |
|
Length |
199,54 m overall 192,83 m registered |
|
Breadth |
32,26 m overall |
|
Moulded L x B x D |
190,00 x 32,26 x 33,96 m |
|
Registered L x B x D |
192,83 x 32,26 x 23,92 m |
|
Draught |
Summer: 9,63 m |
|
Freeboard |
Summer: 5.014 mm |
|
Depth |
33,96 m moulded |
|
Speed |
Service: 20,6 knots Trial: 21,2 knots |
|
Built |
2000 |
|
Keel laid |
02.07.1999 |
|
Launch date |
04.11.1999 |
|
Date of completion |
21.02.2000 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. |
|
Yard number |
5.020 |
|
Hull type |
Double hull |
|
Main engine |
1x Kobe diesel - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.121 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3, 34 t/h Manufacturer: Tortoise Engineering Co. Ltd. |
|
Generators |
4x Main diesel generatorsets each 3.525 kVA |
|
Car capacity |
5.020 |
|
Tank capacities |
Fuel oil: 3.170 m³ Fresh water: 396 m³ Water ballast: 8.216 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t each |
|
Manager |
Kansai Steamship Co. Ltd. |
|
Shipping company |
Misui O.S.K. Lines (MOL) |
|
Registered owner |
New Auto Carrier SA |
