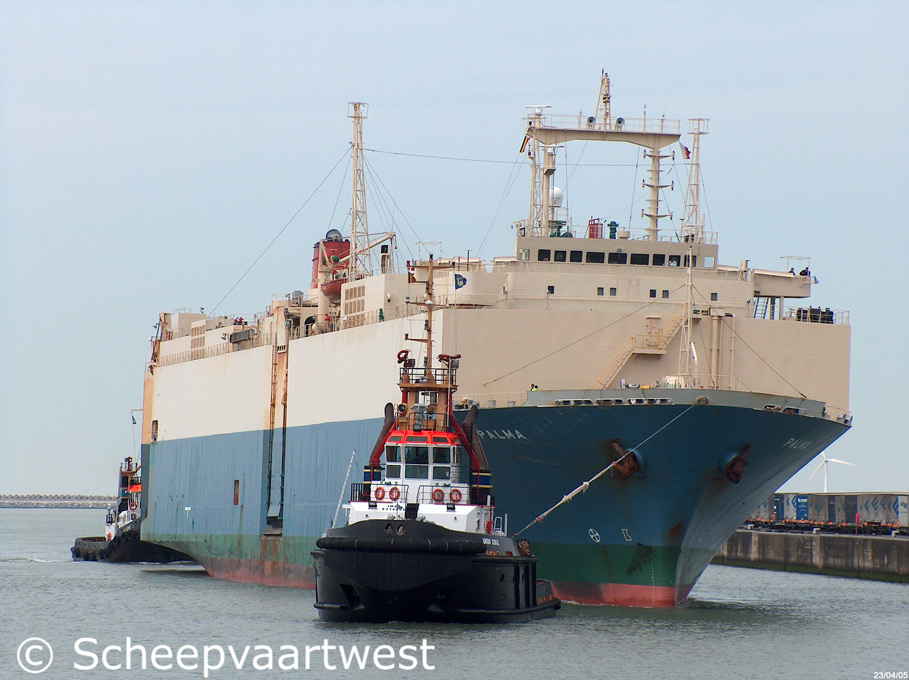

| Zeebrugge 23 April 2005 |
 |
 |
 |
||

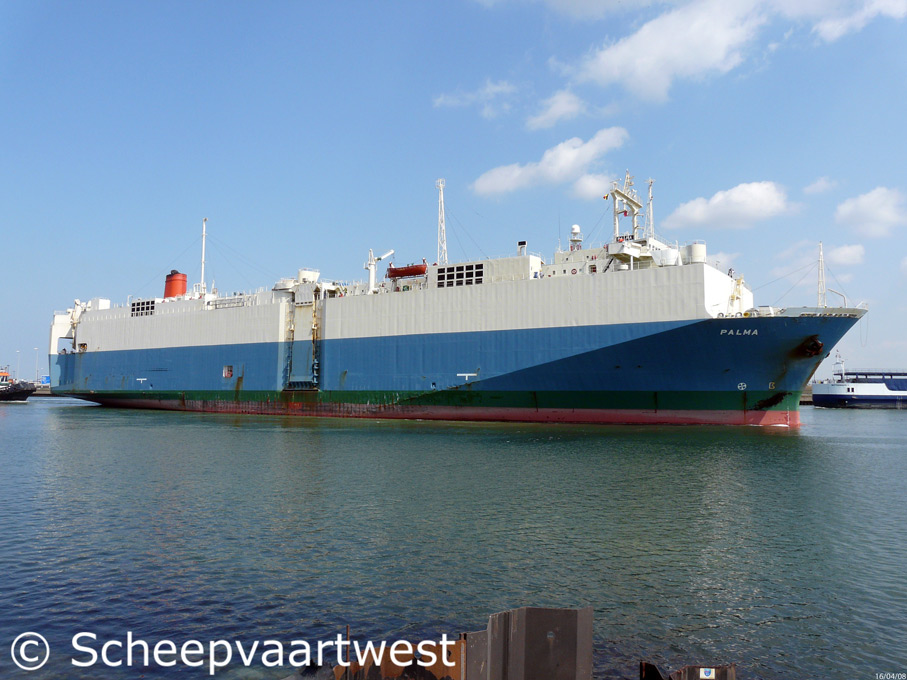

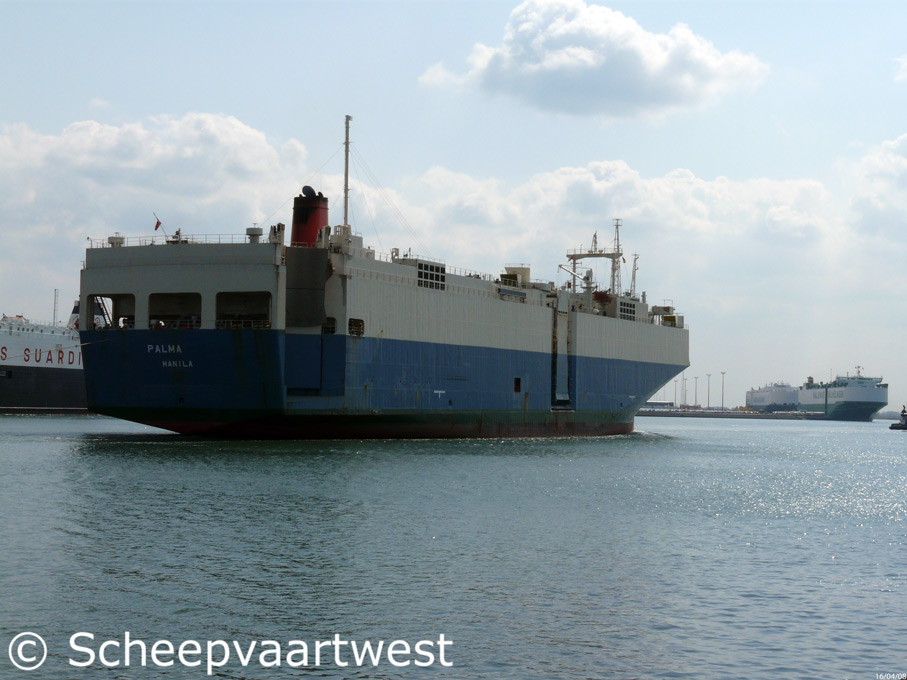

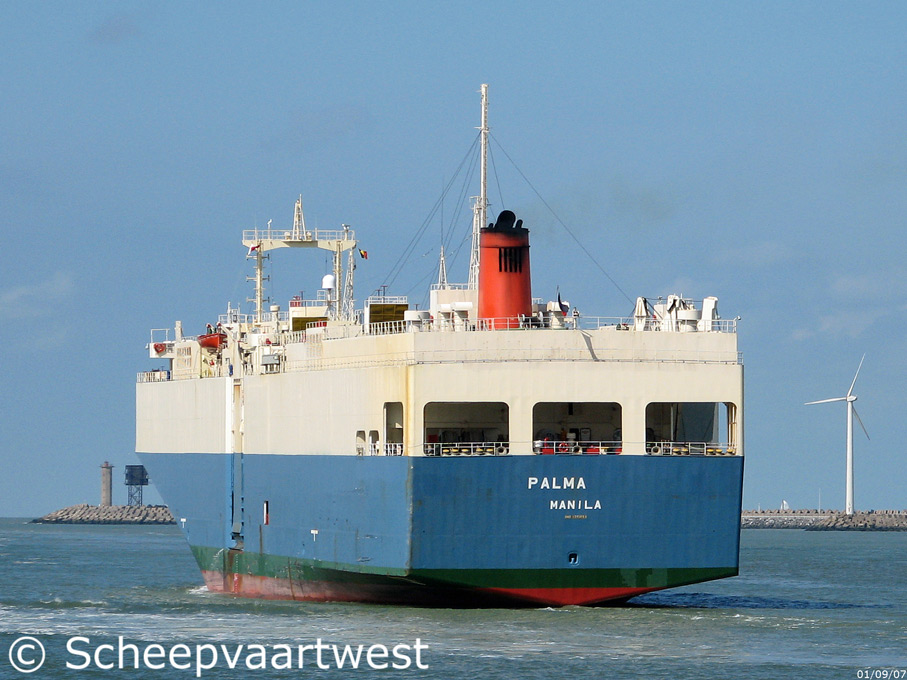

| Zeebrugge 16/04/08 | Zeebrugge 16/04/08 | Zeebrugge 01/09/07 |
|
Name |
PALMA |
|
Previous name |
1983 - 1989 Palm Ace |
|
Type |
Vehicles Carrier |
|
IMO-number |
8213859 |
|
Call sign |
DUGD |
|
Flag |
Philippines |
|
Previous flag |
1989 Republic of Panama |
|
Port of registry |
Manila |
|
GT |
27.589 t |
|
DWT |
10.546 t |
|
NT |
8.277 t |
|
Length |
161,36 m overall 150,98 m registered |
|
Breadth |
26,80 m over all |
|
Moulded L x B x D |
147,00 x 26,80 x 10,55 m |
|
Registered L x B x D |
150,98 x 26,80 x 19,00 m |
|
Draught |
Summer: 8,62 m |
|
Freeboard |
Summer: 1.956 mm |
|
Depth |
19,00 m |
|
Speed |
Service: 16,5 knots Trial: 19,4 knots |
|
Built |
1983 |
|
Keel laid |
17.07.1982 |
|
Launch date |
14.03.1983 |
|
Date of completion |
19.05.1983 |
|
Builder |
Watanabe Shipbuilding Co. Ltd. |
|
Yard number |
220 |
|
Hull type |
Single hull |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 1.500 mm diesel engine - 9.267 kW at 128,0 rpm Manufacturer: Ube Industries, Ltd. Ube Machinery Works |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,9 bar Evaporation: 2,98 t/h Manufacturer: Miura Co. Ltd. |
|
Generators |
3x Main diesel generatorsets each 2.850 kVA |
|
Cargo capacity |
Cars: 2.865 Trucks: 788 |
|
Tank capacities |
Fuel oil: 1.951 m³ Fresh water: 530 m³ Ballast water: 4.702 m³ |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Manager |
Meikai Marine Services (MMS) Co. Ltd. |
|
Operator |
Mitsui O.S.K. Lines |
|
Registered owner |
Kapalaran Shipping |
|
Remarks |
Demolished 07/2010 at India |
