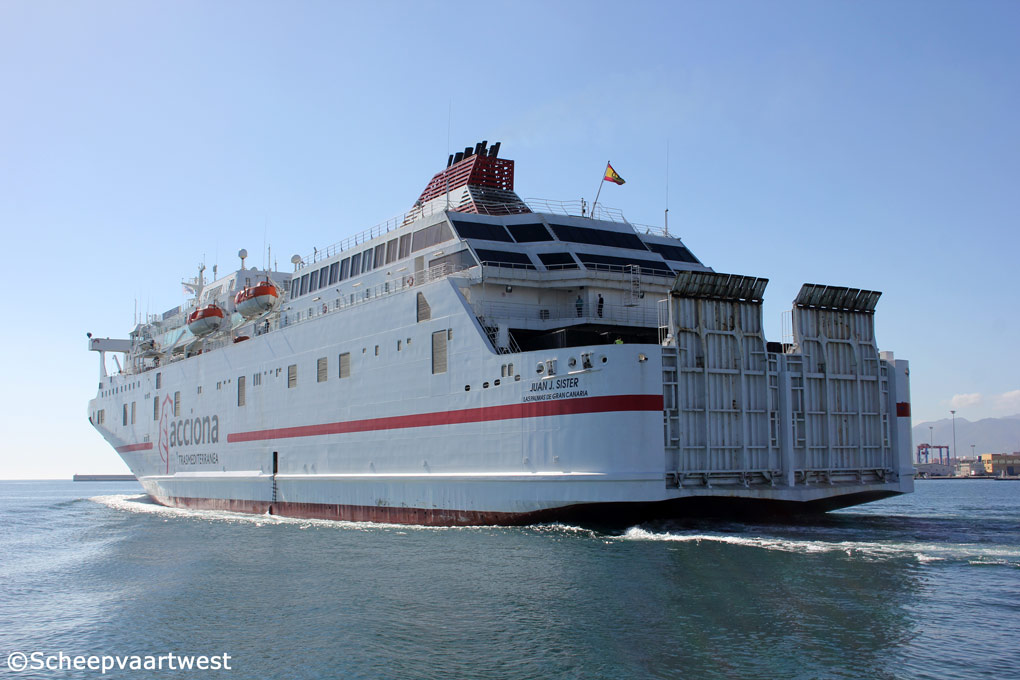

| Malaga, Spain 10 February 2013 |
 |
 |
 |
 |
 |
 |
|||||

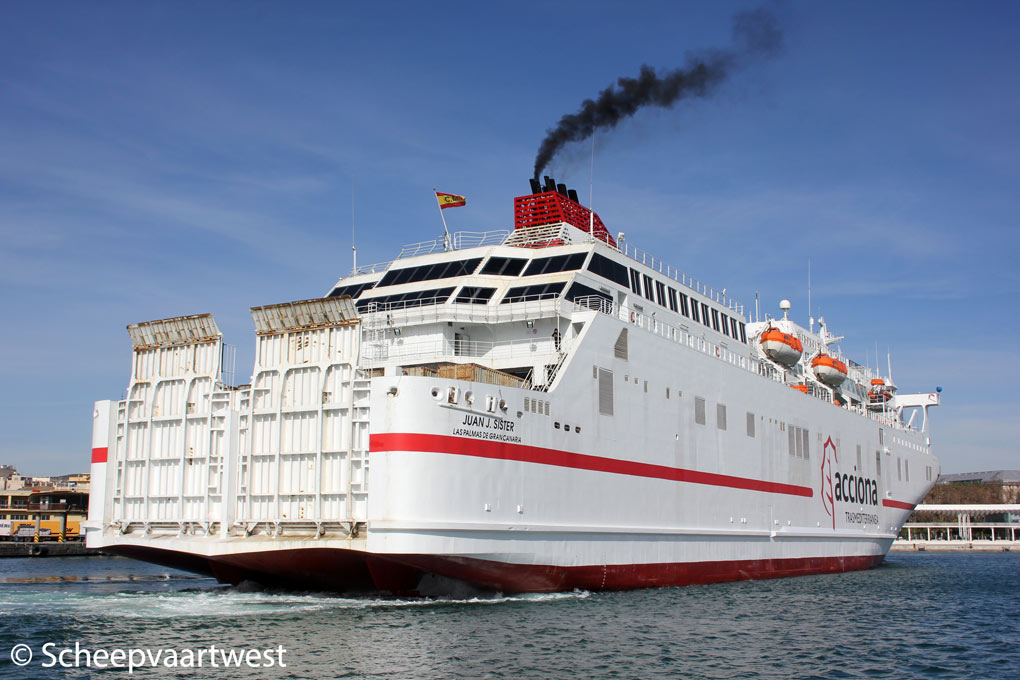

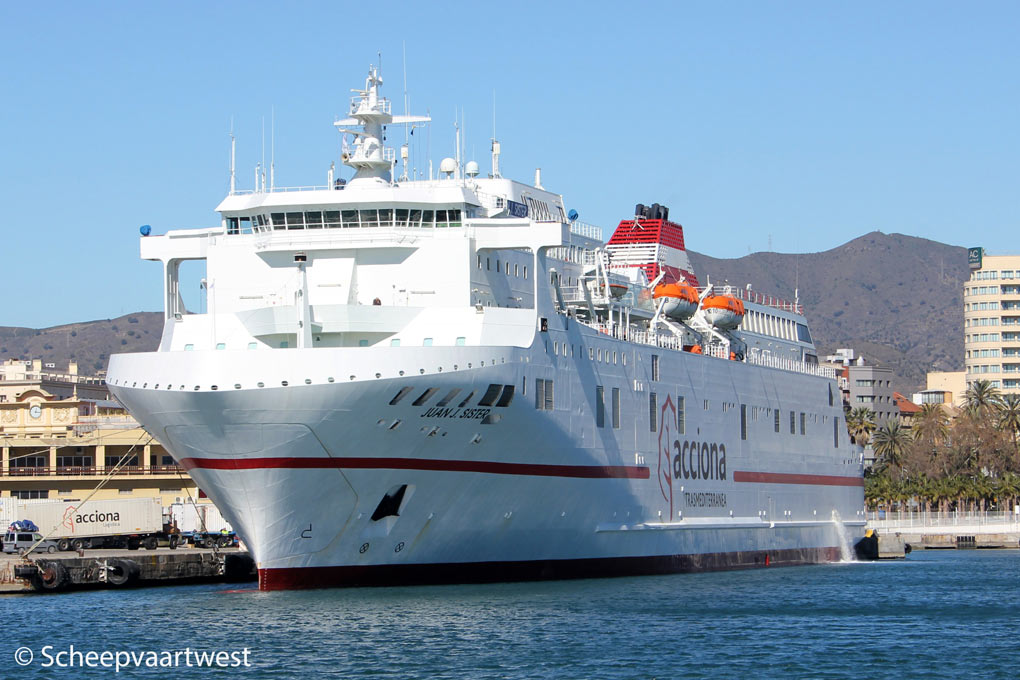

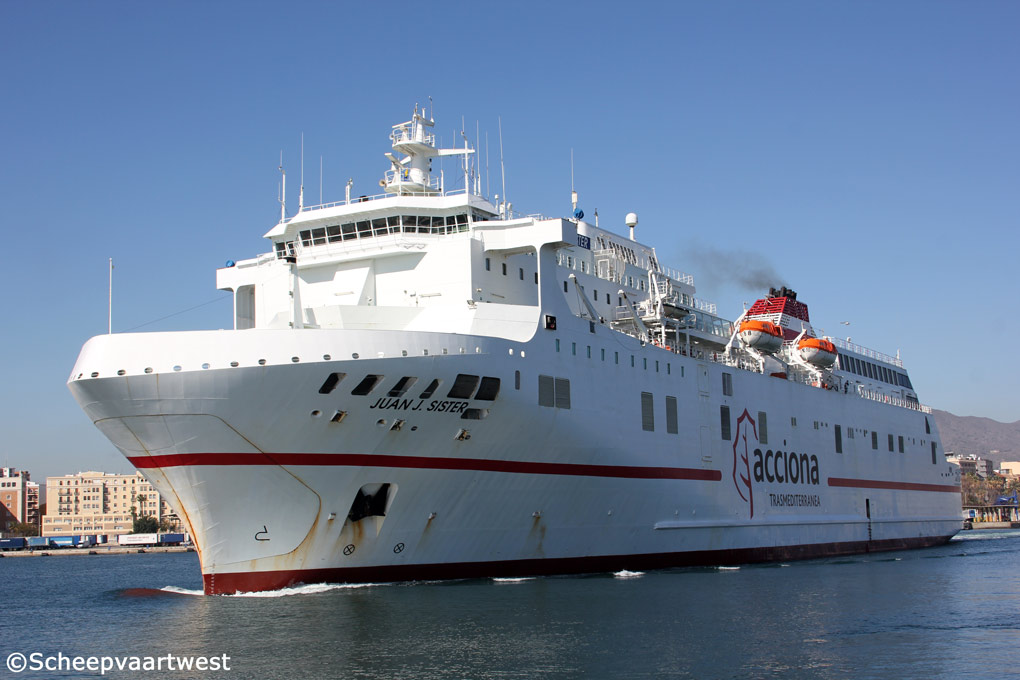

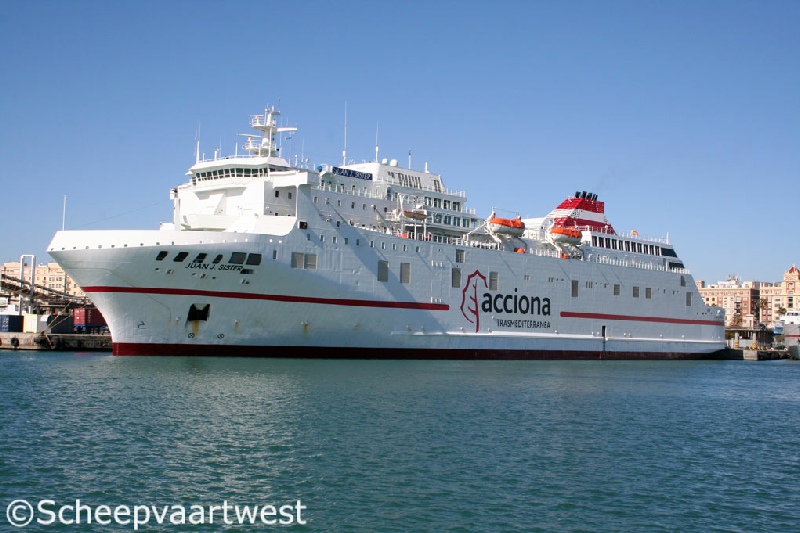

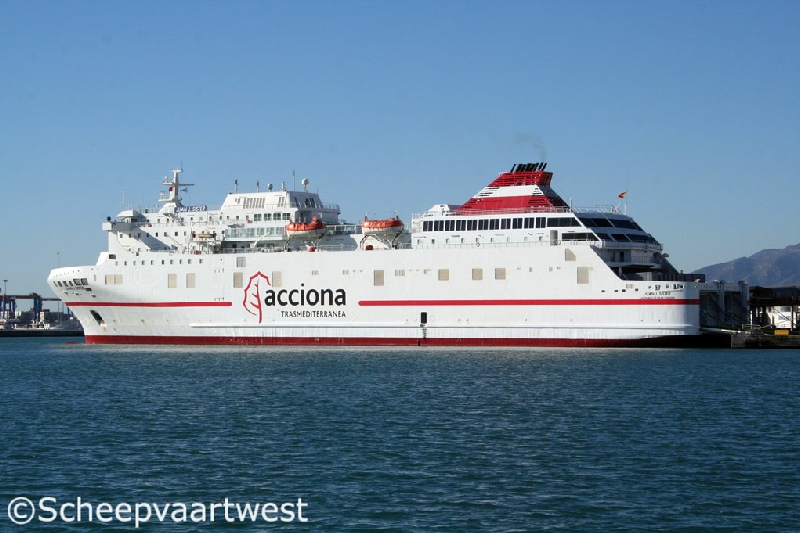

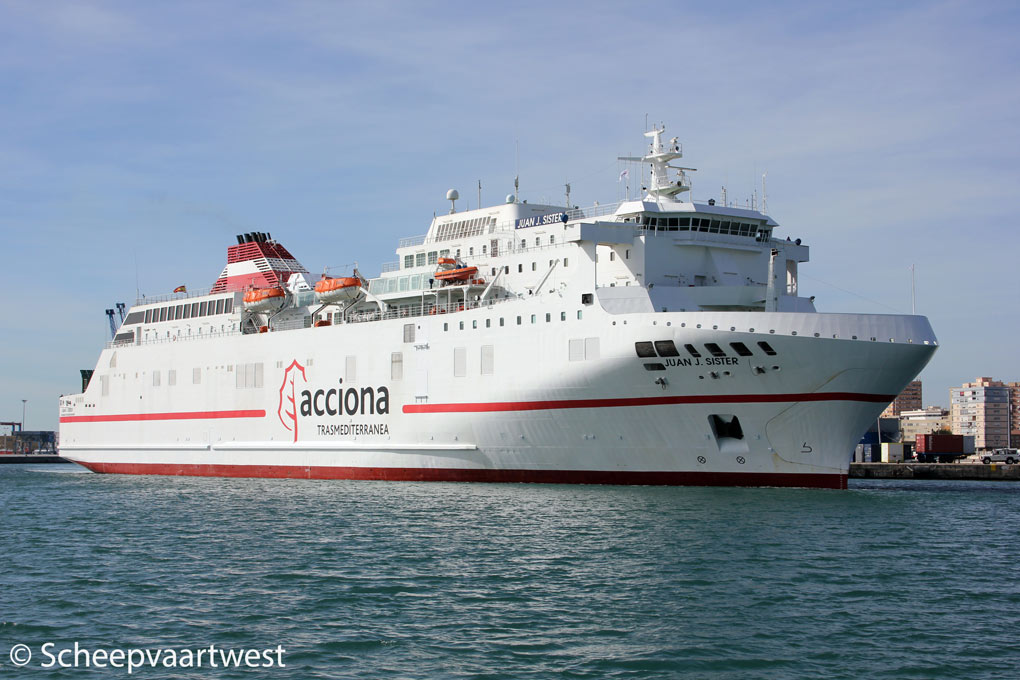

| Malaga, Spain 10/02/13 | Malaga, Spain 13/02/13 | Malaga, Spain 12/02/13 | Malaga, Spain 12/02/13 | Malaga, Spain 06/02/14 | Malaga, Spain 06/02/14 |
 |

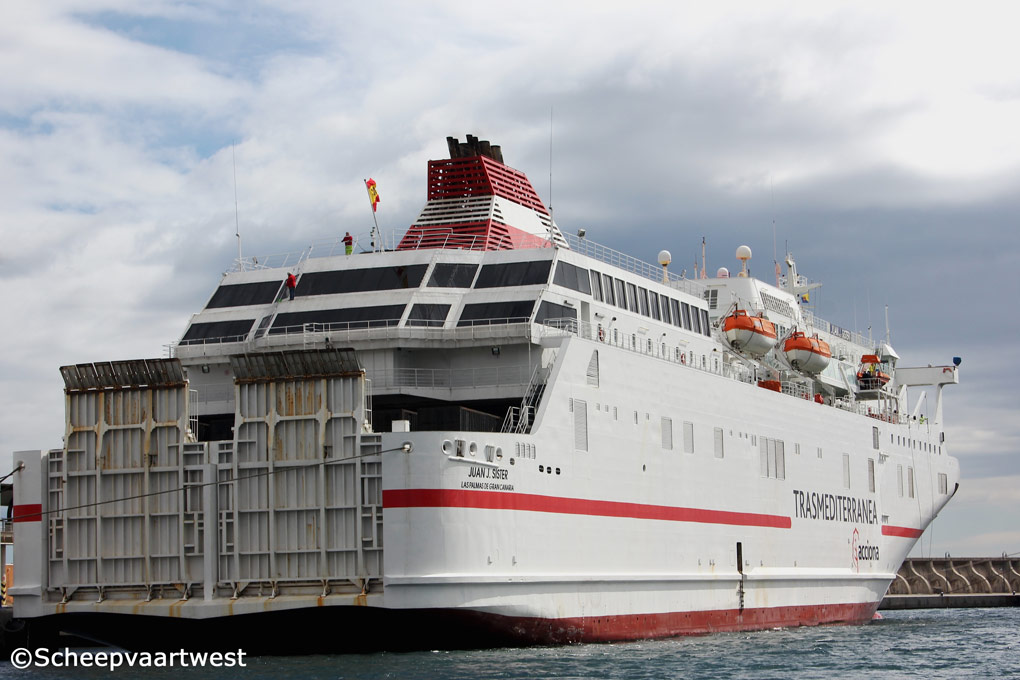

| Malaga, Spain 21/02/15 |
|
Name |
JUAN J. SISTER |
|
Type |
Roll-On/Roll-Off vessel - Passengers ferry |
|
IMO-number |
9039391 |
|
Call sign |
EAJB |
|
Flag |
Spain |
|
Port of registry |
Las Palmas De Gran Canaria |
|
GT |
22.409 t |
|
DWT |
Summer: 5.632 t |
|
NT |
11.008 t |
|
Length |
151,15 m overall 133,32 m between perpendiculars |
|
Breadth |
26,00 m |
|
Draught |
Summer: 6,00 m |
|
Linemetres |
1.680 |
|
Freeboard |
2.610 mm |
|
Depth |
8,60 m |
|
Speed |
Service: 18,0 knots Max.: 20,0 knots |
|
Line |
Melilla - Malaga |
|
Built |
1993 |
|
Date of completion |
12.05.1993 |
|
Builder |
STX Finland Cabins OY (Kvaerner Masa-Yards) |
|
Yard number |
1319 |
|
Hull material |
Steel |
|
Watertight bulkheads |
15 |
|
Continuous decks |
10 |
|
Main engine |
4x Wärtsilä 8R32E - 4 stroke 8 cylinder 320 x 350 mm diesel engine - 12.600 kW / 17.120 hp at 765 rpm Built: 1992 Builder: Wärtsilä, Vaasa - Finland |
|
Propelling system |
2x Screw Propeller controllable pitch at 139 rpm |
|
Boilers |
2x CHM Aalborg 12,00 m² - 8,00 bar |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
1x Diesel generatorset 456 kVA - 365 kW - 516 hp |
|
Number of passengers |
672 |
|
Number of cars |
170 |
|
Fuel capacity |
644 m³ |
|
Operator |
Acciona Trasmediterranea |
|
Owner |
Trasmediterranea (CIA) S.A. Madrid Spain |
|
Last update |
03.03.2013 |
