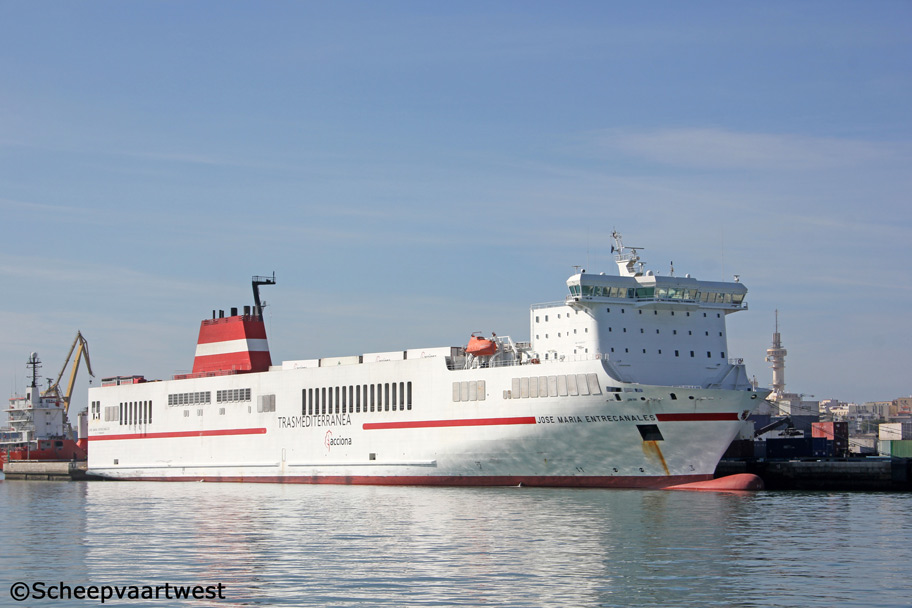

Cadiz - Spain 13 September 2014 |
|
Name |
JOSE MARIA ENTRECANALES |
|
Type |
Roll-On/Roll-Off vessel - Ferry |
|
IMO-number |
9399325 |
|
Call sign |
EADD |
|
Flag |
Canary Islands - Spain |
|
Port of registry |
Santa Cruz De Tenerife |
|
GT |
30.998 t |
|
DWT |
Summer: 10.140 t |
|
NT |
18.547 t |
|
Length |
209,43 m overall 190,00 m between perpendiculars |
|
Breadth |
26,50 m extreme |
|
Draught |
Max.: 7,10 m |
|
Lanemetres |
3.500 m |
|
Freeboard |
2.612 mm |
|
Depth |
23,55 m |
|
Speed |
Max.: 26,0 knots |
|
Route |
Cadiz - Canary Islands |
|
Built |
2010 |
|
Date of completion |
04.06.2010 |
|
Builder |
Navantia, S.A. Astilleros San Fernando - Puerto Real |
|
Yard number |
C-510 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
4 |
|
Main engine |
4x MAN B&W 9L48/60 B - 4 stroke 9 cylinder 480 x 600 mm diesel engines - 43.200 kW / 58.696 hp at 500 rpm Built: 29.02.2008 Builder: MAN B&W Diesel, Ulm - Germany |
|
Propellers |
2x Screw propeller controllable pitch - aft at 150 rpm |
|
Boilers |
2x CHR Aalborg 29,00 m² - 9,0 bar |
|
Shaft generator |
2x 2.500 kVA - 2.000 kW |
|
Generators |
1x Generator 538 kVA - 430 kW - 611 hp |
|
Emergency generator |
1x diesel generatorset 538 kVA - 430 kW - 654 hp |
|
Bow thruster |
2x 1.295 kW |
|
Number of passengers |
12 |
|
Number of beds |
12 |
|
Fuel capacity |
1.325 m³ |
|
Crew |
28 |
|
Manager |
Acciona Trasmediterranea |
|
Operator |
Transmediterranea Aciona |
|
Registered owner |
Trasmediterranea (CIA) S.A. |
|
Latest data adjustment |
19 October 2014 |
