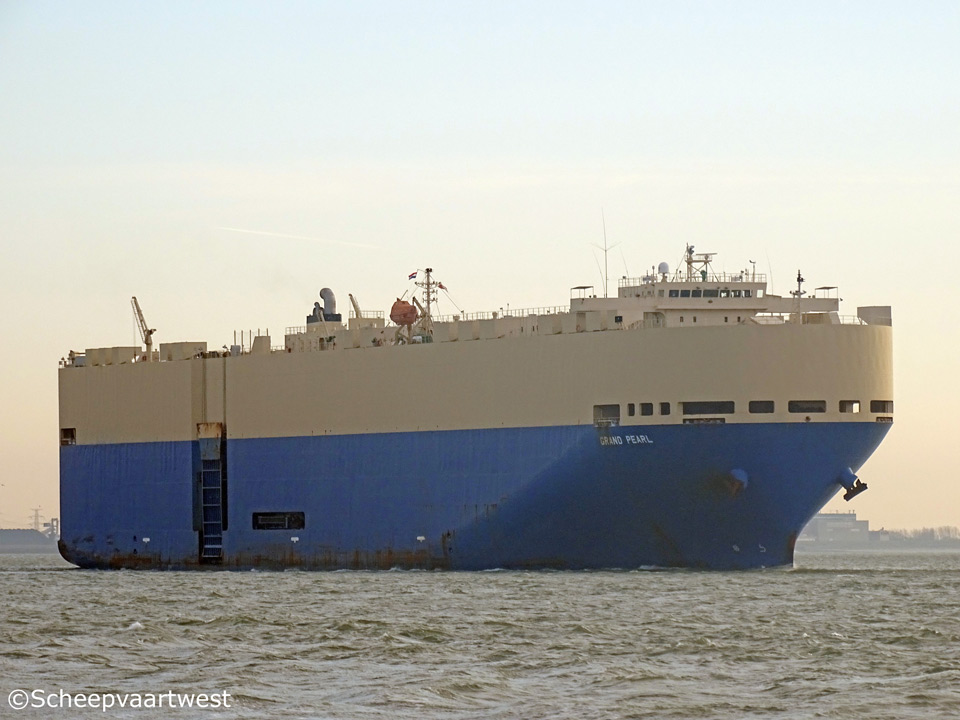

| Westerschelde 08 December 2015 |
 |
 |
 |
 |
|||

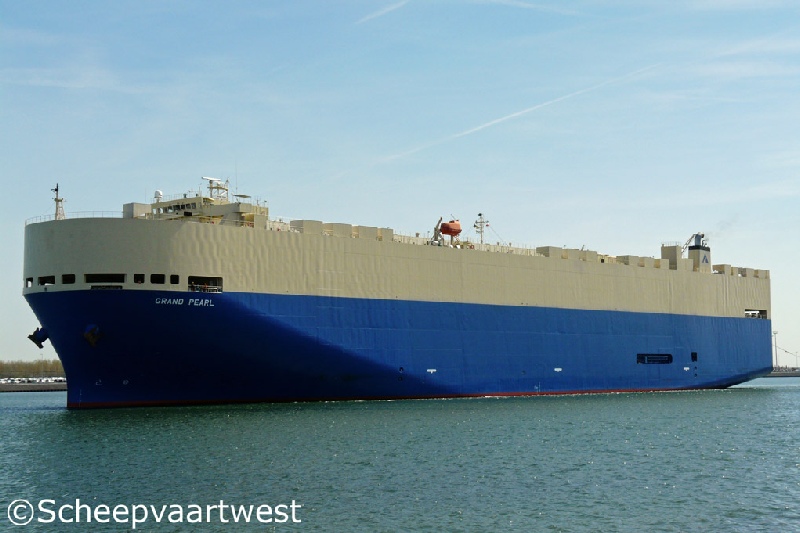

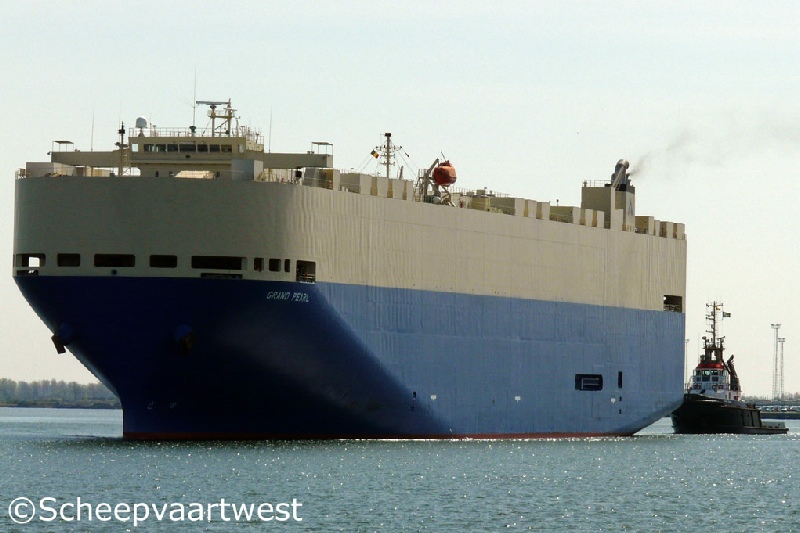

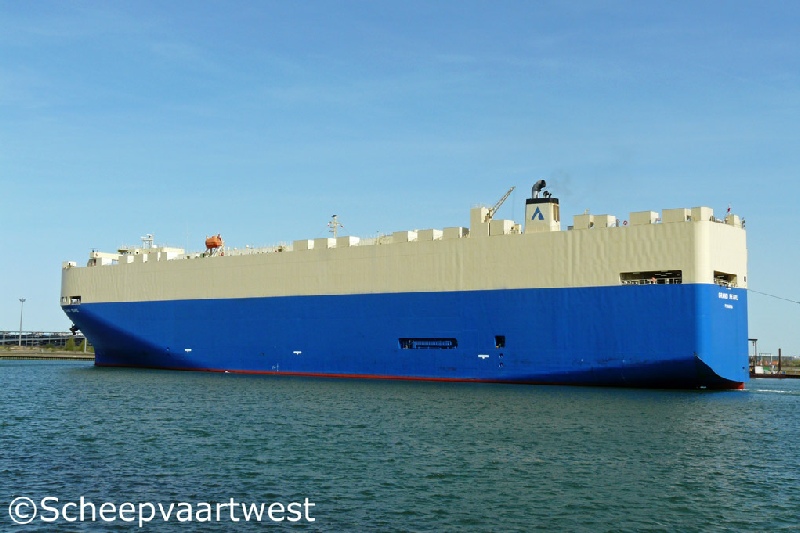

| Zeebrugge 14/04/10 | Zeebrugge 10/04/11 | Zeebrugge 10/04/11 | Zeebrugge 02/03/22 | |||
|
Name |
GRAND PEARL |
|
Type |
Roll-On/Roll-Off vehicle carrier PCC - Pure Car Carrier |
|
IMO-number |
9339844 |
|
Call sign |
3EPV3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
18.090 t |
|
NT |
17.766 t |
|
Length |
199,90 m over all |
|
Breadth |
32,26 m |
|
Draught |
Summer: 9,62 m |
|
Register dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Rule Dimensions L x B x D |
192,00 x 32,26 x 35,80 m |
|
Freeboard |
Summer: 4.664 mm |
|
Depth |
35,80 m |
|
Speed |
20,6 knots |
|
Built |
2008 |
|
Keel laid |
15/12/2004 |
|
Launch date |
10/01/2008 |
|
Date of completion |
03/04/2008 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
3606 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
5 |
|
Main engine |
1x MAN-B&W 7S60MC - 2 Stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.280 kW at 105,0 rpm Built: 2007 Builder: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works, Tamano - Japan |
|
Number of screws |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary steam type boiler - 6,9 bar Heating Surface: 44,8 m² 1x Auxiliary steam type boiler - 10,9 bar Heating Surface: 171,2 m² Built: 2008 Builder: Tortoise Engineering Co., Ltd., Ehime - Japan |
|
Generators |
4x Main diesel generatorsets 1.200 kVA - 450 Volt |
|
Number of decks |
9 |
|
Number of ramps |
3 |
|
Tank capacity |
Fuel oil: 3.132,70 m³ Fresh water: 466,00 m³ Water ballast: 10.155,20 m³ |
|
Crew |
21 |
|
Commercial manager |
Cido Shipping HK Co., Ltd. 20th Floor, World Wide House, 19, Des Voeux Road Central Hong Kong China |
|
ISM manager |
Cido Shipping(Korea) Co., Ltd. (Pusan Site) 3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu Busan, 614-706 South Korea |
|
Owner |
Dynamic Climber Shipping S.A. Care of Cido Shipping (HK) Co Ltd. 20th Floor, World Wide House, 19, Des Voeux Road Central Hong Kong China |
|
Renamed |
Gold Estrella Republic of Panama, Panama City - Call sign: 3EPV3 Manager: Cido Shipping (H.K.) Co., Ltd. ISM manager: Cido Shipping(Korea) Co., Ltd. Registered owner: Dynamic Climber Shipping S.A. |
|
Latest data adjustment |
16 April 2024 |
