Zeebrugge 04 July 2016 |
 |
| Zeebrugge 04/07/16 |
|
Name |

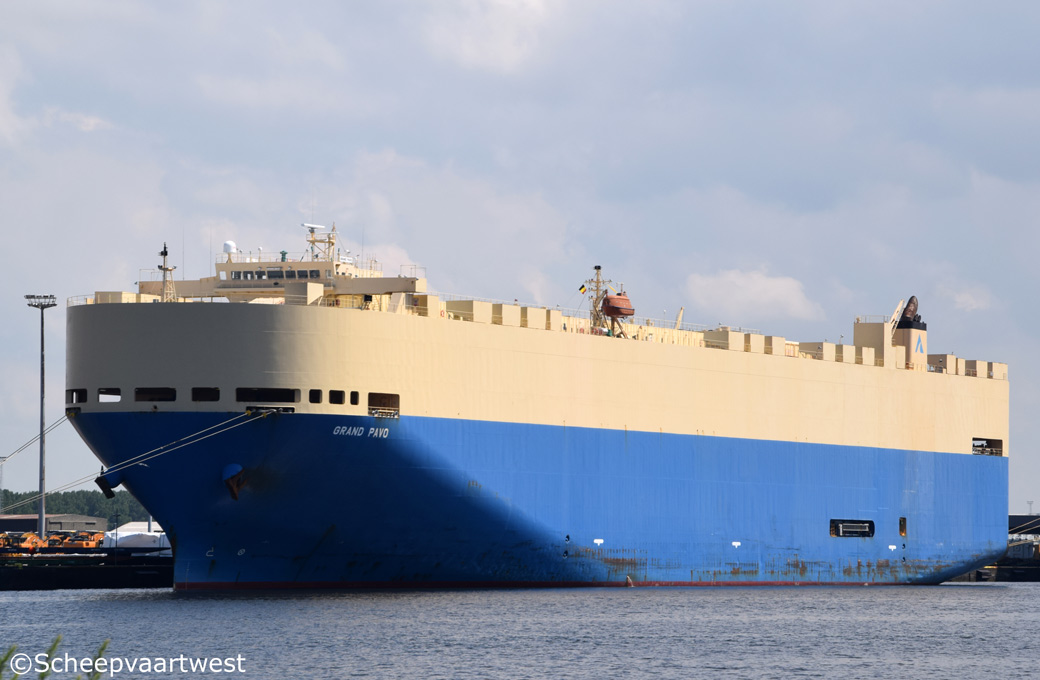

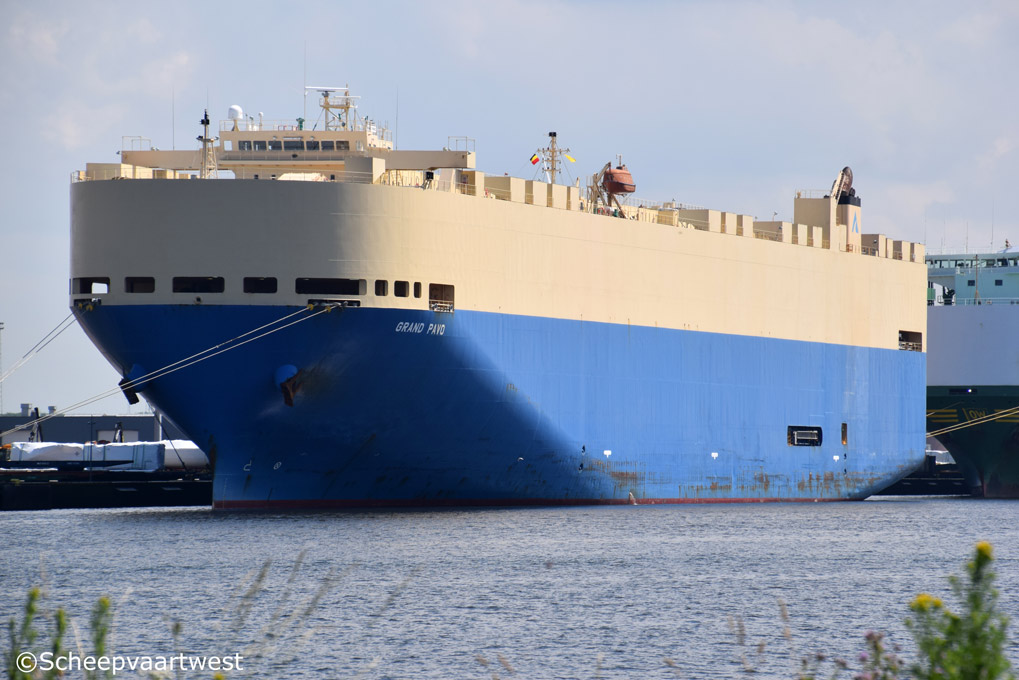

GRAND PAVO |
|
Type |
Roll-On/Roll-Off carrier - Car carrier Pure Car and Truck Carrier |
|
IMO-number |
9284776 |
|
Call sign |
3EAG4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
18.376 t |
|
Length |
199,90 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 9,62 m |
|
Reg. Dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Freeboard |
4.664 mm |
|
Speed |
20,6 knots |
|
Built |
2005 |
|
Keel laid |
18.06.2004 |
|
Launch date |
28.01.2005 |
|
Date of completion |
24.03.2005 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Japan |
|
Yard number |
H-3573 |
|
Hull material |
Steel |
|
Watertight bulkheads |
5 |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.292 mm diesel engine 14.280 kW at 105,0 rpm Built: 2004 Builder: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works, Tamano - Japan |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Boiler STB - 7,0 kg/cm² Heating Surface: 44,8 m² 2x Auxiliary Boiler STB - 10,0 kg/cm² Heating Surface: 171,2 m² Built: 10.2003 Builder: Ehime |
|
Generators |
4x Generators 1.200 kVA - 450 Volt |
|
Number of decks |
9 |
|
Tank capacities |
Fuel oil: 3.136,6 m³ fresh water: 466,2 m³ Water ballast: 9.535,6 m³ |
|
Crew |
21 |
|
Manager |
Cido Shipping (Hong Kong) Co., Ltd. |
|
Technical manager |
Cido Shipping(South Korea) Co., Ltd. (Pusan site) |
|
Registered owner |
Dynamic Growth Marine S.A. |
|
Latest data adjustment |
20 July 2016 |
