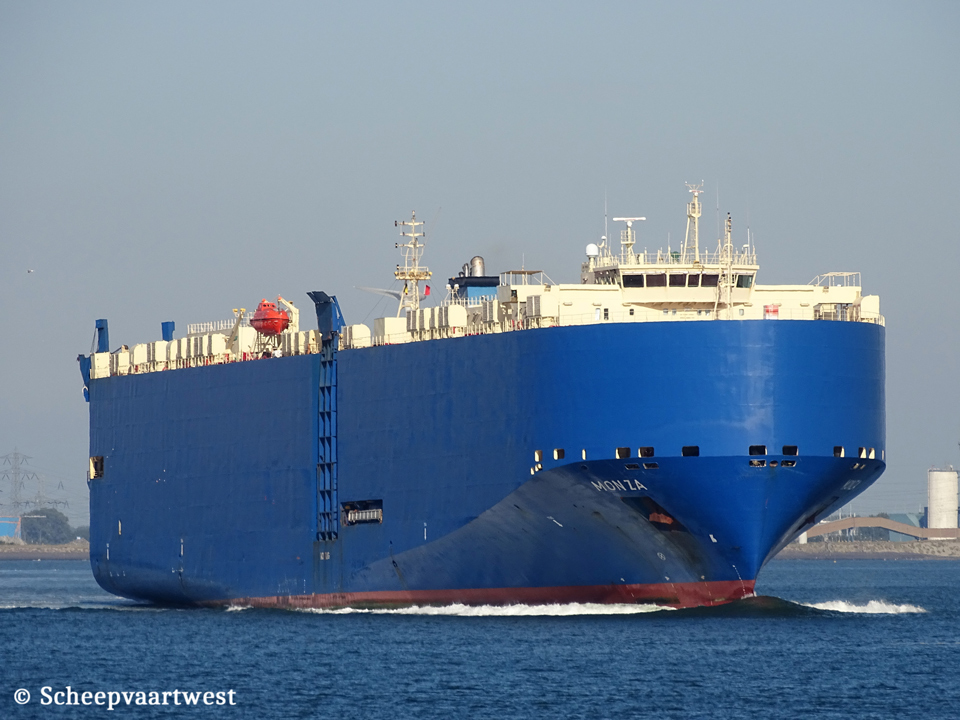

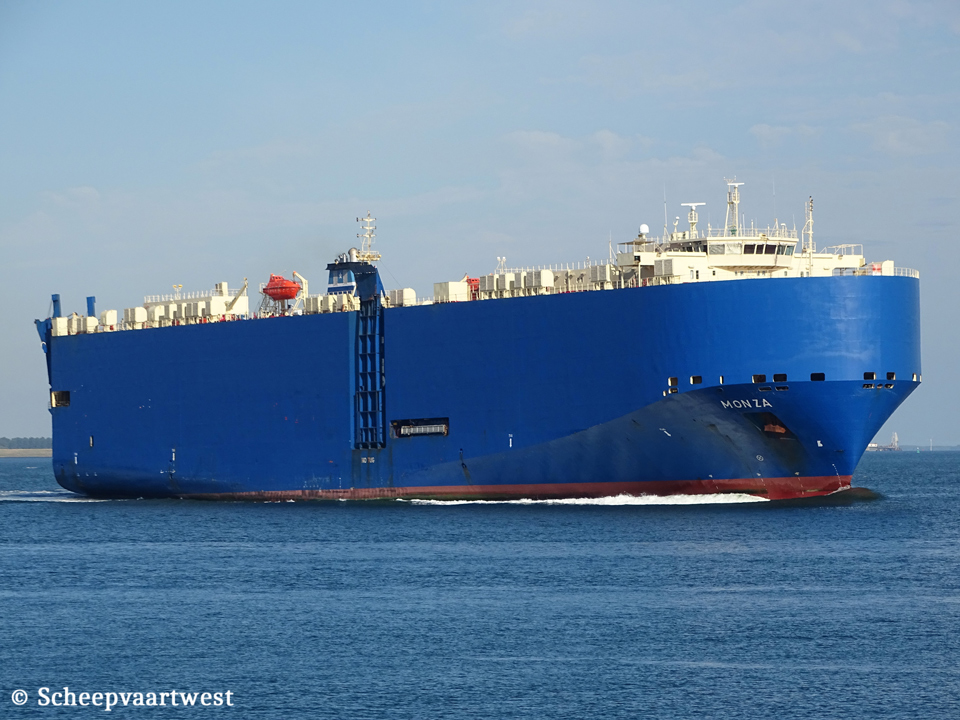

Westerschelde 05 June 2019 |
 |
 |
 |
||

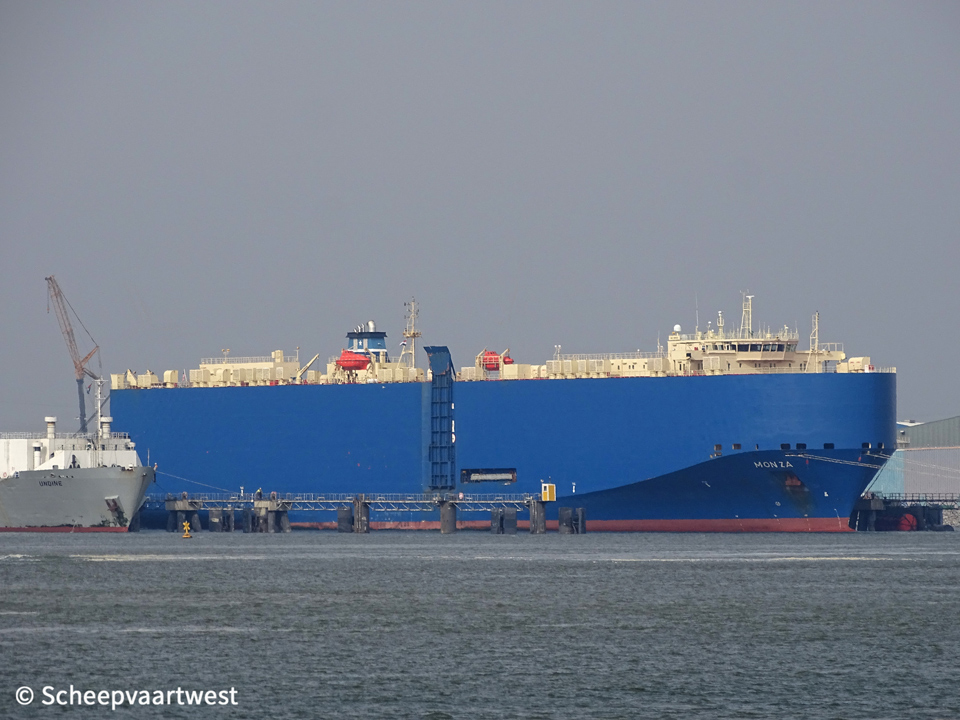

| Westerschelde 05/07/19 | Zeebrugge 11/09/20 | Vlissingen 23/04/19 |
|
Name |
MONZA |
|
Previous names |
2008 - 05/2011 Andino 05/2011 - 07/2013 STX Bluebird 07/2013 - 2018 Gral. Manuel Belgrano |
|
Type |
Roll-On/Roll-Off carrier - Pure car carrier |
|
IMO-number |
9358888 |
|
Call sign |
D5FS6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2009 - 2014 Germany - Call sign: DFRH2 |
|
GT |
40.628 t |
|
DWT |
Summer: 12.303,51 t |
|
NT |
12.579 t |
|
Length |
176,00 m overall 165,00 m between perpendiculars |
|
Breadth |
31,15 m extreme |
|
Draught |
Max: 8,75 m |
|
Depth |
30,00 m |
|
Speed |
Max: 19,6 knots |
|
Built |
2008 |
|
Keel laid |
14/07/2007 |
|
Launch date |
11/03/2008 |
|
Date of completion |
26/06/2008 |
|
Builder |
3. Maj Brodogradiliste D.D. Rijeka Croatia |
|
Yard number |
705 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä 7RT-Flex50 - 7 cylinder combustion engine 15.037 hp / 11.060 kW |
|
Propellers |
1x Fixed propeller |
|
Boilers |
Auxiliary boiler, exhaust gas heated Auxiliary boiler, oil/gas fired |
|
Generators |
3x MAN 8 L23/30H main diesel generatorsets |
|
Emergency generator |
1x Scania DI9 50M diesel generatorset |
|
Number of cars |
4.870 |
|
Deck area |
41.538 m² |
|
Ramps |
1x Quarter stern door 1x Side door |
|
Tank capacities |
Ballast: 3.890,9 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Crew size |
21 |
|
Manager |
NSC Shipping GmbH & Cie. KG Dockland | Van-der-Smissen-Str. 9 22767 Hamburg Germany |
|
Registered owner |
FHH Fonds Nr. 36 MS "MONZA" GmbH & Co. KG |
|
Latest data adjustment |
20 May 2020 |
