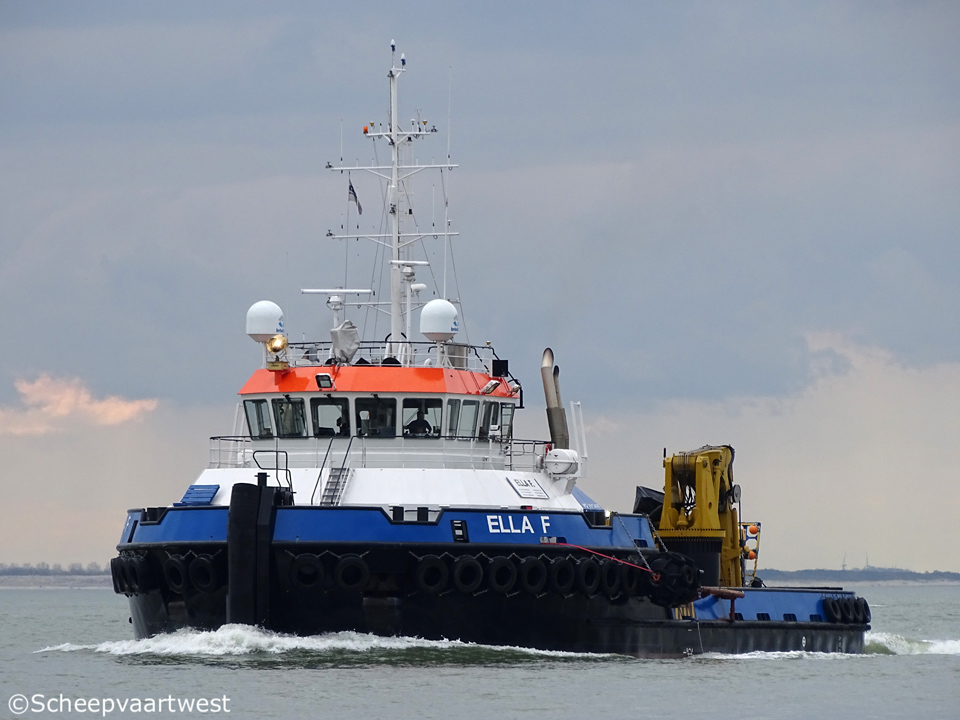

Ella F 01

Westerschelde 31 March 2018



Name

Ella F

Type

Tug - Neptune 35m Ultra Shallow Draft DpII MPSV

IMO-number

9813498

Call sign

PBMN

Flag

The Netherlands

Port of registry

Maassluis

GT

496 t

NT

146 t

Length

35,60 m overall

31,70 m between perpendiculars

Breadth

15,00 m

Draft

Aft: 1,40 m

Sides: 2,90 m

Freeboard

708 mm

Depth

2,90 m

Speed

10,0 knots

Built

2017

Launch date

24/01/2017

Date of completion

24/03/2017

Builder

Neptune Shipyards B.V.
Aalst
The Netherlands

Yard number

479

Hull material

Steel

Watertight compartments

4

Continuous decks

1

Main engine

3x Caterpillar C32 Acert electronic - 4 stroke 12 cylinder 145 x 162 mm combustion engines total 2.907 kW / 3.900 hp at 1.800 rpm

Built: 2016

Builder: Caterpillar Inc., Lafayette - USA

Propellers

3x Screw propeller solid in nozzle 1/850 mm - at 1.800 rpm

Shaft generator

1x 813 kVA - 650 kW

Generators

3x Caterpillar C9 diesel generatorsets each 270 kVA - 216 kW - 315 hp

Harbour generator

1x Caterpillar C32 diesel generatorset

Hydraulic power pack

2x 90 kW

Bow thruster

1x 275 kW tunnel (electrical driven)

Stern thruster

2x 275 kW tunnel (electrical driven)

Bollard pull

31,1 t

Winches

100 t Ridderinkhof anchor winch @ 7,00 m/18,00 m per min

64 t Ridderinkhof towing winch @ 11,00m/28,00 m per min

15 t Brevini tugger winch

Towing hook

Mampaey 35 ts SWL Disc

Deck space area

300 m²

Deck load

5,0 t/m²

Tank capacities

Fuel: 173 m³

Fresh water: 85 m³

Black/Grey water: 6,5 m³

Lub oil: 1,30 m³

Hydraulic oil: 1,30 m³

Dirty oil; 2,60 m³

Bilge water; 5,20 m³

Anchor equipment

2x Anchors each 375 kg

Chain length: 220,00 m

Lifting equipment

1x Heila HLRM 230 – 4SL with St crane winch:
SWL 10,3 t @ 16,50 m
SWL 24,4 t @ 7,89 m

Accommodation

Facilities for 21 Persons

Professional kitchen with stores elevator & walk in refrigeration

Fresh Water making facilities and sewage plant on board

On Board Hospital

Navigation equipment

2x DP II Independent Systems with integrated auto-pilot

1x DP II Sub-System with integrated auto-pilot

2x Radar connected to chart plotter with overlay

1x Radar Sub-system

2x Satcom C Units

3x Independent rudder indicators

1x Integrated fan beam monitor, control & fan beam on board Magnetic & Electronic compass's

2x GPS Units

Electronic chart plotter & Watch keeper alarm

Echo sounder

AIS

Navtex

Speed log

Talk-back unit

Communication equipment

3x Fixed VHF radio + 5 hand heldVHF Radios

2x Emergency GMDSS VHF Radios

Cell (GSM) phone

Satellite phone

SSB radio

Email

Other equipment

1x Integrated monitor, to connect with clientequipment

2x 2,3 t Ridderinkhof Windlass @10,00 m per min

Stern roller

35 t Towing hook/bit

Aft hydraulic chain stopper & towing pins

Deck flood lights

Fwd & Aft Search lights

Heated & Air conditioned sleeping accommodation& messing

Manager

GSS - Gareloch Support Services Ltd.
Haven 27
3143 BC Maassluis
The Netherlands

Owner

Gareloch Support Services (Plant) Ltd (GSS (Plant) Ltd).

Latest data adjustment

28 May 2018
