Mercurius 01

Spijkenisse 24 November 2016



Name

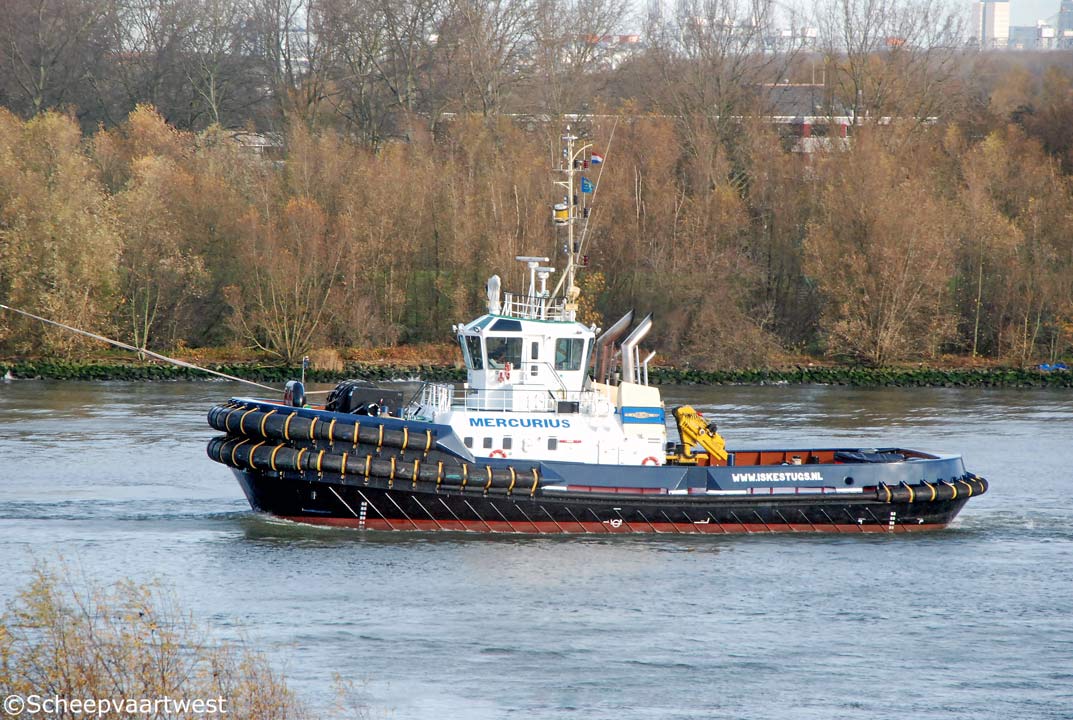

MERCURIUS

Type

Deep Sea, Escort, Port & terminal tug

Damen 3212

IMO-number

9695523

Call sign

PCYS

Flag

The Netherlands

Port of registry

IJmuiden

GT

447 t registered

DWT

250 t

Length

32,70 m overall

Breadth

12,82 m overall

Draught

5,28 m aft

Depth at sides

5,35 m

Speed

14,0 knots

Built

2014

Date of completion

22.07.2014

Builder casco

Damen Song Cam Shipyard -
Haiphong / Hanoi

Vietnam

Builder

B.V. Scheepswerf Damen - Gorinchem Yard

Gorinchem
The Netherlands

Yard number

512533

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar 3516C HD+ TA/D - 4 stroke single acting 16 cylinder 170 x 215 mm diesel engines each 2.525 kW / 3.433 bhp total 6.866 hbp / 5.050 kW at 1.800 rpm

Starter type: Electrical starter

Built: 2012

Builder: Caterpillar Tractor Co.

Propellers

2x Rolls Royce US-255-P30-CP Azimuth stern drive propellers

Diameter: 2.800 mm - 5 blades

Electric installations

400/230 V / 50 Hz

Generators

2x Caterpillar C6.6 TA Acert 6 cylinder 105 x 127 mm diesel engine 117,2 kW each at 1.500 rpm coupled with

Leroy Somer LSAM 44.2M95 C6/4 generators each 125 kVA

Built: 2012

Builder: Caterpillar Tractor Co.

Bollard pull

82,0 t ahead

75 t astern

Towing equipment

Winches: DMT ATW 221-H22

Anchor/Towing winch: Hydraulically driven double drum winch

Wires winch fore: 2× 150 m, 80 mm harbour wire

Deck equipment

Hydraulic deck crane: Heila HLM 20-3S - SWL 1,7 t at 10,26 mm

Capstan: 5,0 t

Towing hook: Mampaey SWL 100 t

Tank capacities

Potable Water: 15,2 m³

Fuel: 133,2 m³

Lubricating oil: 8,1 m³

Hydraulic oil: 2,8 m³

Dirty oil: 4,2 m³

Sewage: 5,1 m³

Bilge water: 6,8 m³

Sludge: 2,4 m³

Anchor equipment

2

Length: 302,50 m

Weight: 495 kg each

Accommodation

For 7 persons

Bridge equipment

Searchlight: 2× Pesh 1.000 W 230 V

Horn: Ibuki E150

Radar System: 1× JRC JMA-5212-4BB / 1× JRC JMA-5212-6BB

Compass: Magnetic Kotter

Satellite compass: Furuno SC-50

Autopilot: Robertson AP-70

GPS: Furuno GP-150

Echosounder: Furuno FE-700

Speedlog: Furuno DS-80

VHF radio telephone: 3× Sailor 6222

VHF handheld: 4× Jotron TRON TR-20

UHF: Motorola GM380

Navtex: Furuno NX-700

AIS: Furuno FA-150

EPIRB: Jotron Tron 40S

SART: Jotron Tron Sart 20

SSB: Furuno FS-1575

Immersart: 2× Furuno Felcom 18

Owner

Iskes Towage & Salvage
Monnickendamkade 19 D/E
1976 EC Ijmuiden
The Netherlands

Latest data adjustment

11 March 2017
