| Westerschelde 06 June 2012 |
 |
| Westerschelde 06/06/12 |
|
Name |

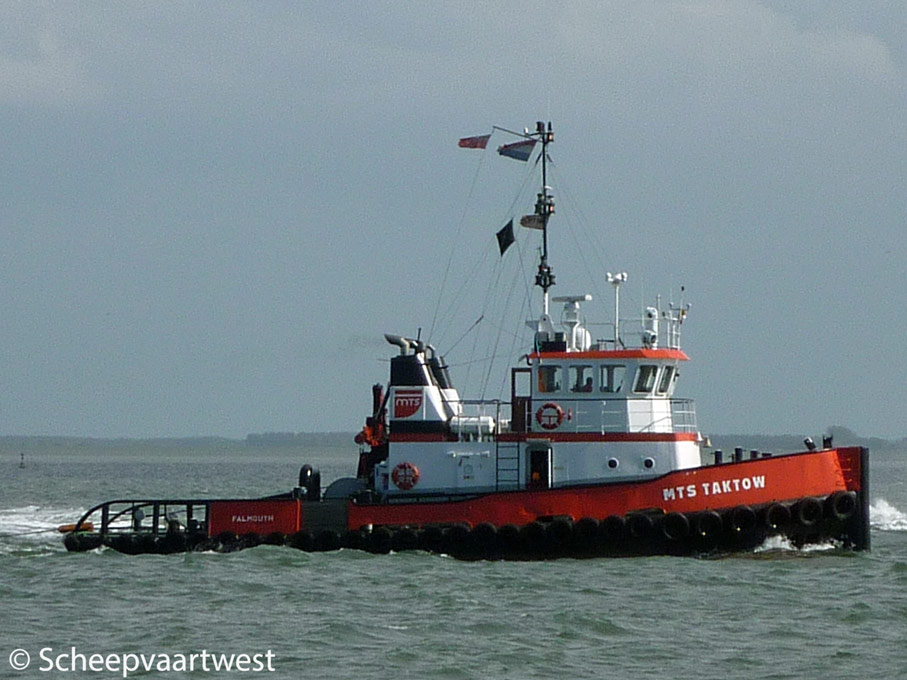

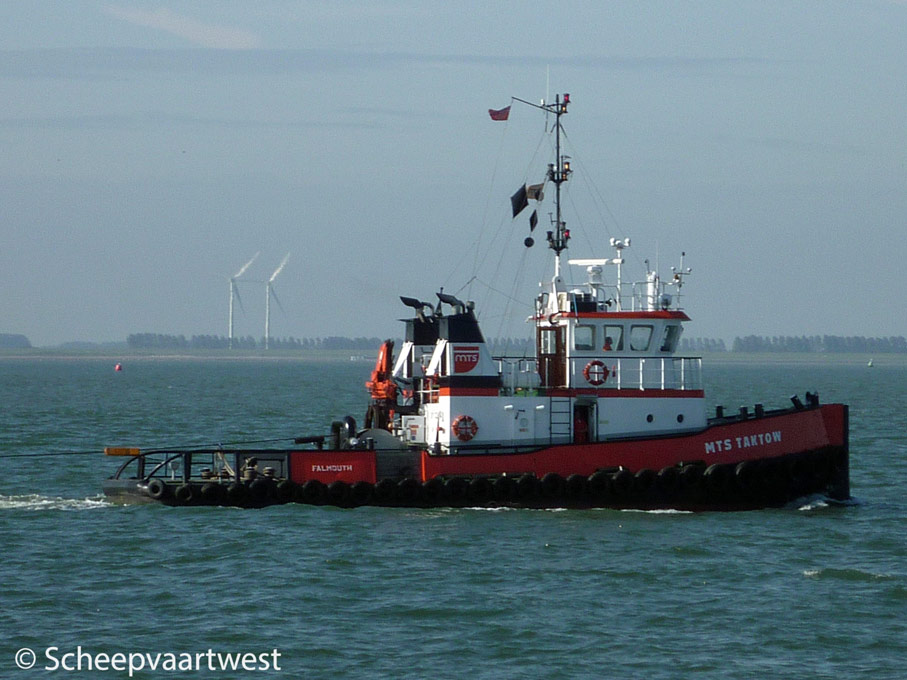

MTS TAKTOW |
|
Previous names |
1981 - 12.2006 Taktow 1 - Smit Tak Internationaal Bergingsbedrijf NV" at Rotterdam - The Netherlands (call sign PHWP) Taktow - Until 11.2007 |
|
Type |
Multi-purpose tug |
|
Basic functions |
Towing, mooring, barge handling, anchor handling, dredging support |
|
IMO-number |
8133827 |
|
Call sign |
MBGN |
|
Flag |
United Kingdom |
|
Port of registry |
Falmouyh |
|
GT |
109 t |
|
Length |
22,51 m overall 20,40 m between perpendiculars |
|
Breadth |
6,80 m |
|
Draught |
3,44 m at sides 3,00 m aft |
|
Depth |
3,32 m |
|
Speed |
Max.: 11,8 knots |
|
Built |
1981 Rebuild: 2007 |
|
Builder |
Damen Shipyard Gorinchem |
|
Yard number |
2710 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar Type V8 D379 TTA - 4 stroke 8 cylinder 159 x 203 mm diesel engine - total 1.220 hp / 955 kW at 1.225 rpm Built: 1981 |
|
Gearboxes |
2x Reintjes 3,06:1 |
|
Propulsion |
2x Promarin fixed pitch propellers - at 350 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
1x Caterpillar diesel generatorset 62 kVA 1x Caterpillar diesel generatorset 68 kVA |
|
Deck lay-out
|
Anchor winch: Twin hydraulic plus capstan Anchor handling: Twin drum Brussell winch Towing winch: 525 m/ 100 m - 34 mm wire Capstan: 5 t (Stern deck) Stern roller: 3.360 mm hd fixed |
|
Bollard pull |
18,2 t |
|
Tank capacities |
Fuel oil: 29,50 m³ Fresh water: 5,60 m³ Lub oil: 0,90 m³ |
|
Lifting equipment |
1x Deck cranes HIAB - SWL 5,0 t |
|
Features |
2x 300 W Pesche Searchlights Furuno GP150 GPS Navigation Station 17” screen Plotter Navitronics Autopilot Furuno Echo Sounder 3x Sailor 4822 (1 x DSC) VHF system SRH NAV 5 NAVTEX HF/MF Radio, telephone, fax JRC AIS |
|
Accommodation |
Heated living spaces for 7 persons, consisting of a captain’s cabin, a C.E. cabin, two single and one triple crew cabin, a galley and sanitary facilities |
|
Owner |
MTS Group Ltd. |
|
Registered owner |
Marine and Towage Services Group Ltd. |
|
Last update |
10 November 2013 |
