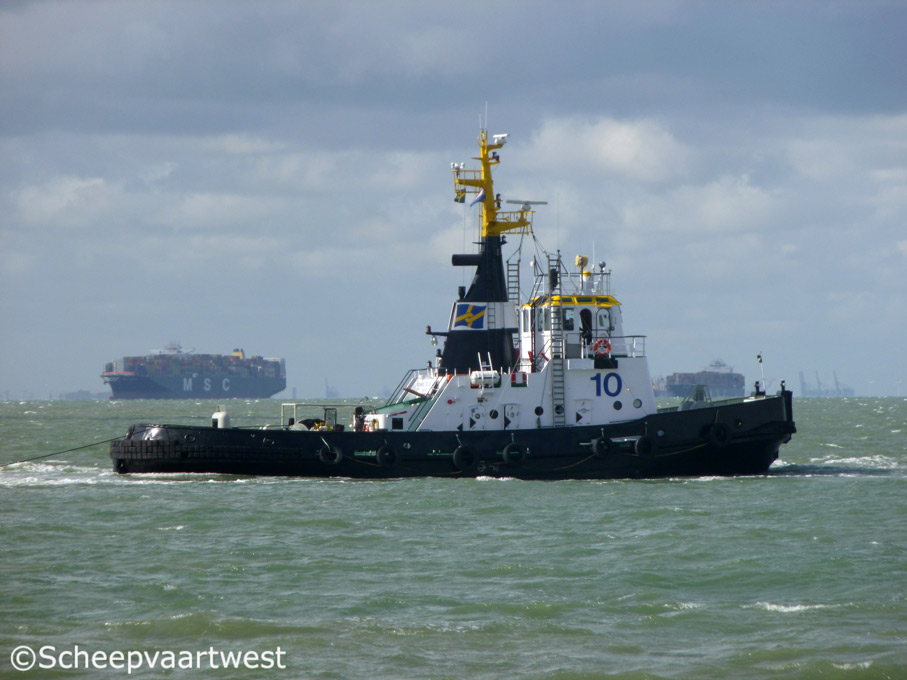

| Westerschelde 11 June 2014 |
 |
 |
 |
||

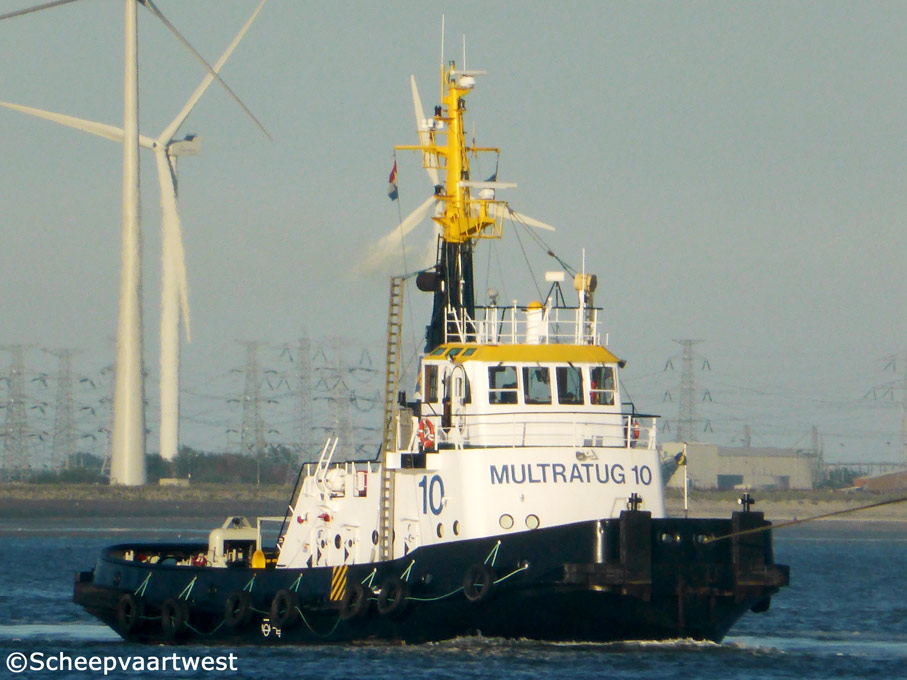

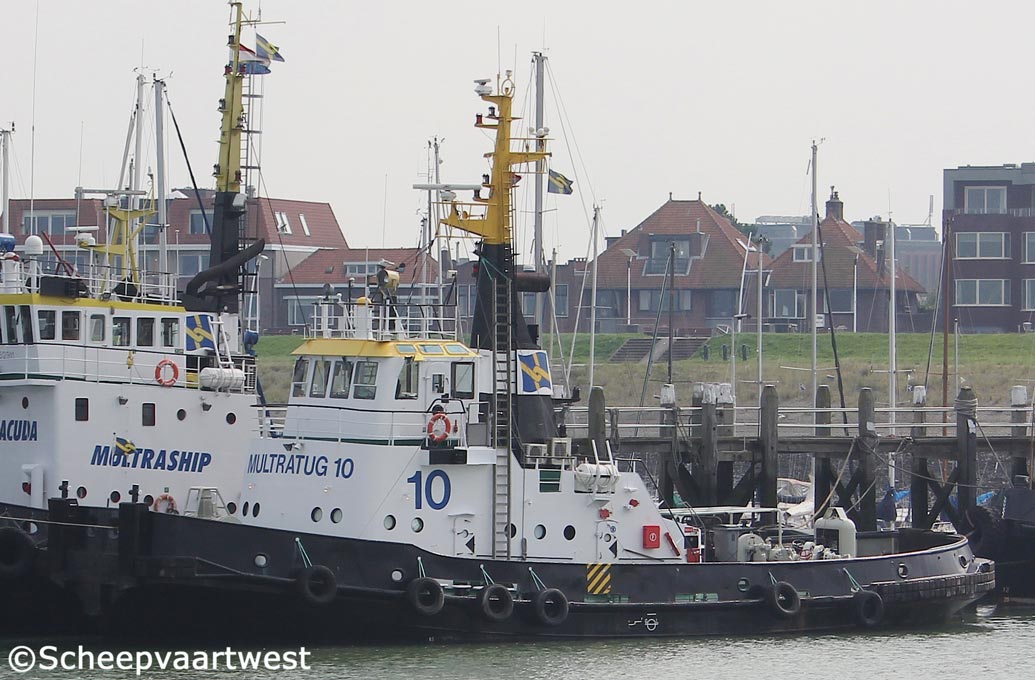

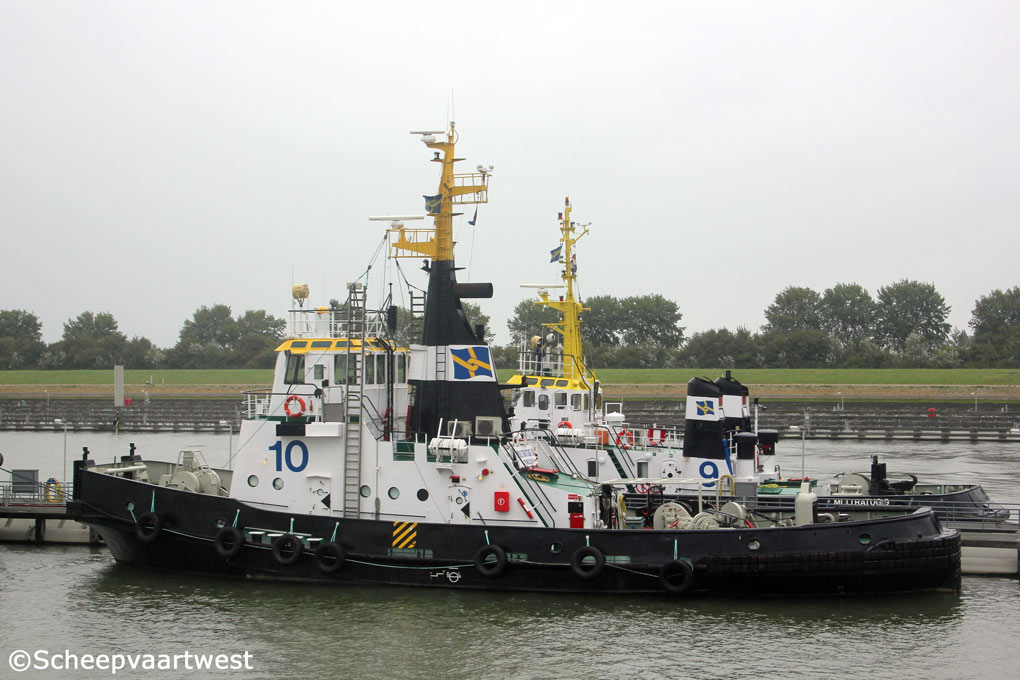

| Westerschelde 19/09/12 | Terneuzen 17/08/14 | Terneuzen 04/09/14 | ||
|
Name |
MULTRATUG 10 |
|
Previous names |
Launch as: Mercur 1973 - 19.08.2000 Saturn |
|
Type |
Tug |
|
IMO-number |
7232638 |
|
Call sign |
PEDA |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
GT |
243 t |
|
DWT |
78 t |
|
NT |
73 t |
|
Length |
29,85 m overall 28,08 m registered |
|
Breadth |
8,80 m registered |
|
Draught |
3,038 m |
|
Depth |
3,60 m moulded |
|
Speed |
Max.: 12,0 knots |
|
Built |
1973 |
|
Keel laid |
30.06.1972 |
|
Launch date |
11.11.1972 |
|
Date of completion |
02.1973 |
|
Builder |
Jadewerft Wilhelmshaven GmbH |
|
Yard number |
131 |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz SBA 8M 528 - 4 stroke 8 cylinder 220 x 280 mm diesel engines - each 736 kW total 1.472 kW at 900 rpm Year of manufacture: 1972 Manufacturer: Klöckner-Humboldt-Deutz AG |
|
Propellers |
2x Voith-Schneider-propeller - front at 62 rpm |
|
Electric installations |
1x Plant 380/220 V - 7,5 kVA 1x Plant 380/220 V - 56 kVA 1x Plant 380/220 V - 56 kVA |
|
Generators |
2x Main diesel generatorsets each 56 kVA 1x Main diesel generatorset 7,5 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bollard pull |
30 t |
|
Fuel capacity |
53 m³ |
|
Manager |
Multraship Towage & Salvage BV |
|
Owner |
Multratug B.V. |
|
Latest data Adjustment |
12 July 2014 |
