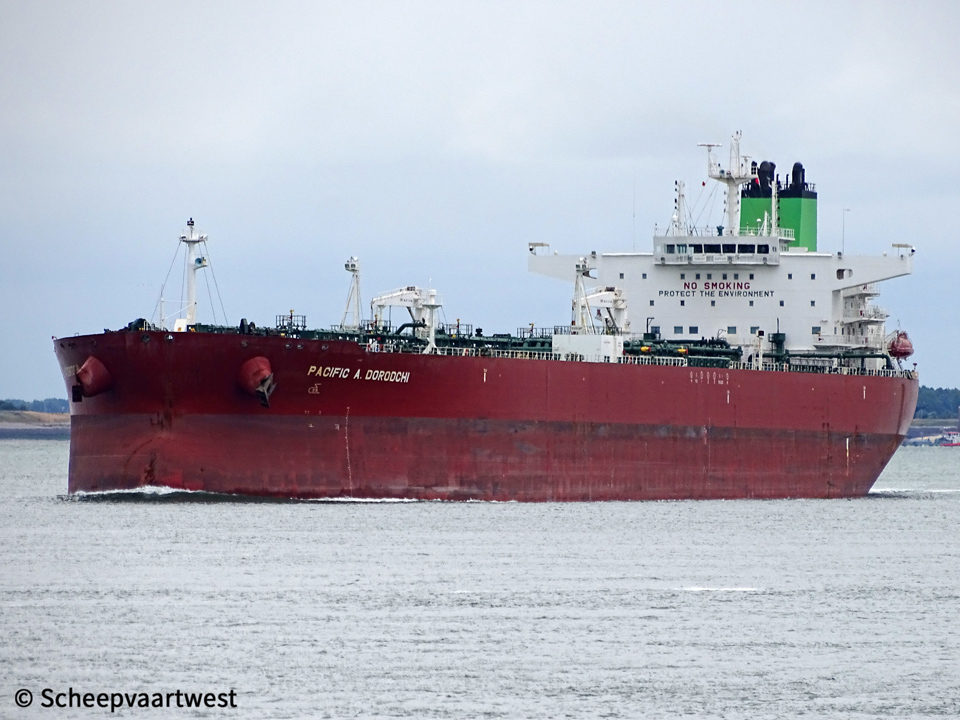

Westerschelde 15 July 2019 |
 |

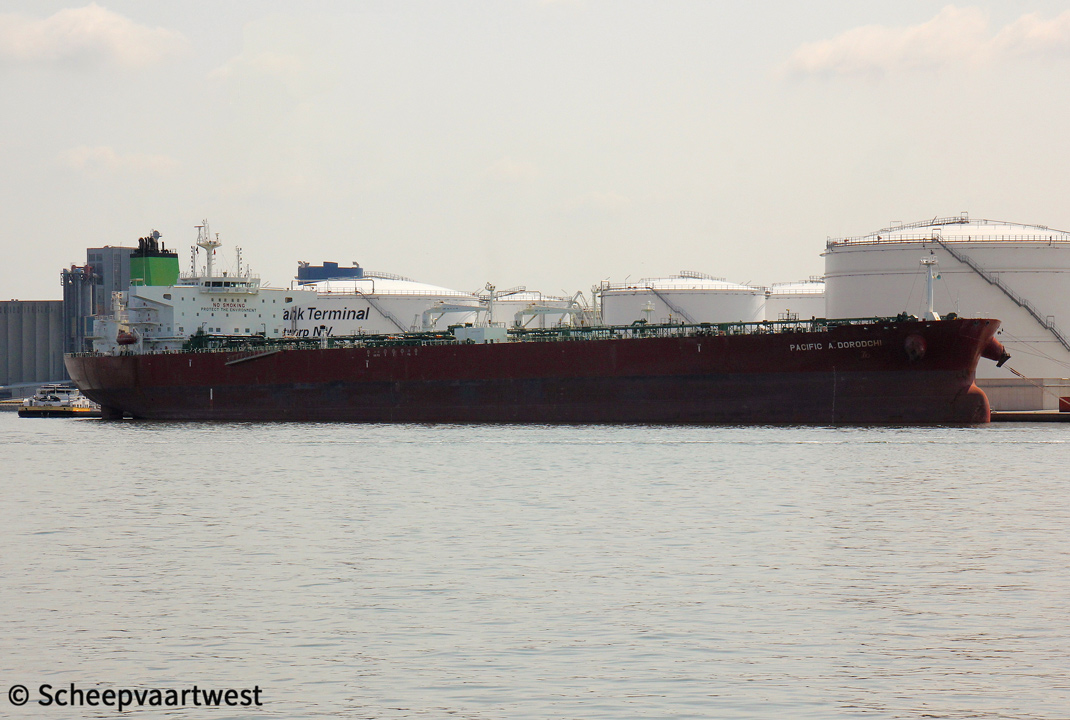

| Antwerpen 17/07/19 |
|
Name |
PACIFIC A DORODCHI |
|
Type |
Crude oil tanker - Aframax |
|
IMO-number |
9732266 |
|
Call sign |
V7HY6 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
Republic of Panama, Panama City |
|
GT |
62.397 t registered Suez: 63.806,22 t |
|
DWT |
Summer: 109.999 t |
|
NT |
33.386 t registered Suez: 58.233,25 t Panama: 51.268 t |
|
Displacement |
119.362,1 t |
|
Length |
249,90 m overall 242,00 m between perpendiculars |
|
Breadth |
44,00 m moulded |
|
Draught |
Max: 14,64 m |
|
Reg. dimensions L x B x D |
242,98 x 44,00 x 21,20 m |
|
Rule Dimensions L x B x D |
239,05 x 44,00 x 21,20 m |
|
Freeboard |
6.594 mm |
|
Depth |
21,20 m moulded |
|
Speed |
14,0 knots |
|
Built |
2016 |
|
Keel laid |
16/11/2015 |
|
Launch date |
01/05/2016 |
|
Delivery date |
12/09/2016 |
|
Builder |
Daehan Shipbuilding Co., Ltd. 498, Chosunso-Gil Hwawon-Myeon Haenam South Korea |
|
Yard number |
H5007 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI 6G60ME-C9.5 - 2 stroke6 cylinder 600 x 2.790 mm combustion engine 11.150 kW at 81,7 rpm Build: 03/2016 Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1 Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
2x Auxiliary water tube boiler - 17,6 bar Heating surface: 289 m³ 1x Composite boiler - 8,0 bar Build: 02/2016 Manufacturer: Kangrim Heavy Industries Co., Ltd., Changwon South Korea |
|
Generators |
3x HHI type 5H21/32 - 5 cylinder 210 x 320 mm combustion engines each 960 kW at 900 rpm connected with 3 type HFC7 506-08P generators each 900 kW / 1.125 kVA / 450 Volt Manufacturer: HHI Engine & Machinery Div. / HHI Electro Electric System |
|
Cargo tank capacity |
129.897,1 m³ |
|
Tank capacities |
Fuel oil: 2.090,2 m³ Lube oil: 237,0 m³ Fresh water: 433,8 m³ Diesel oil: 689,6 m³ Ballast: 41.391,9 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t Manufacturer: Oriental Precision Machinery Co., Ltd. 1x Hose handling crane port - SWL 15,0 t 1x Hose handling crane starboard - SWL 15,0 t 1x Provision crane port - SWL 4,0 t 1x Provision crane starboard - SWL 2,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
28 |
|
Manager |
Fleet Management Limited |
|
Technical manager |
Sinokor Maritime Co.,Ltd. |
|
Registered owner |
Compass Shipping 38 Corporation Limited |
|
Latest data adjustment |
27 June 2020 |
