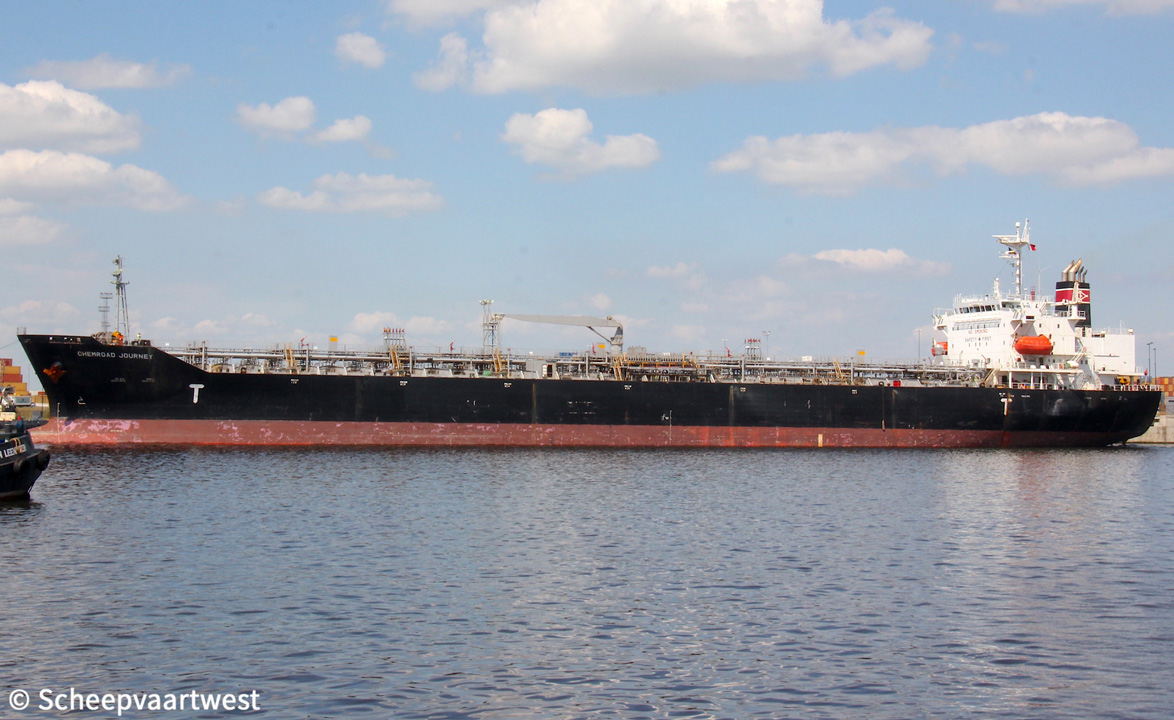

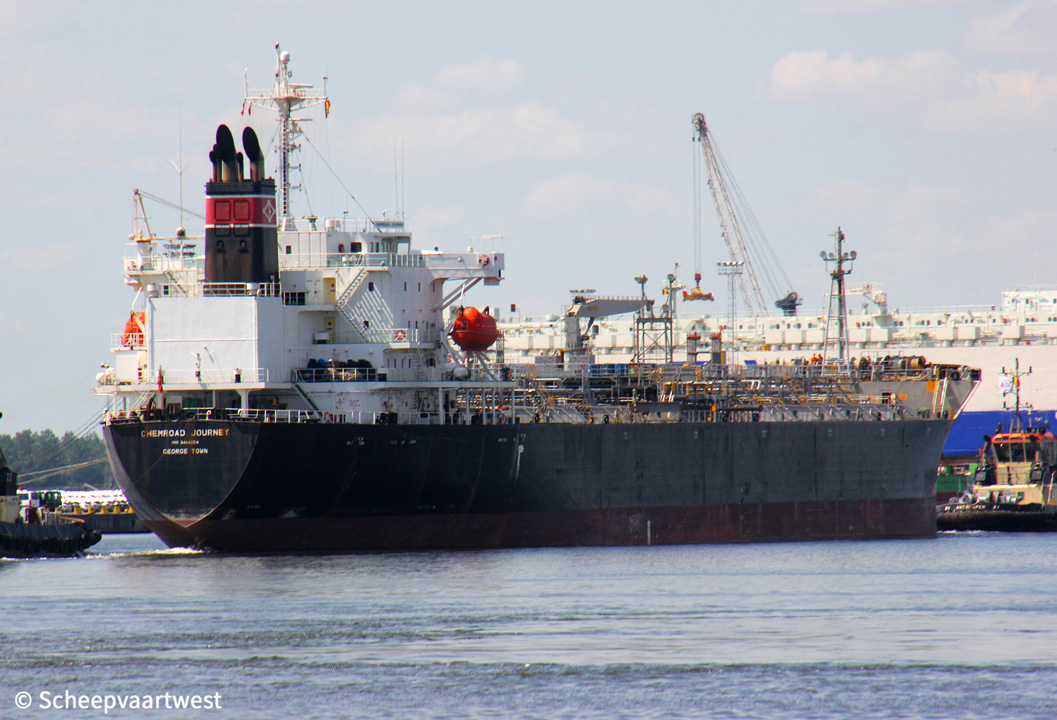

Doel, Belgium 29 July 2019 |
 |
| Doel, Belgium 29/07/19 |
|
Name |
CHEMROAD JOURNEY |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9414254 |
|
Call sign |
3FUN3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flags |
2009 - 2019 Cayman Islands, George town - Call sign: ZCYY9 |
|
GT |
20.108 t registered |
|
DWT |
Summer: 33.526 t |
|
NT |
9.165 t registered |
|
Length |
174,39 m overall |
|
Breadth |
27,70 m moulded |
|
Draught |
Max: 11,02 m |
|
Moulded L x B x D |
167,00 x 27,70 x 16,00 m |
|
Registered L x B x D |
167,62 x 27,70 x 16,00 m |
|
Freeboard |
Summer: 5.014 mm |
|
Depth |
16,00 m moulded |
|
Speed |
Service: 15,0 knots Max: 16,7 knots |
|
Built |
2009 |
|
Keel laid |
06/03/2009 |
|
Launch date |
09/07/2009 |
|
Date of completion |
20/10/2009 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5536 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 6UEC52LS - 2 Stroke single acting 6 cylinder 520 x 1.850 mm combustion engine 7.980 kW at120,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 460 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 21,46 t/h Manufacturer: Aalborg Industries Co.,Ltd. |
|
Generators |
4x Generatorsets total 2.640 kVA |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity |
Liquid: 37.285 m³ |
|
Tank capacities |
Fuel oil: 1.814,00 m³ Fresh water: 488,84 m³ |
|
Crew size |
25 |
|
Manager |
Iino Marine Service Co., Ltd. Tokyo Japan |
|
Registered owner |
Cobalt Blue Shipping SA |
|
Latest data adjustment |
21 February 2020 |
