Chem Houston 01

Westerschelde 31 March 2018

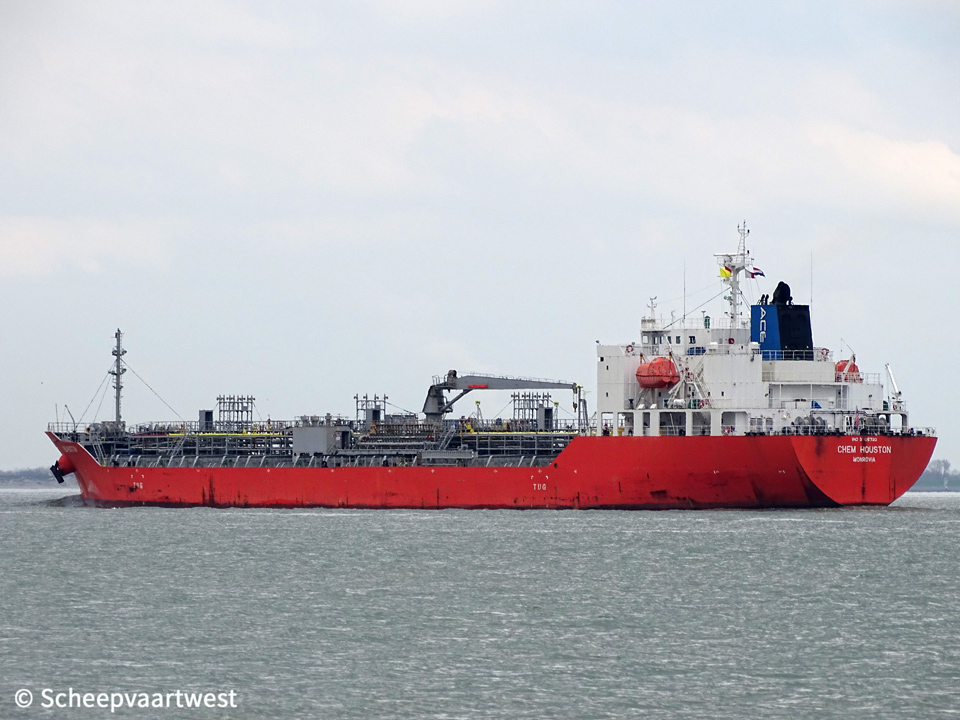

Chem Houston 02
Westerschelde 31/03/18













Name

CHEM HOUSTON

Type

Chemical & Oil product tanker

IMO-number

9705720

Call sign

D5FT8

Flag

Liberia

Port of registry

Monrovia

GT

12.129 t registered

DWT

Summer: 19.996,83 t

NT

6.225 t registered

Length

145,00 m overall

Breadth

24,20 m moulded

Draught

Summer: 9,78 m

Moulded L x B x D

139,00 x 24,20 x 13,20 m

Registered L x B x D

139,26 x 24,20 x 13,20 m

Freeboard

Summer: 3.445 mm

Depth

13,20 m moulder

Speed

Max: 15,3 knots

Built

2014

Keel laid

16/10/2013

Launch date

18/03/2014

Date of completion

19/07/2014

Builder

KitaniHon Shipbuilding Co., Ltd.

Hachinohe

Japan

Yard number

566

Hull material

Steel

Hull type

Double Hull

Continuous decks

1

Main engine

1x Mitsubishi 6UEC43LSII - 2 stroke single acting 6 cylinder 420 x 1.500 mm combustion engine 4.900 kW / 6.662 hp at 125,0 rpm

Manufacturer: Akasaka Diesels Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,0 bar

Evaporation: 16,28 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 530 kW

Bow thruster

1x Tunnel thruster 700 kW / 952 bhp, forward

Number of cargo tanks

20

Cargo tank capacity 98%

Liquid: 20.664 m³

Slop tank capacity

1.280 m³

Pumps

20x Cargo pumps each 250 m³/h

Tank capacities

Fuel oil: 1.107 m³

Fresh water: 415 m³

Crew size

19

Manager

ASM Maritime B.V.

Operator

Ace Ships Management BV

Strawinskylaan 1997

1077 XX Amsterdam

The Netherlands

Registered owner

Chem Houston SA-LIB

Latest data adjustment

04 December 2019
