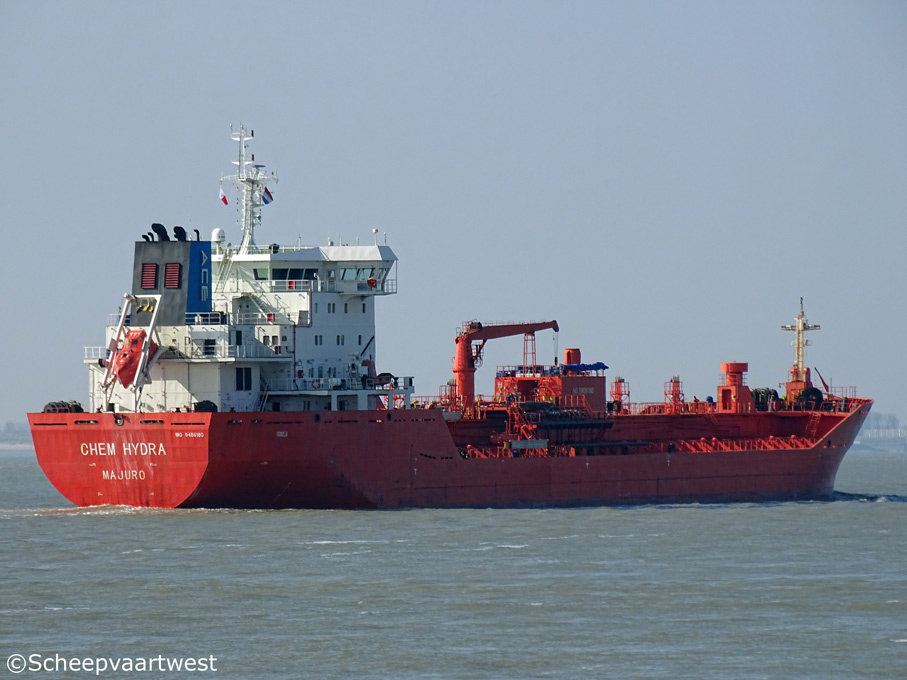

Westerschelde 13 March 2016 |
|
Name |
CHEM HYDRA |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9486180 |
|
Call sign |
V7RU2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
11.939 t registered |
|
DWT |
Summer: 17.055 t |
|
NT |
5.180 t registered |
|
Length |
144,80 m overall |
|
Breadth |
23,00 m moulded |
|
Draught |
8,92m |
|
Moulded L x B x D |
134,73 x 23,00 x 12,40 m |
|
Registered L x B x D |
134,73 x 23,00 x 12,40 m |
|
Freeboard |
3.512 mm |
|
Depth |
12,40 m moulded |
|
Speed |
13,0 knots |
|
Built |
2009 |
|
Keel laid |
18.05.2008 |
|
Date of completion |
20.07.2009 |
|
Builder |
Ningbo Xinle Shipbuilding Co., Ltd. |
|
Yard number |
XL-111 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 7S35MC - 2 stroke single acting 7 cylinder 350 x 1.400 mm diesel engine 5.180 kW at 173,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 13,2 bar Evaporation: 2,60 t/h 1x Auxiliary vertical boiler - 13,2 bar Evaporation: 2,20 t/h Manufacturer: Aalborg Industries Pte. Ltd. |
|
Generators |
3x Main diesel generatorsets each 640 kW |
|
Bow thruster |
1x 690 kW |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity |
Liquid: 19.562 m³ |
|
Tank capacities |
Fuel oil: 922 m³ fresh water: 440 m² Water ballast: 8.005 m³ |
|
Manager |
ASM Maritime B.V. |
|
Operator |
Ace Tankers CV |
|
Registered owner |
Chem Hydra S.A. |
|
Latest data adjustment |
25 April 2016 |
