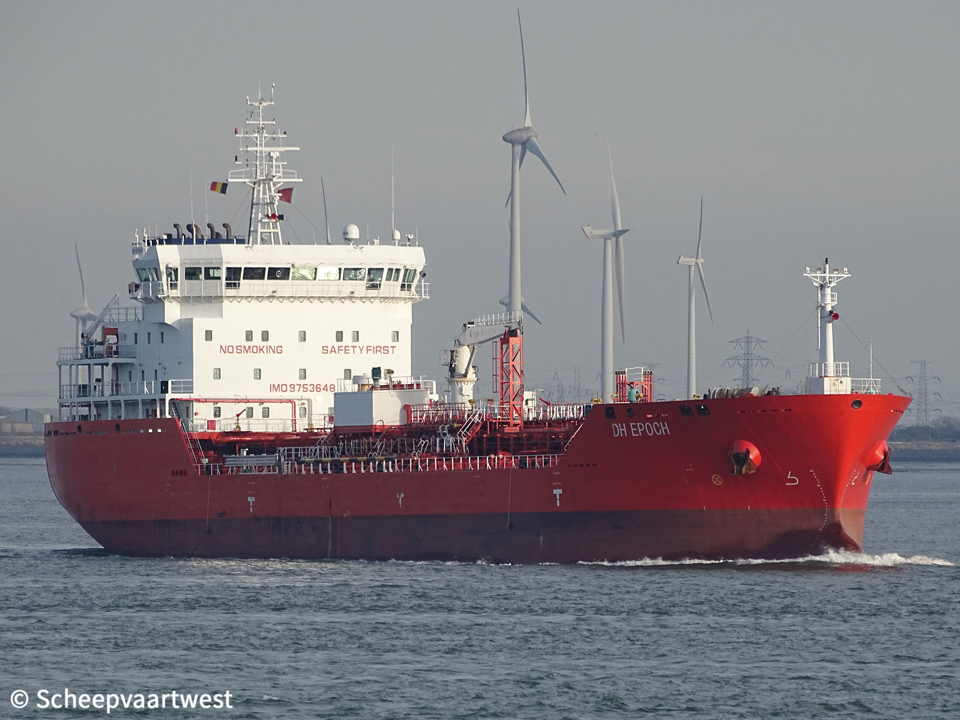

DH Epoch 01

Westerschelde 03 November 2018

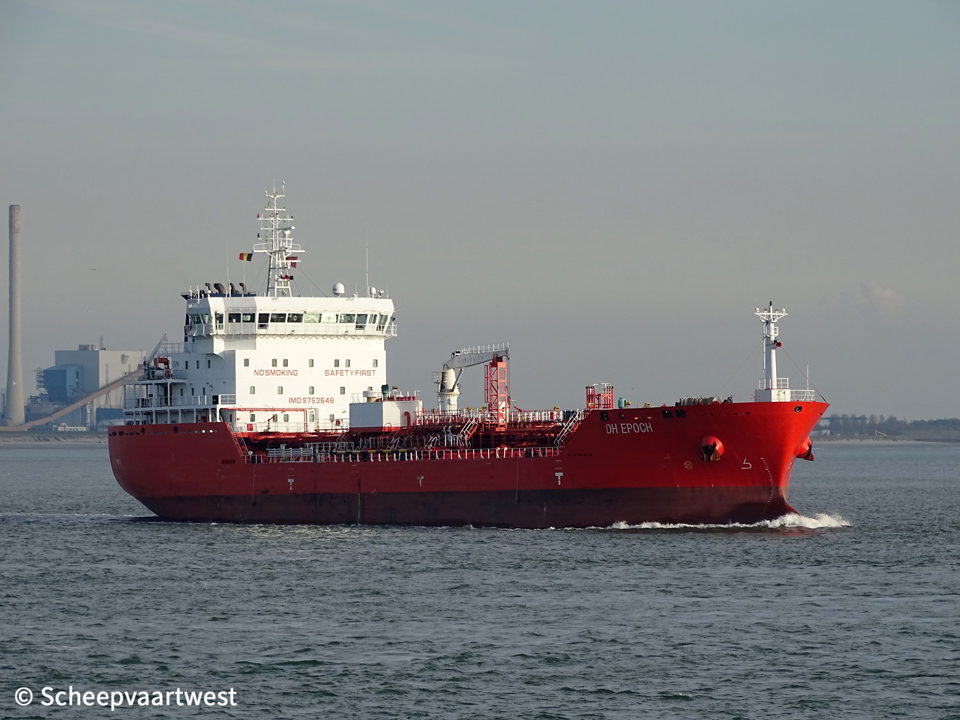

DH Epoch 02
Westerschelde 03/11/18













Name

DH EPOCH

Type

Chemical and oil product tanker

IMO-number

9753648

Call sign

VRRN4

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

8.860 t

DWT

13.204 t

NT

4.016 t

Length

119,99 m overall

113,80 m between perpendiculars

Breadth

22,00 m

Draught

Max: 8,50 m

Freeboard

2.911 mm

Depth

11,40 m moulded

Speed

13,2 knots

Built

2017

Keel laid

09/11/2015

Date of completion

01/12/2017

Builder

Zhe Jiang Xinle Ship Building Co.,Ltd.

China

Yard number

XL-161

Hull material

Steel

Hull type

Double hull

Watertight compartment

13

Continuous decks

1

Machinery aft

Main engine

1x MAN 6S35ME-B9.5 TIER II - 2 stroke 6 cylinder 350 x 1.550 mm combustion engine MCR 3.320 kW / 4.511 hp at 132,0 rpm

CSR: 2.988 kW at 119,0 rpm

Build: 23/03/2017

Builder: CSSC Marine Power Co., Ltd., Zhengjiang - China

Propellers

1x Screw solid pitch propeller - aft at 132 rpm

Pitch diameter: 4.700 / 3.500 mm

Rotation: Right

Boilers

1x CHO Saacke 98,10 m² - 9,0 bar

1x CHR Saacke 164,80 m² - 9,0 bar

Generators

3x Main diesel generatorsets 850 kVA - 680 kW - 978 hp

Emergency generator

1x Diesel generatorset 74 kVA - 139 kW - 189 hp

Bow thruster

600 kW

Number of cargo tanks

14

Cargo tank capacity

98%:13.835,66 m³

100%: 14.237,62 m³

Number of slop tanks

2

Pumps

10 x Electric Deepwell cargo pumps each 300 m³/h

4x Electric Deepwell cargo pumps 180 m³/h

2x Electric Deepwell cargo pumps each 100 m³/h1x 1x Deepwell ballast pump 400 m³/h

Tank capacities

HFO: 533,17 m³

Diesel oil: 90,60 m³

Fresh water: 208,07 m³

Cleaning water: 151,27 m³

Ballast water: 5.039,26 m³

Lifting equipment

1x Hose crane - SWL 10,0 t

Crew size

21

Operator

Shanghai Dingheng Shipping Co., Ltd.
No. 501 block A Changtai Plaza Lane 1 2889 Jinke road Pudong New Area Shanghai
China

Registered owner

Rocksolid Shipping Company Limited

Group

Dingheng group

Latest data adjustment

09 November 2019
