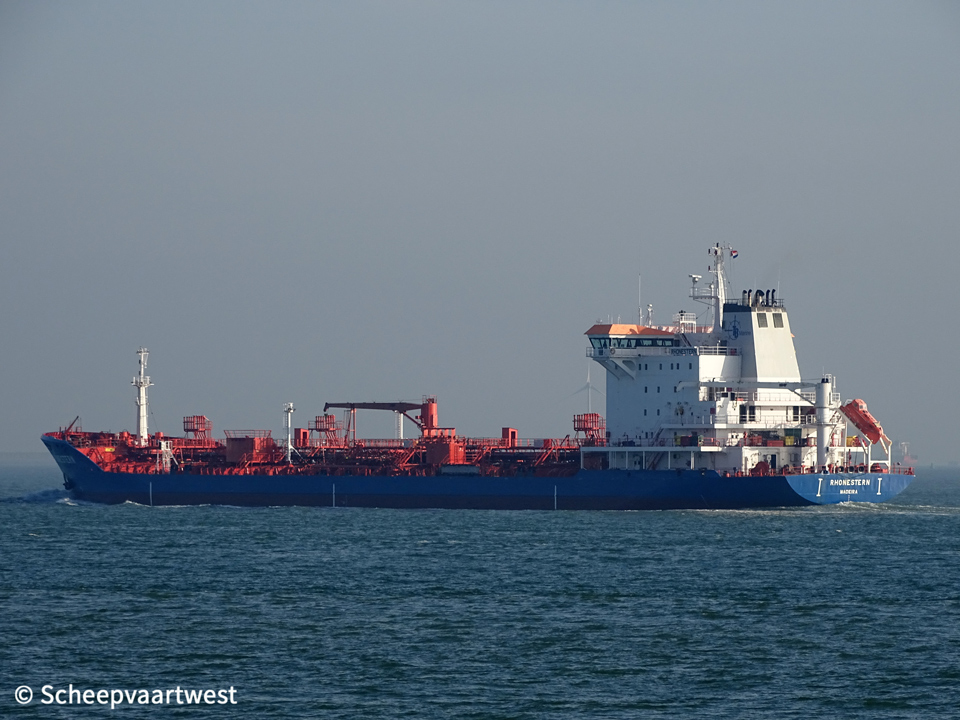

Rhonestern 01

Westerschelde 05 November 2018



Name

RHONESTERN

Type

Oil and chemical carrier

IMO-number

9183831

Call sign

CQLF

Flag

Portugal

Port of registry

Madeira

Previous flags

2000 - 2012 United Kingdom

GT

14.400 t registered

DWT

Summer: 21.869,7 t

NT

6.937 t registered

Panama: 12.078 t

Suez: 12.206,46 t

Length

162,00 m overall

155,00 m between perpendiculars

Breadth

28,00 m

Draught

Max: 8,80 m

Freeboard

3.214 mm

Depth

8,80 m

Speed

Max: 15,0 knots

Built

2000

Keel laid

11/01/2000

Launch date

13/05/2000

Date of completion

30/06/2000

Builder

Stocznia Gdynia S.A.
Poland

Yard number

8189/3

Hull material

High strength steel

Hull type

Double hull

Watertight bulkheads

15

Continuous decks

1

Main engine

1x H.Cegielski/MAN B&W 6S45 MC-C - 2 stroke 6 cylinder 450 x 2.000 mm combustion engine 7.860 kW / 10.690 hp at 129,0 rpm

Manufacturer: H. Cegielski Poznan SA

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler - 12,0 bar

1x Composite boiler - 12,0 bar

Manufacturer: Aalborg

Shaft generator

1x 900 kW

Generators

3x Main diesel generatorsets each 830 kW

Bow thruster

750 kW

Number of cargo tanks

15

Cargo tank capacity 100%

24.459,8 m³

Slop tank capacity

823 m³

Number of pumps

6x Cargo pumps each 550 m³/h

7x Cargo pumps each 350 m³/h

Number of tanks

Ballast: 16

Sludge: 13

Fuel oil: 8

Lubricating oil: 5

Diesel oil: 4

Fresh water: 4

Chain: 2

Tank capacities

Diesel oil: 145 m³

Freshwater: 420.9 m³

Fuel oil: 1.276,3 m³

Lube oil: 63,6 m³

Tank ballast: 9.542 m³

Lifting equipment

1x Crane - SWL 10,0 t

Crew size

24

Manager

TB Marine Shipmanagement
Paul-Dessau Str. 6
D-22761 Hamburg
Germany

Operator

MT Rhonestern Schifffahrtsgesellschaft mbH & Co. KG
c/o Tb Marine Shipmanagement GmbH & Co. KG
Paul-Dessau Str. 6
D-22761 Hamburg
Germany

Registered owner

MT Rhonestern Schifffahrtsgesellschaft MBH & Co. KG

Latest data adjustment

09 September 2019
